Sharp ER-A220 Service Manual

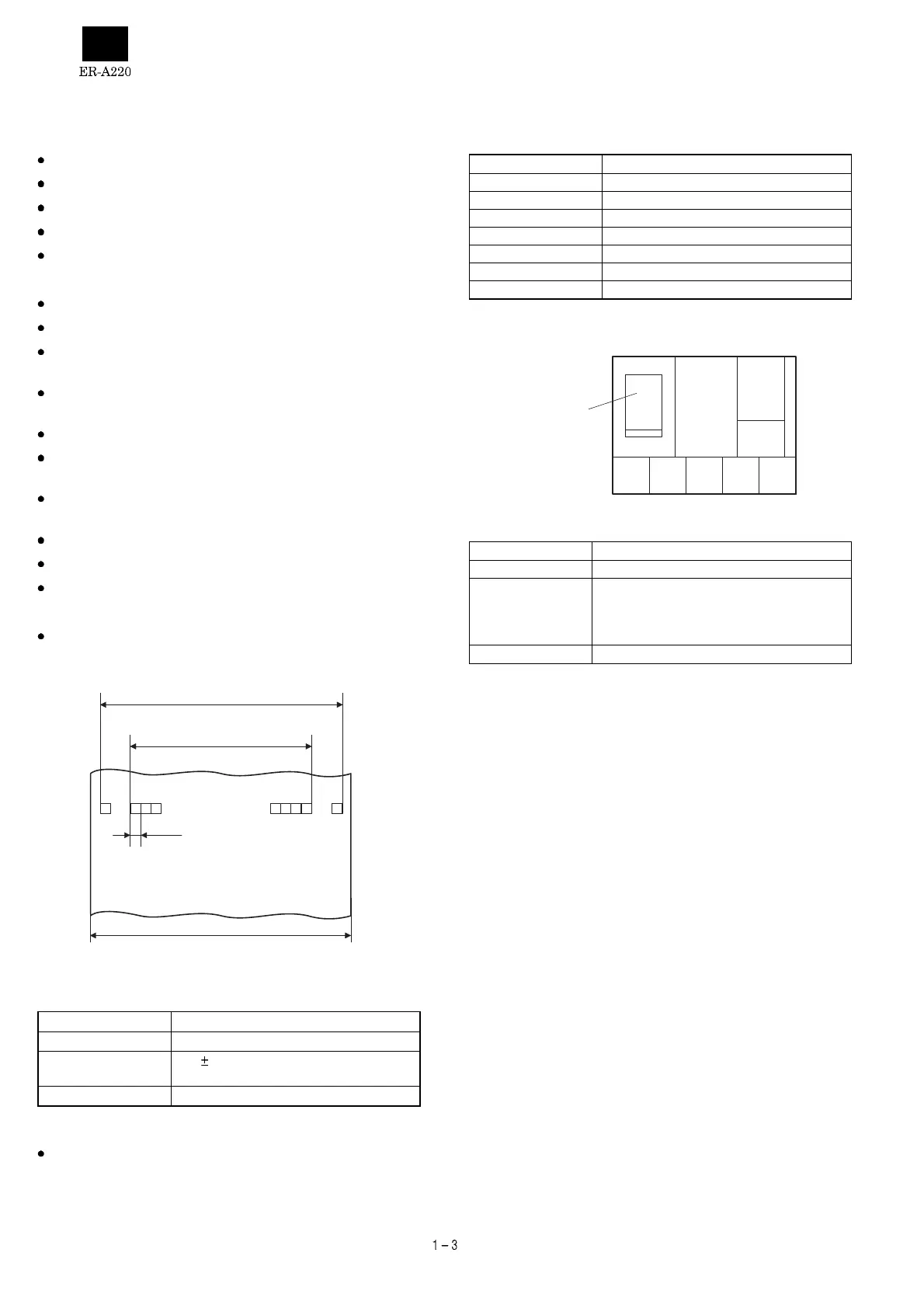

5. Specifications
1) Printer (LTP-1245)
No. of station: 1: Receipt or Journal
Validation: No
Printing system: Line thermal
No. of dot: 384 dots
Dot pitch: Horizontal: 0.125 mm
Vertical: 0.125 mm
Font: 10 dots (W) x 24 dots (H)
Printing capacity: Max. 30 characters
Character size: 1.125 mm (W) x 3 mm (H):
At 10 x 24 dots
Print pitch: Column distance :1.5 mm
Row distance :3.75 mm
Print speed: Approximate 40 mm/s
Paper feed speed
(Manual feed):
Approximate 40 mm/s
Approximate 30 mm/s
Reliability: Mechanism MCBF 4 million lines
used to high-quality thermal paper
Paper end sensor: Yes
Cutter: No
Near end sensor: No
Printing area:
2) Paper
Item Description
Name High-quality thermal paper
Roll dimension 57.5
0.5 mm in width
Max. 70 mm in diameter
Thickness 0.06 mm to 0.08 mm
3) Cutter
Method : Manual
6. Drawer: Not standard equipment
1) Drawer box
Item Description
Model name SK-360
Size 329(W) x 363(D) x 106(H)
Color Gray 368
Material Metal
Bell No
Release lever Standard equipment: Situated at the bottom
Drawer open sensor No
2) Money case
3) Lock
Item Description
Location of the lock Front
Method of locking To lock, inset the drawer lock key into the lock
and turn it 90 degrees counterclockwise.
To unlock, insert the drawer lock key
and turn it 90 degrees clockwise.
Key No. SK1-1
(Units : mm)
Number of thermal head heater elements 384 dots
0.125
57.5±0.5
(384 dots)
(358 dots max. 30 characters)
print ares
44.75
CCCCC
B
B
C
C
B
Bill separator

Sharp ER-A220 Specifications

General

Brand	Sharp
Model	ER-A220
Category	Cash Register
Language	English
