CHAPTER 6. KEY TOP KIT
1. Outline
The ER-A320 employs the following key top (option) to allow additional
installation of the key top and change in the key layout.
MODEL NAME DESCRIPTION
ER-11KT7 1 x 1 Key top
ER-12KT7 1 x 2 Key top
ER-22KT7 2 x 2 Key top
ER-11DK7G 1 x 1 Dummy key
ER-51DK7G 5 x 1 Dummy key

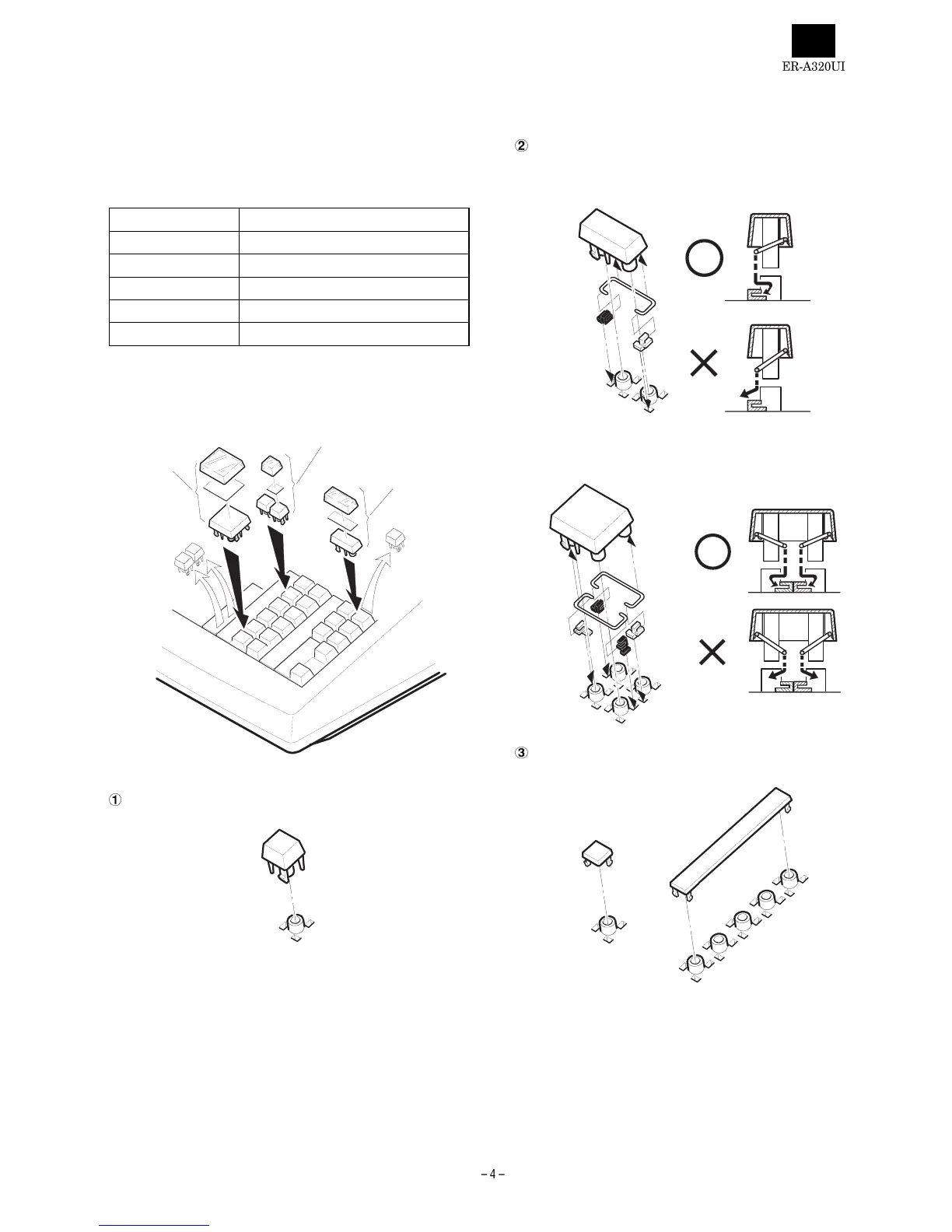

2. Installation procedure
ER-11KT7
ER-12KT7, ER-22KT7
Note: There are black spacers and white spacers. Refer to the
figure before for attaching them.
· Attach the black spacer to the left lower side, and the white spacer
to the right lower side.
ER-11DK7G, ER-51DK7G
ER-12KT7
ER-11KT7
ER-22KT7
