ER-A520U/ER-A530U SPECIFICATIONS
– 1 –

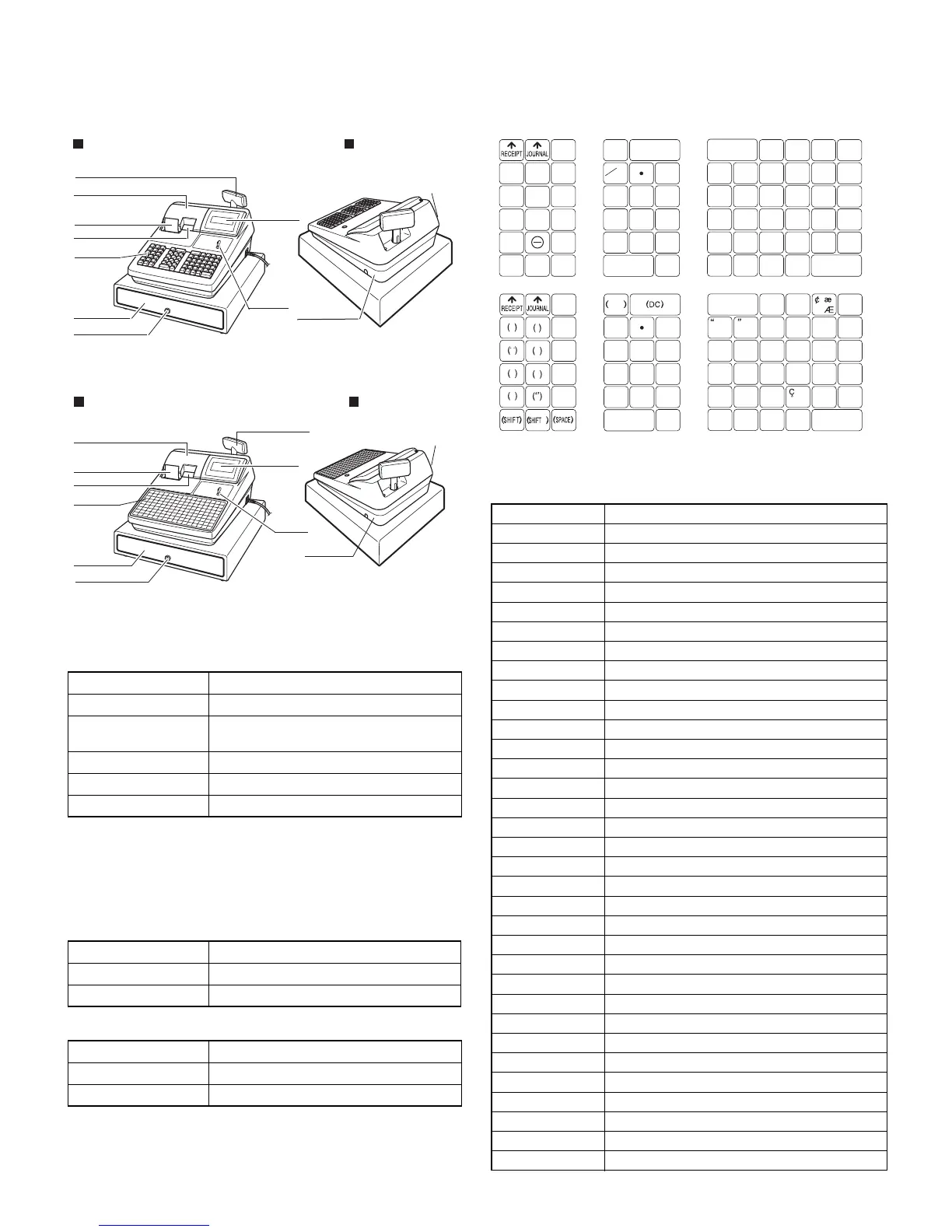

CHAPTER 1. SPECIFICATIONS
1. APPEARANCE
ER-A520
ER-A530
2. RATING
3. KEYBOARD
3-1. KEYBOARD LAYOUT
ER-A520
ER-A530
3-2. KEY LAYOUT
ER-A520 KEYLAYOUT
Note: All the keys except the receipt paper feed and journal paper feed
keys can be re-positioned.
■ Key names
Model ER-A520/530
Weight 31.7lbs (14.4kg)
Dimensions 421 (W) x 427 (D) x 297 (H) mm
16.6 (W) x 16.8 (D) x 11.7 (H) inch
Power source 120V
m
10%, AC 60Hz
Power consumption Stand-by 11W, Operating 47W (max.)
Working temperature 0°C~40°C (32°F to 104°F)
Type Normal keyboard
Key stroke 3.5
m
0.5 mm
Key pitch 19 (W) x 19 (H) mm
Type Flat key
Key stroke 0.8
m
0.2 mm
Key pitch 18 (W) x 15 (H) mm
Front view
Rear view
Printer cover
Receipt paper
Journal window
Keyboard
Drawer
Drawer lock
Customer display (Pop-up type)
Operator
display
Mode
switch
Printer
cover lock
(left side)
Rear cover
Front view Rear view
Printer cover
Receipt paper
Journal window
Keyboard
Drawer
Drawer lock
Customer display
(Pop-up type)
Operator
display
Mode
switch
Printer
cover loc
k
(left side)
Rear cover
2
RECEIPT Receipt paper feed key
2
JOURNAL Journal paper feed key
[0]~[9], [00] Numeric keys
[ • ] Decimal point key
CL Clear key
@/FOR Multiplication key
RFND Refund key
VOID Void key
AMT Amount entry key
CASH# Cashier code entry key
PLU/UPC PLU/UPC key
INQ PLU/UPC inquiry key
PRICE CHANGE UPC price change key
-
Discount 1 key
%1, %2 Percent 1 and 2 keys
NC New check key
PBLU Previous balance key
FINAL Final key
NS No-sale key
TAX SHIFT TAX 1 shift key
TAX Manual tax key
MDSE SBTL Merchandise subtotal key
1 ~ 20 Department keys
AUTO1~AUTO2 Automatic sequencing 1 and 2 keys
RA Received-on-account 1 key
PO Paid-out 1 key
FS SHIFT Food stamp shift key
FS TEND Food stamp tender key
CH1, CH2 Charge 1and 2 keys
CONV Currency conversion key
CHK Check 1 key
SBTL Subtotal key
CA/AT Cash/amount tendered key
RCPT Receipt print key
RCPT
AMT
5
INQ
SBTL
7
4
1
0
00
4
3
2
1
10
9
8
7
6
15
14
13
12
11
20
19
18
17
16
NS
CA/AT
2
56
89
PLU/UPC
3
#/TM
VOID
RFND
TAX
TAX
SHIFT
@
FOR
SLIP
PBLU
CONV
FINAL
CASH#
CL
PRICE
CHANGE
FS
SHIFT
AUTO
1
MDSE
SBTL
CHK
CH2
CH1
FS
TEND
AUTO
2
%2
%1
PO
RA
7
4
1
0
00
2
-2
56
89
3
@/FOR
CL
E
D
C
B
A
J
I
H
G
F
K
S
Q
W
V
RZ
Y
X
O
N
M
L
T
U
%$#
&
(/@*')
!.,;:
=-+
><
?
P
NC
O
`
`
~
^
V
NUM
£
Pt
(Back
Space)
■ TEXT PRESET KEY LAYOUT
■ STANDARD KEY LAYOUT
