ER-A520U/ER-A530U SPECIFICATIONS
– 4 –

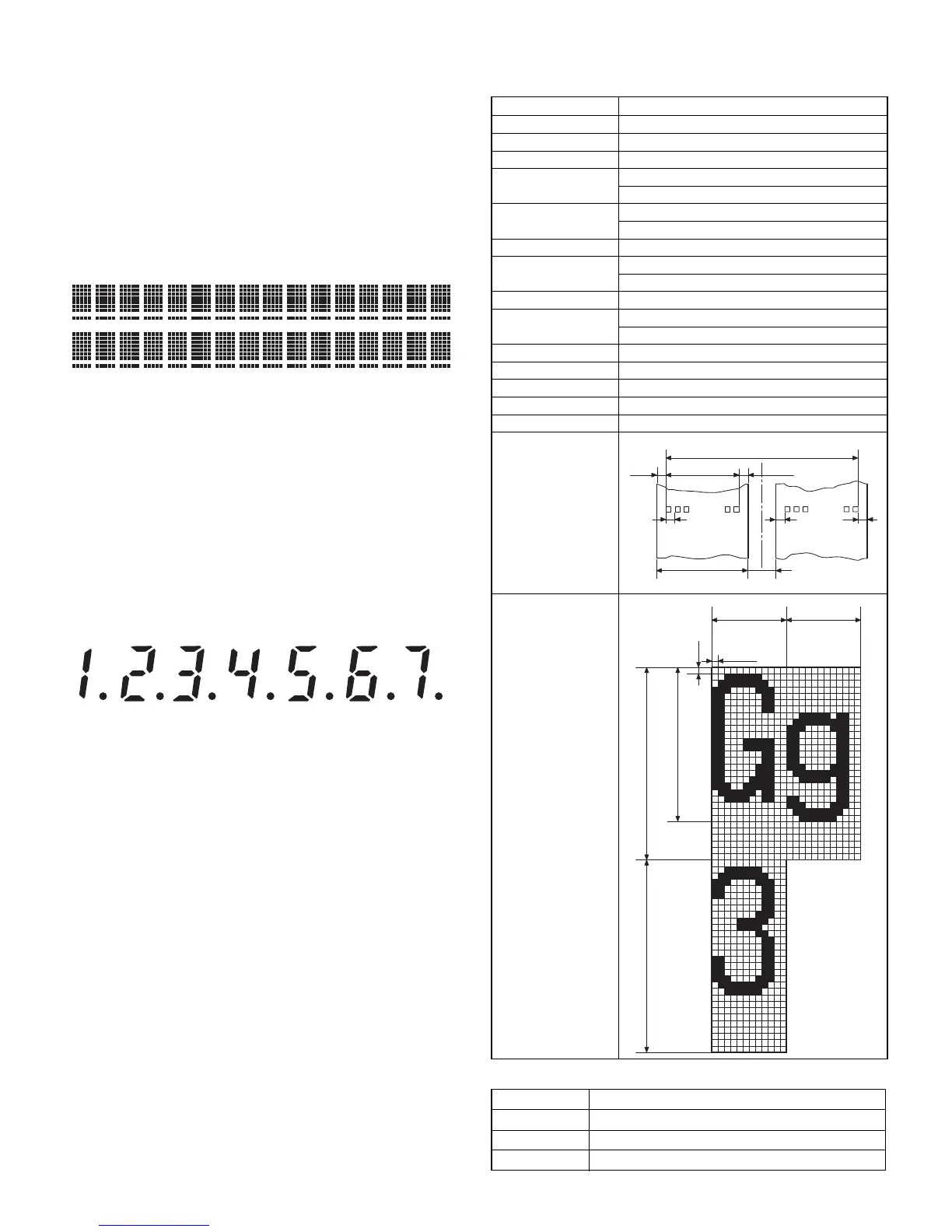

5. DISPLAY
5-1. OPERATOR DISPLAY
Layout:
5-2. CUSTOMER DISPLAY
Layout:
6. PRINTER
1) PRINTER (PR-58HM)
2) PAPER
Display device: LCD
Number of lines: 2 lines
Number of positions: 16 positions
Color of display: Yellow / Green
Character font: 5 x 7 dot
Character size: 4.84 (W) x 8.06 (H) mm
Display device: LED
Number of lines: 1 line
Number of positions: 7 positions
Color of display: Yellow / Green
Style: Pop up type
Character form: 7 segment + Dp
Character size: 14.2mm (H) x 7.9mm (W)
Item Description
No. of station 2: Receipt and Journal
Validation No
Printing system Line thermal
No. of dot Receipt: 360 dots
Journal 360 dots
Dot pitch Horizontal: 0.125mm
Vertical: 0.125mm
Font 10 dots (W) x 24 dots (H)
Printing capacity Receipt: Max. 30 characters
Journal: Max. 30 characters
Character size
1.25 mm (W) x 3.0 mm (H): At 10 x 24 dots
Print pitch
Column distance:
1.5 mm
Row distance: 3.75 mm
Paper feed speed Approximate 65 mm/s
Reliability Mechanism: MCBF 5milion lines
Paper end sensor Yes (Receipt and Journal)
Cutter Manual
Paper near end sensor No
Printing area
Printing format
Item Description
Name Heat-quality paper
Roll dimension 57.5
m
0.5 mm in width
Thickness 0.06 mm to 0.08 mm
0.125
(7.0)
(7.0) (5.5)
360dots
(45)
57.5
±
0.5
5.0
(5.5)
UNIT: mm
106(848dots)
1.5 (12dots) 1.5 (12dots)
0.125
0.125
3.0 (24dots)
3.75 (30dots)
3.75 (30dots)
UNIT: mm
12 x 24
font
