Sharp ES-FW105D7PS

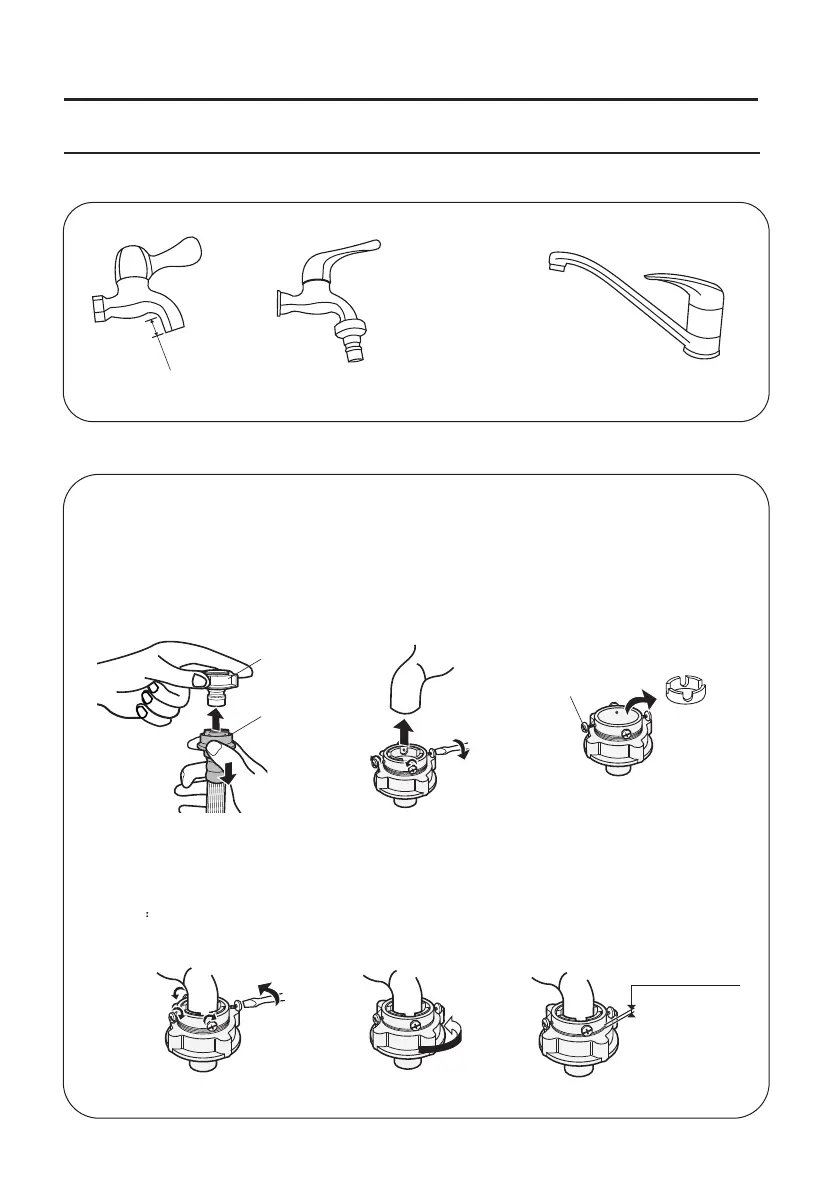

Water inlet installation
>10mm
Tap selection
Suitable tap
Not suitable tap
The front end should be longer than 10mm. The tap exit end face
should be flat and smooth, if not file it to avoid leakage.
Inlet hose
Inlet hose connector
Slider
Screwdriver
Bolt
Bushing
Before twisting,about 4mm
After twisting,less 2mm
Nut
Illustration 1 Illustration 2 Illustration3
Illustration 6Illustration 5Illustration 4
pat eht ot rotcennoc esoh telni eht tcennoC
1. Press down the slider and remove the inlet hose connector from the inlet hose ,
like below illustration 1.
2. Loosen the four bolts on the inlet hose connector till the tap can be accessed, then
set the inlet hose connector in the tap, see illustration 2.(if the tap caliber is too large and
could not set the inlet hose end, unscrew the four
bolts and take out the bushing, tap exit
end must be flat, otherwise it will leak, see illustration 3)
3. Fasten the four bolts in the inlet hose connector evenly, see illustration 4.
4. Twist the fastening nut as the illustration ,see illustration 5.
Remark before twisting the nut, the threading is about 4mm above the upper surface of the nut, after twisting,
the threading is less than 2mm above the upper surface of the nut, see illustration 6.
Installation
14
