Sharp FO-77

FO-77U
UX-66U

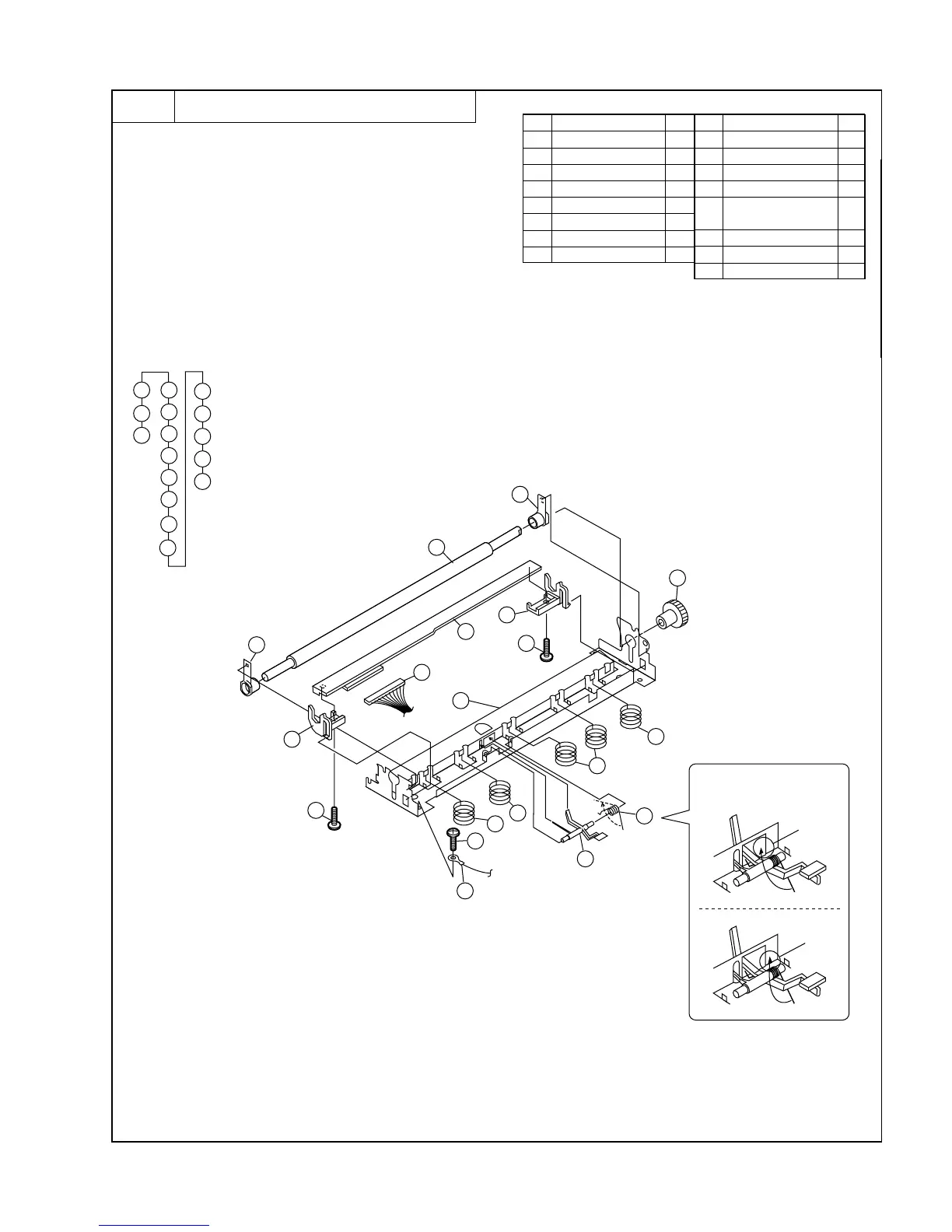

Fig. 8
3 – 10
Head frame and thermal head
8
Parts list (Fig. 8)
No. Part name Q’ty No. Part name Q’ty
1 Platen gear 1
2 Platen bearing 2
3 Platen roller 1
4 Connector 1
5 Screw (3×6) 1
6 Head earth cable 1
7 Screw (3×6) 1
8 Head holder, left 1
9 Screw (3×6) 1
10 Head holder, right 1
11 Thermal head 1
12 Document sensor lever 1
13 Document sensor lever 1
spring
14 Head spring 2 2
15 Head spring 1 3
16 Head frame 1
12
12
13
13
14
14
14
15
15
15
11
11
16
16
2
2
2
1
1
3
3
4
4
5
6
7
7
8
8
9
9
6
5
10
10
Fix position of Document
Sensor lever spring
OK
NG
