Sharp FO-77

NO.
PARTS CODE
PRICE
RANK
NEW
MARK
PA R T
RANK
DESCRIPTION
FO-77U
UX-66U
– 5 –
[5] Drive unit
19
1
2
3
18
5
6
7
8
9
9
11
10
12
12
9
12
9
12
13
13
13
15
15
16
17
4
20
21
21
22
14
B3

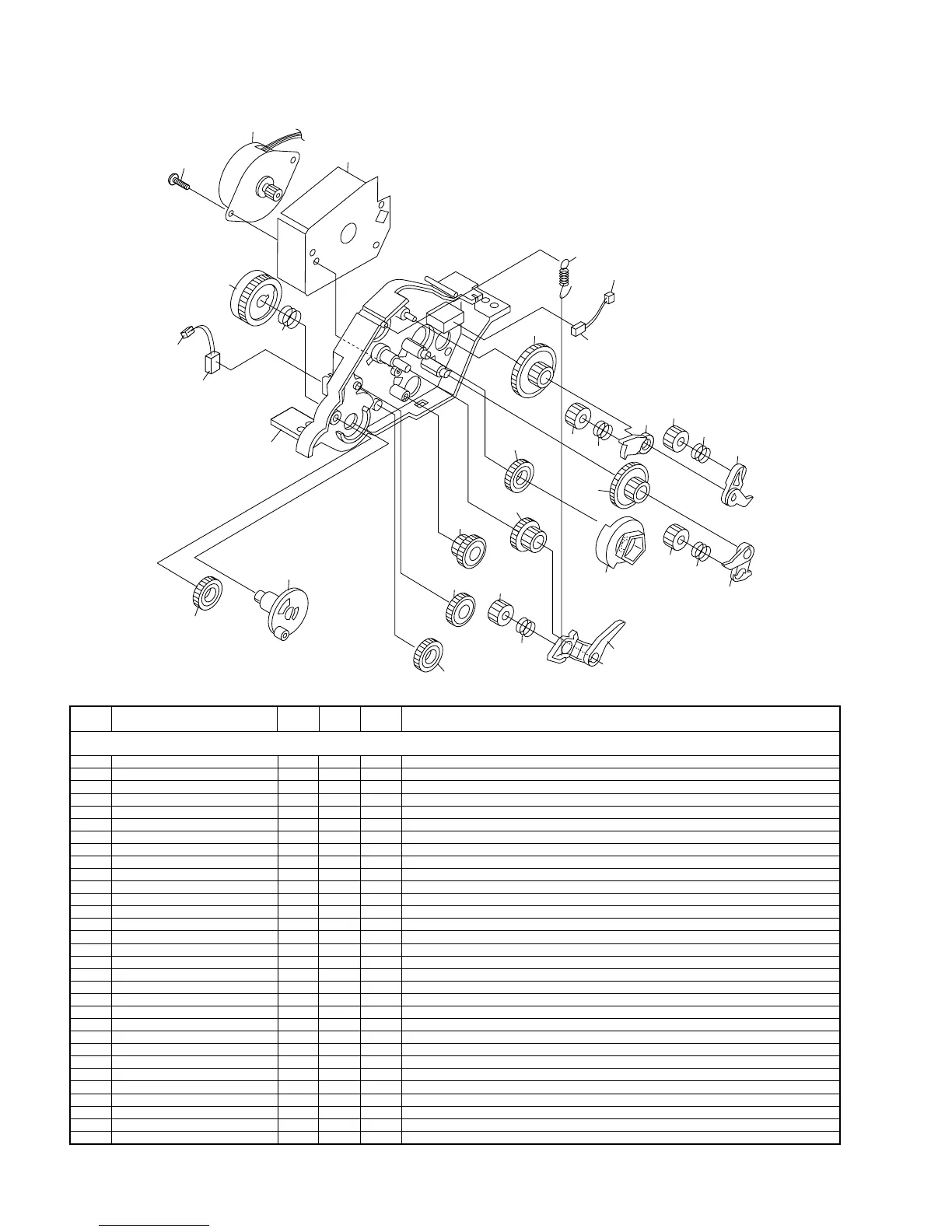

[5] Drive unit
1 LFRM-2206XHZZ AF N C Drive unit frame
2 LPLTM3049XHZZ AD N C Motor plate
3 LPLTP3050XHZZ AB N C Cutter plate
4 MCAMP2027XHZZ AC N C Cam
5 MLEVP2311XHZZ AB N C Planet lever A
6 MLEVP2312XHZZ AB N C Planet lever B
7 MLEVP2313XHZZ AC N C Planet lever C
8 MLEVP2314XHZZ AB N C Mode lever
9 MSPRC2735XHZZ AC C Planet gear spring
10 MSPRC3110XHZZ AB N C Cam spring
11 MSPRC3127XHZZ AB N C Cutter gear spring
12 NGERH2278XHZZ AC C Planet gear
13 NGERH2379XHZZ AC C Idler gear,25Z
14 NGERH2380XHZZ AC C Reduction gear,17/36Z
15 NGERH2391XHZZ AC C Reduction gear,17/30Z
16 NGERH2451XHZZ AB C Idler gear,30Z
17 NGERH2475XHZZ AB N C Reduction gear,17/43Z
18 NGERH2476XHZZ AB N C Cutter gear
19 QCNW-207AXHZZ AC N C Cutter cable
20 QCNW-4933XHZZ AC C Cam switch cable
21 QSW-F2224SCZZ AE B Cam switch
22 RMOTZ2148XHZZ AT N B Motor
B3 XEBSD30P08000 AA C Screw(3x8)
