Part Names of the Main Unit

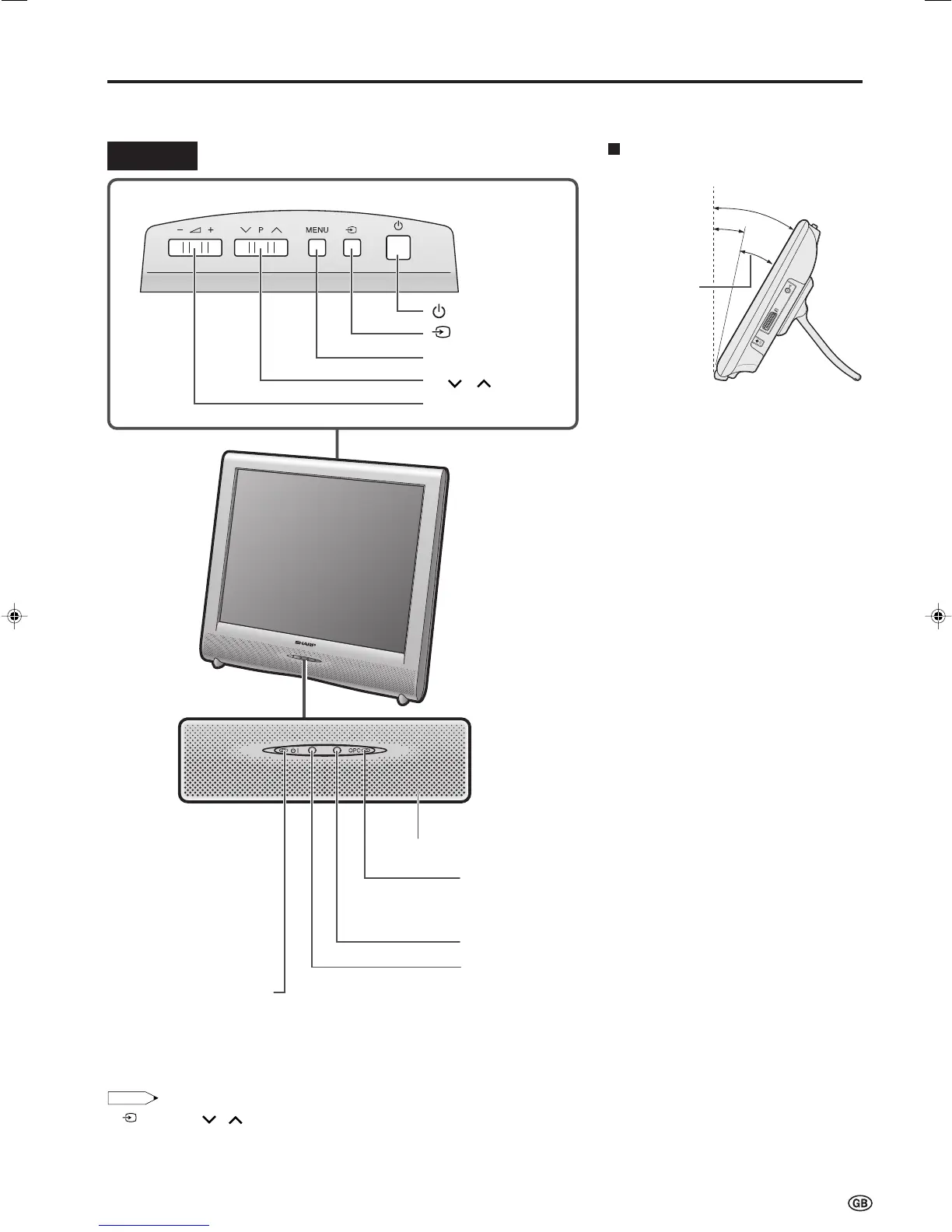

Controls
• (Input), P ( )/( )(Channel), i (–)/(+) (Volume) and MENU on the control panel of the main unit have the same functions as
the same buttons on the remote control (see page 12). Fundamentally, this operation manual provides a description based on operation
using the remote control.
OPC sensor
Remote sensor
OPC (Optical Picture Control) indicator
The OPC indicator lights up green when the “Backlight” is set
to “Auto (OPC)”. (See page 21.)
STANDBY/ON indicator
STANDBY/ON indicator lights up green when the power is on, and red when in
the standby mode (the indicator will not light when the main power is off).
The screen angle can be tilted backwards
between 12 and 30 degrees. (It cannot be
set to vertical.) When changing the angle,
make sure to hold the stand and adjust the
screen to the best viewable angle.
(MAIN POWER)
Upper control panel
(Input)
MENU
P ( )/( ) (Channel)
i (–)/(+) (Volume)
How to adjust the angle
12°
30°
Adjustable range
Speaker
The examples used throughout this manual are based on the LC-20SH1E model.
