2.7. IC704 (VHIMR4030++-1)

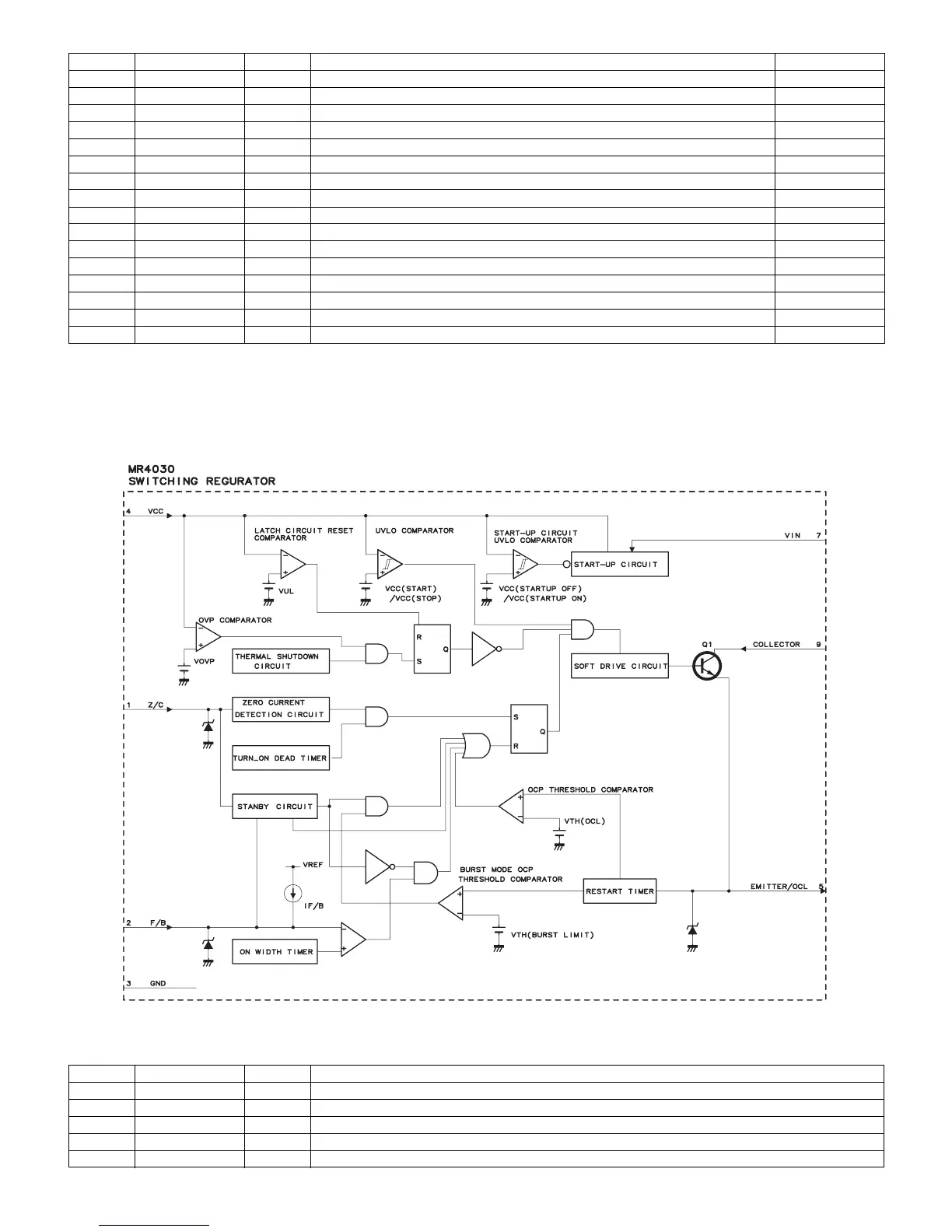

2.7.1 Block Diagram
2.7.2 Pin Connections and short description
85 GND* – N.C. N.C
86 GND* – N.C. N.C
87 GND* – N.C. N.C
88 GND* – N.C. N.C
89 GND* – N.C. N.C
90 GND* – N.C. N.C
91 EXP [4] O Outport [4] PCON2 (EP4)
92 GND* – N.C. N.C
93 GNDIO – Ground. Ground.
94 VCCIO2 – VCC (3.3V) FPGA_VCC
95 GND* – N.C. N.C
96 GND* – N.C. N.C
97 EXP [2] O Outport [2] PCON1 (EP2)
98 GND* – N.C N.C
99 GND* – N.C. N.C
100 EXP [0] O Outport [0] S_MUTE
Pin No. Pin Name I/O Pin Function
1 Z/C I Zero Current Detection Terminal.
2 F/B I Feed Back terminal.
3 GND – Ground Terminal.
4 VCC – VCC Terminal.
5 Emitter/OCL O Emitter/OCL terminal.
Pin No. Pin Name I/O Pin Function Sheet Name
