8-2. Outline of white balance adjustment
Multiple point adjustment is available to reduce colour differences among gradations.
Up to 6-point adjustment is possible; the number of adjustment points is variable.
[Multiple point adjustment]
When adjusting less than 6 points, set both input and output values of unused gradations (from the smallest number
of gradations) to 0.
The gamma table of 256 gradations is created by connecting gradations. 0 and 1 gradation are simply connected
with a straight line.
A straight line from 6 to 255 gradations is created by using the gradient of the line between 5 and 6 gradations.
` Note
After adjustment, select MGAMMA_WRITE to write the monitor gamma table.
gradation 1
gradation 2
gradation 3
gradation 4
gradation 5
gradation 6
gradation 1
gradation 2
gradation 3
gradation 4
gradation 5
gradation 6

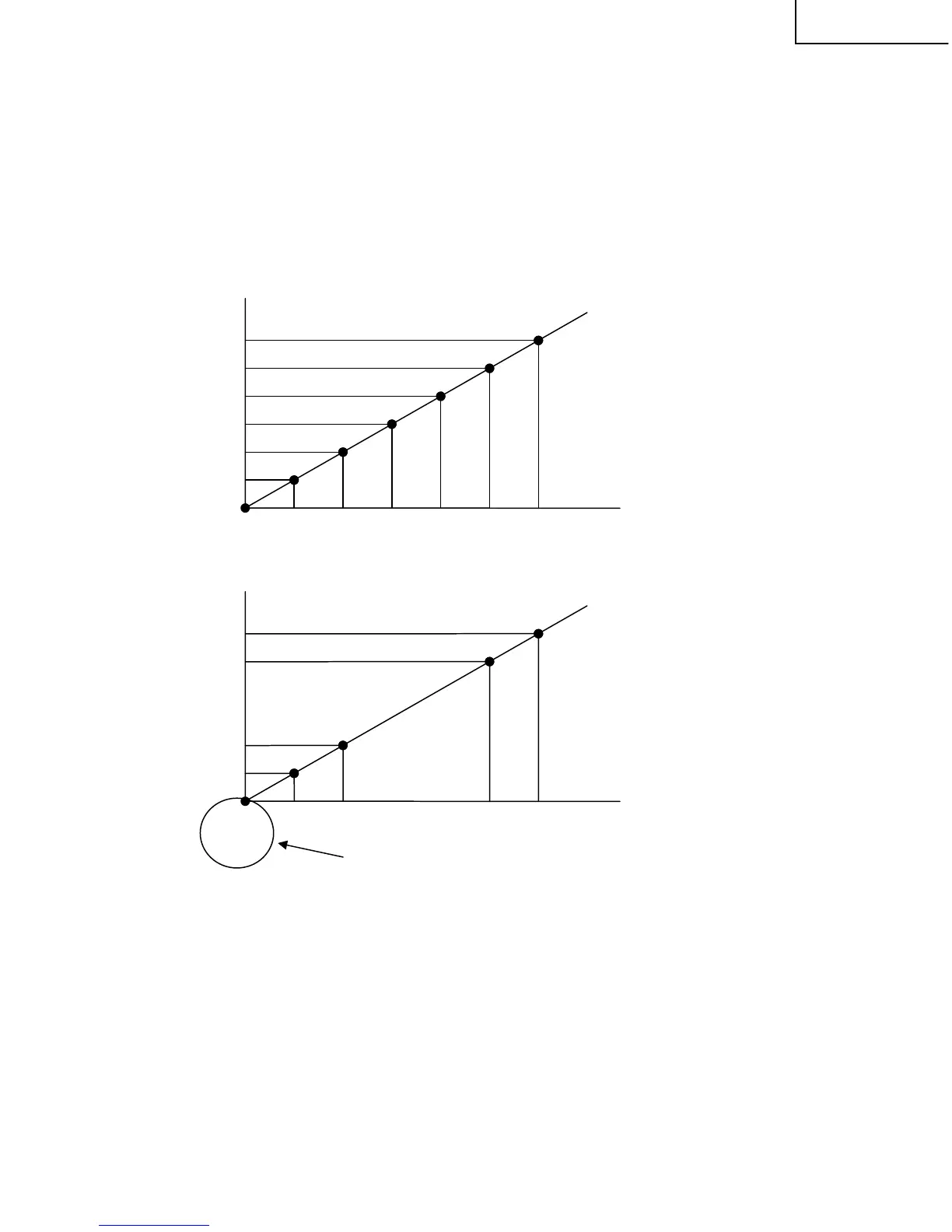

6-point adjustment
4-point adjustment
Both input and output values of 1 and 2 gradations are set to 0.
Accordingly the gamma table for 4-point adjustment is artificially created.
