Sharp LC-32D44E User Manual

LC32D44E/S/RU-BK/GY (1st Eddition)
2 – 2
3. Remove the 3 lock screws , 2 lock screws , 1 lock screws and detach the Main Shield.
4. Disconnect all the connectors from all the PWBs.
5. Remove the KEY Unit Ass'y .
5A 5B 6
7
[LB]
[PD]
[LB]
[PD]
[KM]
[SP]
[RA]
[FPC]
[KM]

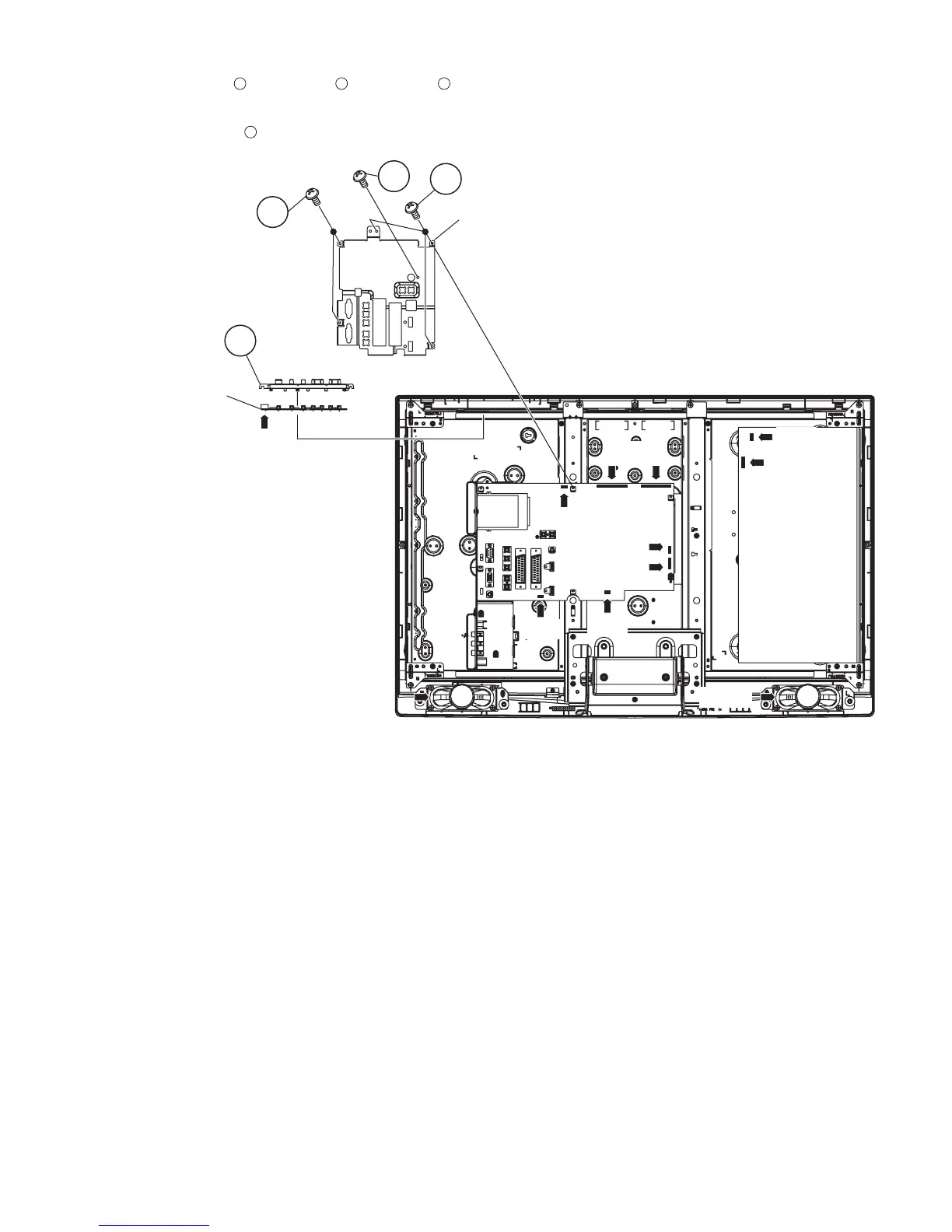

Main Shield
KEY Unit
Operation Button
SP-R
5A
5B
6
7
SP-L
