LC32D44E/S/RU-BK/GY (1st Eddition)
3 – 21

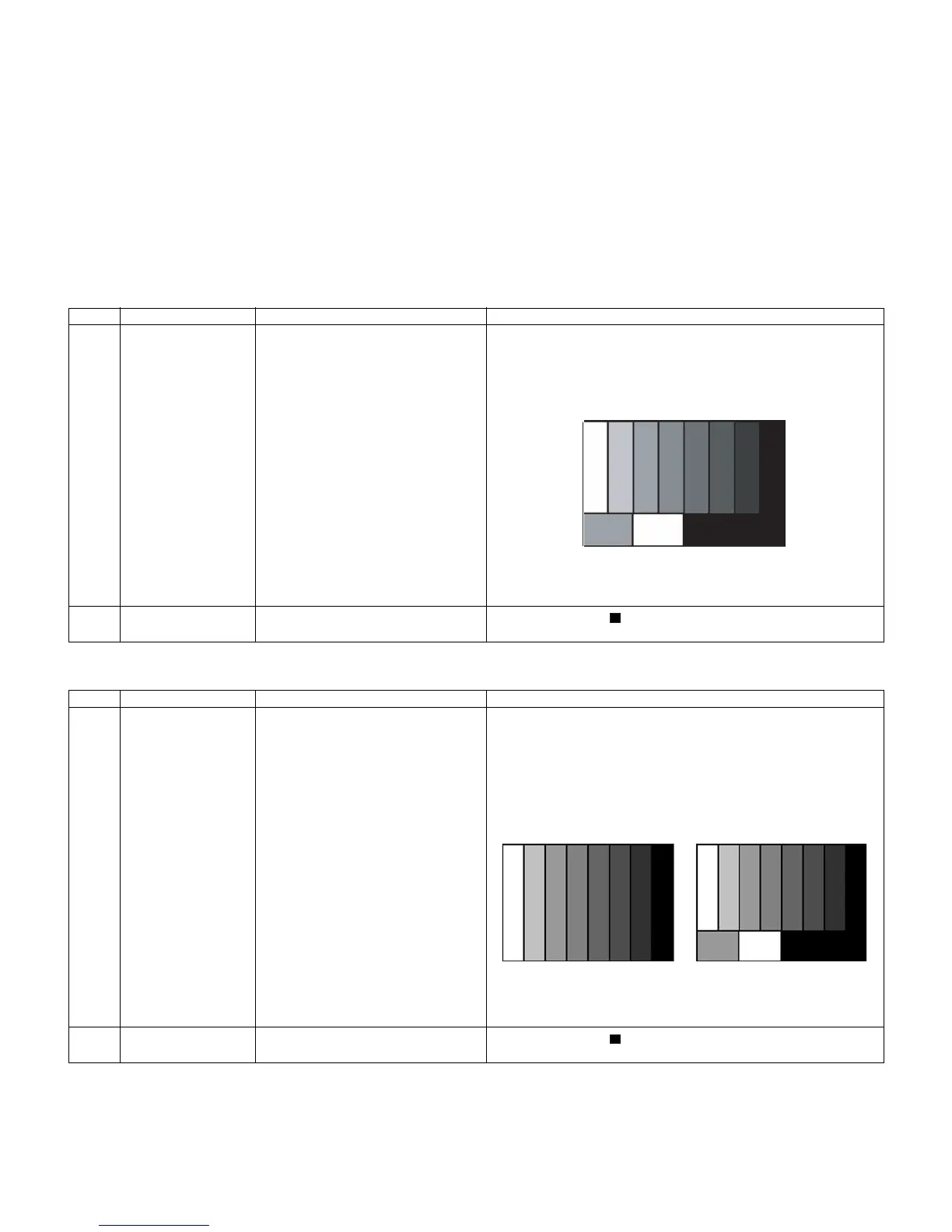

[7] Video signal adjustment procedure
* The adjustment process mode menu is listed in Section 5.
1. Signal check
1. Signal generator level adjustment check (Adjustment to the specified level)
2. Entering the adjustment process mode
1. Enter the adjustment process mode according to Section 3.
3. RF AGC adjustment
4. PAL signal & tuner adjustment
• Composite signal PAL : 0.7Vp-p ±0.02Vp-p (Pedestal to white level)
• 15K component signal (50 Hz) : Y level 0.7Vp-p ±0.02Vp-p (Pedestal to white level)
PB, PR level 0.7Vp-p ±0.02Vp-p
Adjustment point Adjustment Conditions Adjustment procedure
1 Setting [Signal]
PAL
Sprit Field Colour Bar
RF signal UV
[Terminal]
TUNER
• Feed the PAL Sprit Field colour bar signal to TUNER.
Signal level: 55 dB µV +1dB, -1dB (75Ω LOAD)
2 Auto adjustment
performance
Adjustment process
Page3
Bring the cursor on [ RF AGC ADJ] and press [OK]
[***OK***] appears when finished.
Adjustment point Adjustment Conditions Adjustment procedure
1 Setting [Signal]
PAL
Full Field Colour Bar
Composite or RF signal
[Terminal]
EXT1 SCART IN
TUNER
• Feed the PAL full field colour bar signal (75% colour saturation) to
EXT1 SCART IN.
• Feed the RF signal (PAL colour bar) to TUNER.
• Make sure the PAL colour bar pattern has the sync level of 7:3 with
the picture level.
2 Auto adjustment
performance
Adjustment process
Page3
Bring the cursor on [ PAL + TUNER ADJ] and press [OK]
[***OK***] appears when finished.
[E-12CH]
㸡100% white
㸡100% white
㪲VIDEO IN SIGNAL]
㸡100% white
[RF Signal]
To Next Page
