Sharp LC-32D44E - TV (Front View); TV (Rear View)

LC32D44E/S/RU-BK/GY (1st Eddition)
1 – 3

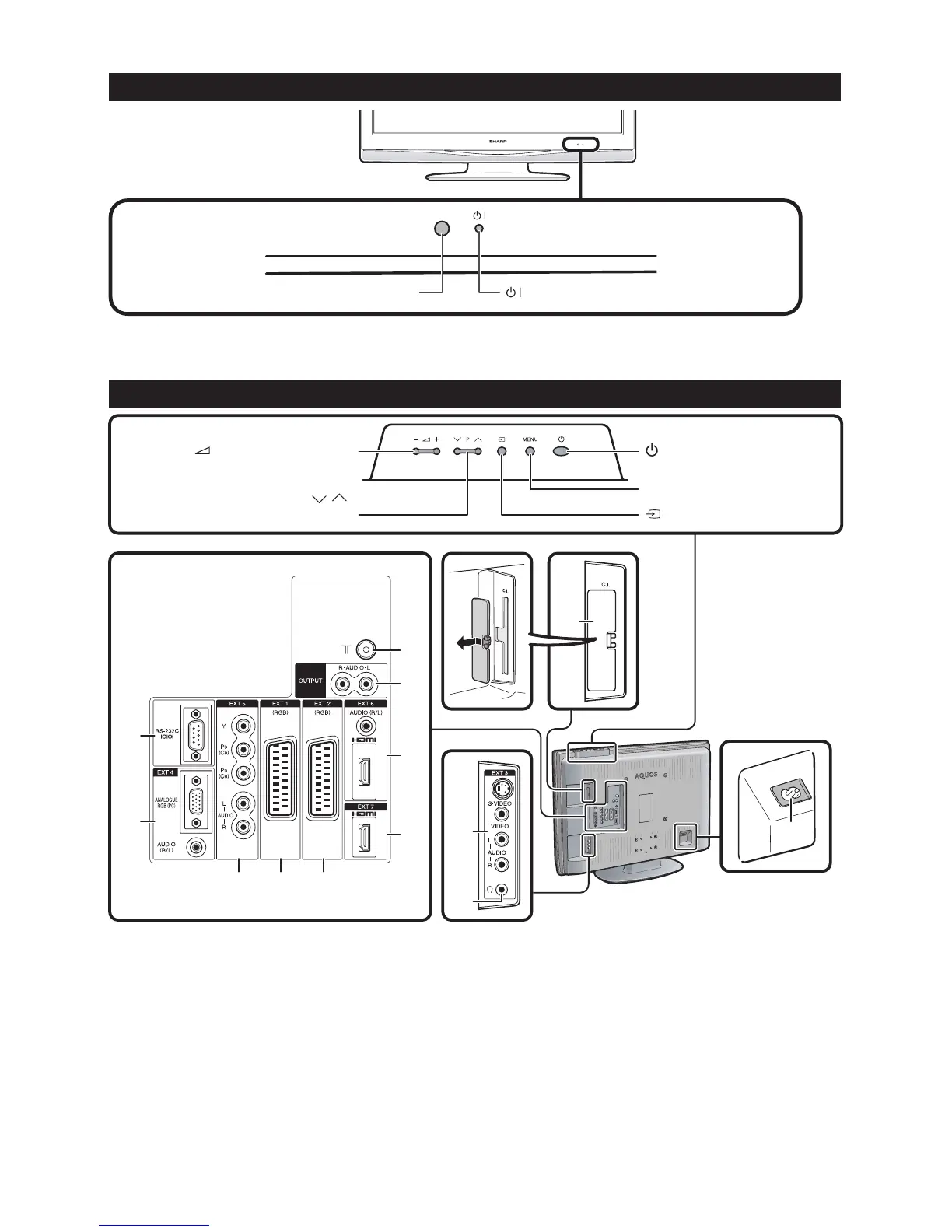

TV (Front view)
TV (Rear view)
10
1
2
6
7
8
9
3
4 5
13
11
12
NOTE
• Only if you use an active terrestrial antenna, select “On (5V)” under “Supply Voltage”.
Remote control sensor
(Standby/On) indicator
(Power button)
(Input button)
(
-/+) (Volume buttons)
P (/)
(Programme [channel] buttons)
MENU button
1 RS-232C terminal
2 EXT 4 (ANALOGUE RGB/AUDIO)
terminals
3 EXT 5 (COMPONENT) terminals
4 EXT 1 (RGB) terminal
5 EXT 2 (RGB) terminal
6 Antenna input terminal
(DVB-T 5V=/80 mA)
7 OUTPUT (AUDIO) terminals
8 EXT 6 (HDMI/AUDIO) terminals
9 EXT 7 (HDMI) terminal
10 COMMON INTERFACE slot
11 EXT 3 terminals
12 Headphone jack
13 AC INPUT terminal
