Sharp LC-32D44E - Page 14

LC32D44E/S/RU-BK/GY (1st Eddition)
2 – 5

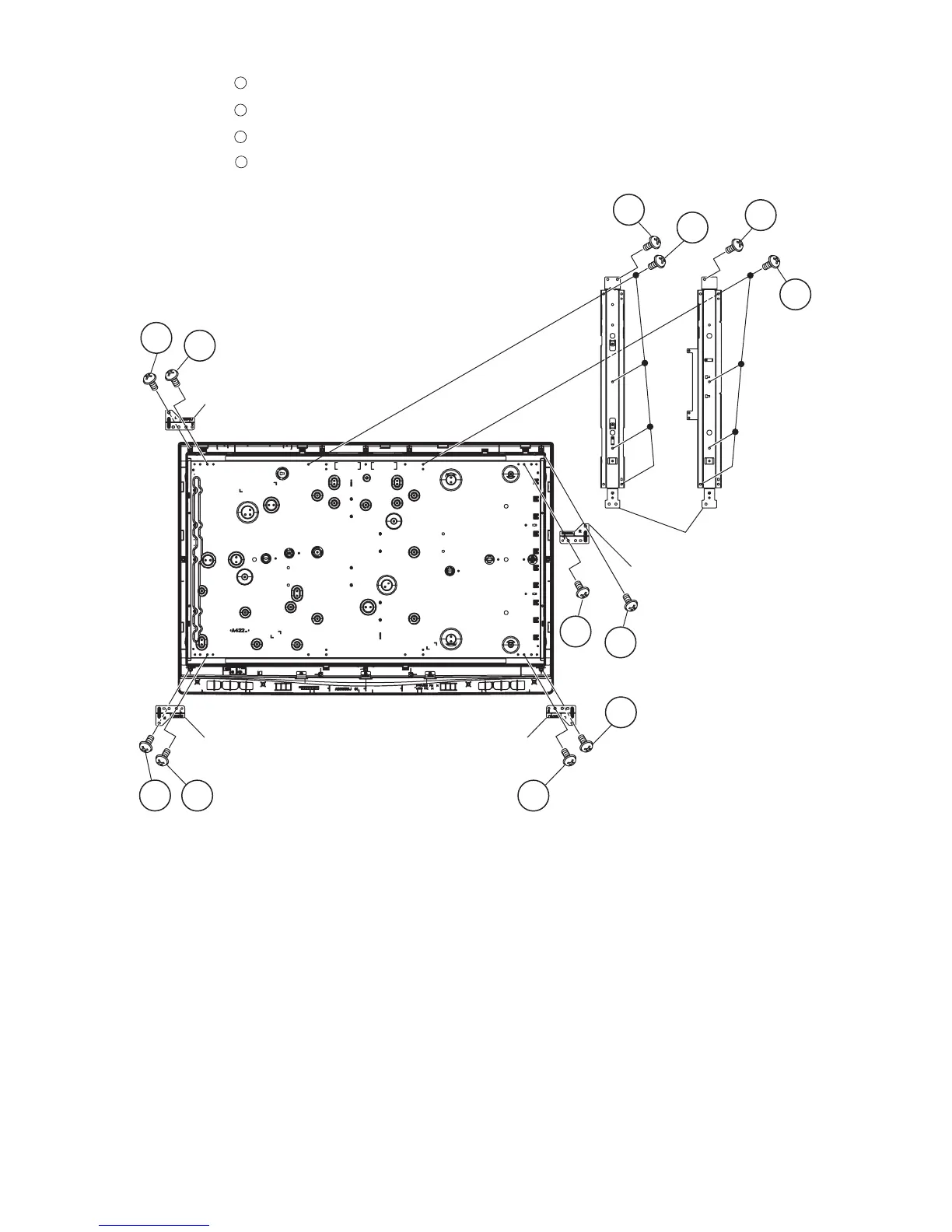

13.Remove the 6 lock screws and detach the LCD Panel Module.
14.Remove the 2 lock screws and detach the LCD Fix Angle-A.
15.Remove the 2 lock screws and detach the LCD Fix Angle-B.
16.Remove the 8 lock screws and detach the Panel Fix Angle.
16
17
18
19
LCD Fix Angle-A
LCD Fix Angle-A
Panel Fix Angle
17
16
19
19
16
16
LCD Fix Angle-B
LCD Fix Angle-B
18
16
17
16
18
16
