LC-32D44U
21
[6] NOTE (Conductive cloth tape/Gasket)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[6] NOTE (Conductive cloth tape/Gasket)
1 PSLDMB359WJZZ AG N X Conductive Cloth Tape
2 PSLDMB360WJZZ AE N X Conductive Cloth Tape, x2
3 QEARZA123WJZZ AD X Conductive Cloth Tape, x3
4 PSLDMB361WJZZ AC N X Conductive Cloth Tape, x2
5 PSLDMB362WJZZ AC N X Conductive Cloth Tape, x2
6 PMLT-A533WJZZ AD N X Gasket
7 PMLT-A534WJZZ AC N X Gasket
8 ZSLCN-098P2KE BH J One 150g tube
Attention
When peeling off the conductive cloth tape/gasket for repair, please use the NEW conductive cloth tape/gasket. (When using
the conductive cloth tape/gasket again, keep in mind the decrease in the adhesive power of the conductive cloth tape/gasket.
The purpose of using the NEW conductive cloth tape/gasket is to prevent the conductive cloth tape/gasket from peeling off.)
Added parts
Conductive Cloth Tape
˴Parts code: ԘPSLDMB359WJZZ Q'ty 1 ԙPSLDMB360WJZZ Q'ty 2
ԚQEARZA123WJZZ Q'ty 3 ԛPSLDMB361WJZZ Q'ty 2
ԜPSLDMB362WJZZ Q'ty 2
Gasket
˴Parts code: ԝPMLT-A533WJZZ Q'ty 1 ԞPMLT-A534WJZZ Q'ty 1
Bond
˴Parts code: ԟZSLCN-098P2KE (One 150g tube)

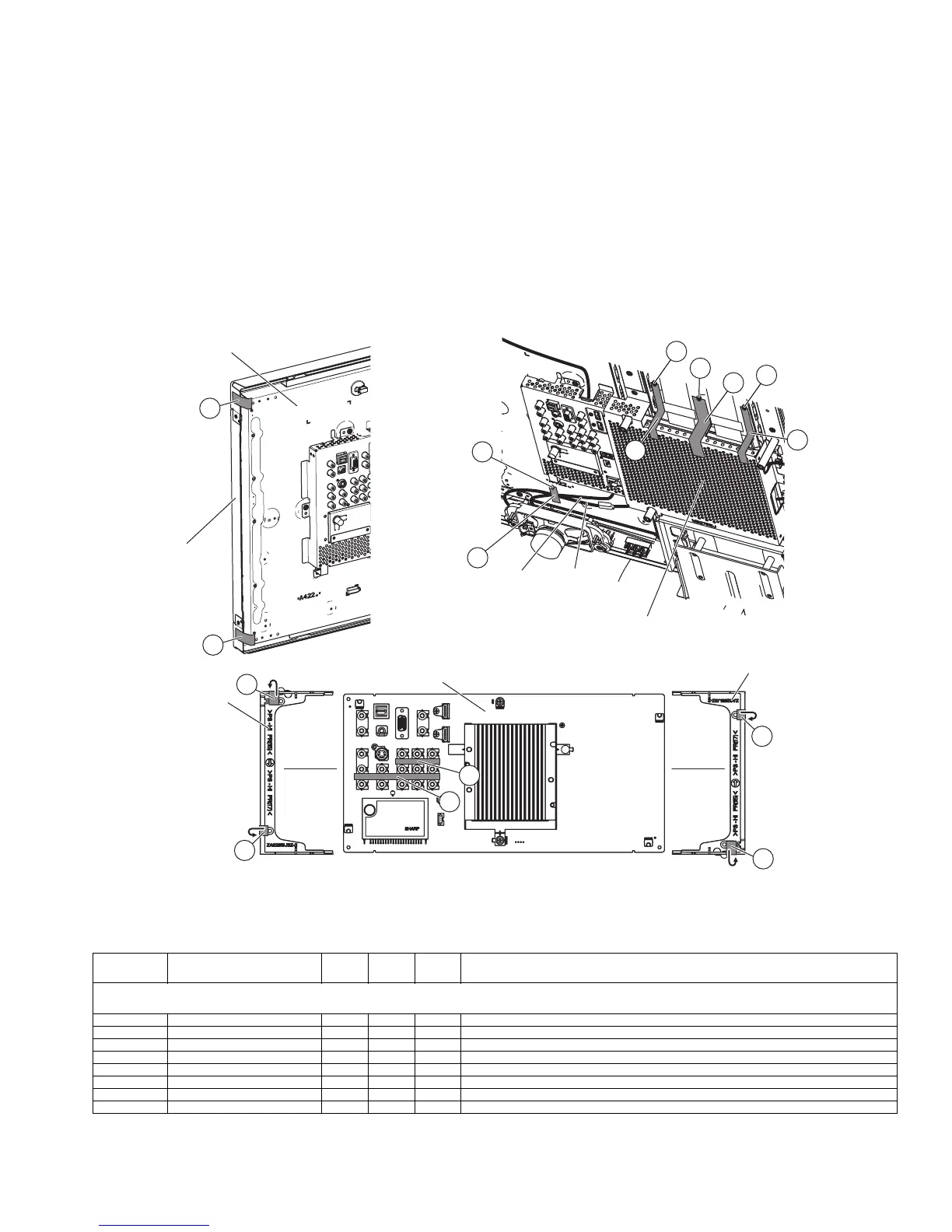

MAIN Unit
Main PWB Holder
Main PWB Holder
RA wire
5
5
4
4
7
6
8
1
Apply bond to
1 location.
Apply bond to
1 location.
Apply bond to
1 location.
8
8
2
2
Apply bond to
1 location.
LCD Panel Module
Back Light Chassis
8
SP wire
3
Main Shield
3
3
