Sharp LC-32D44U - Page 17

LC-32D44U
4 – 5

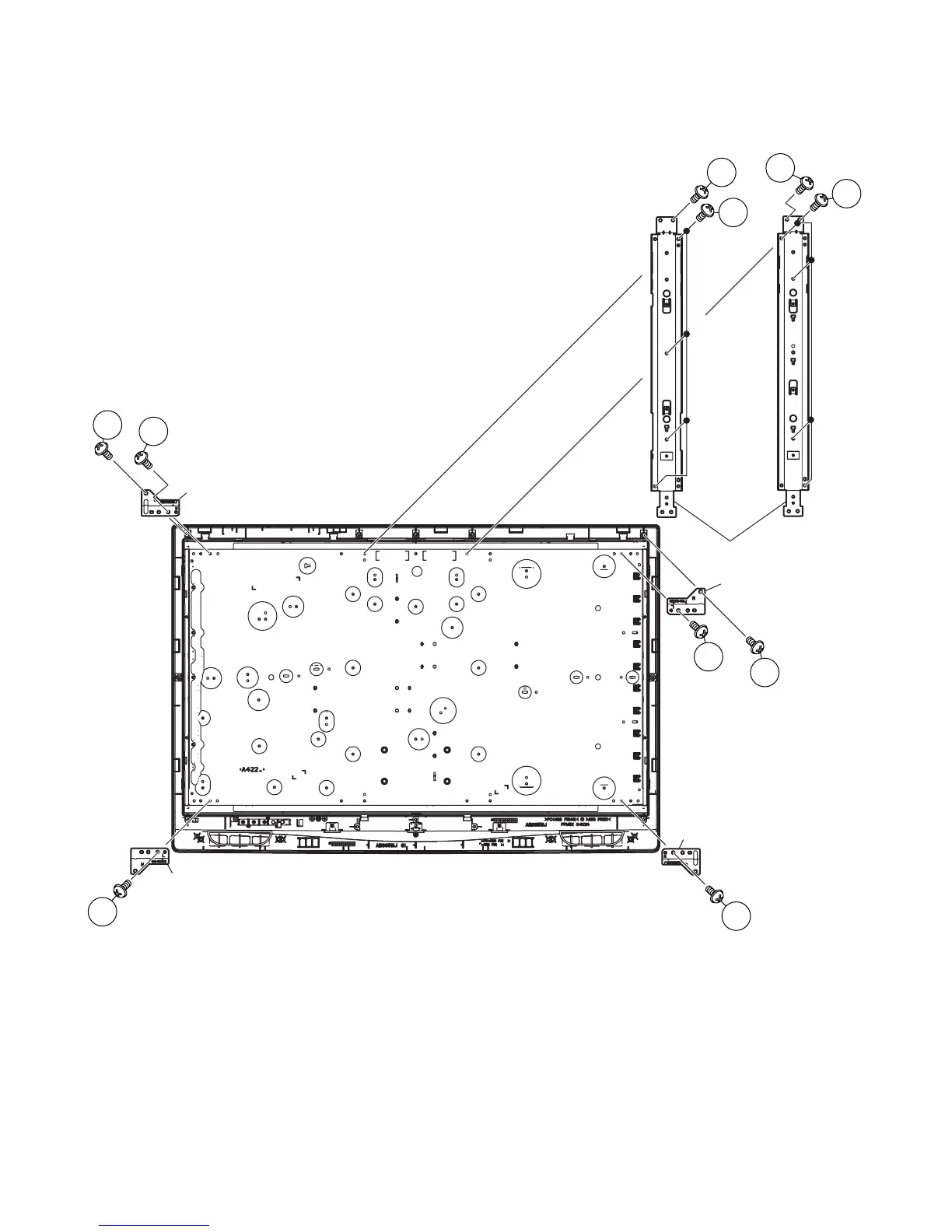

13.Remove the 4 lock screws and detach the LCD Panel Module.
14.Remove the 2 lock screws and detach the LCD Fix Angle-A.
15.Remove the 2 lock screws and detach the LCD Fix Angle-B.
16.Remove the 8 lock screws and detach the VESA Angle.
15
14
14
13
16
16
13
13
15
13
VESA Angle
LCD Fix Angle-B
LCD Fix Angle-A
LCD Fix Angle-A
LCD Fix Angle-B
