Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
LC-37DB5U
PACKING PARTS
(NOT REPLACEMENT ITEM)
S1 SPAKCC139WJZZ – Packing Case —
S2 SPAKFA770WJZZ – Accessories Case —
S3 SPAKFA808WJZZ – Stand Pad —
S4 SPAKPA377WJZZ – Wrapping Paper (Stand) —
S5 SPAKPA467WJZZ – Wrapping Paper (Display) —
S6 SPAKXA724WJZZ – Buffer Material
(Top)(Bottom)
—
S7 TLABKA009WJZZ – Bar Code Label —
SUPPLIED ACCESSORIES
SERVICE JIGS
(USE FOR SERVICING)
EXTENSION CABLES
QCNW-C222WJQZ J
80pins FFC L=1000mm
AW
Pitch=0.5mm,
LCD Cont. to LCD Panel
QCNW-C799WJPZ J
RCA Cable, AV (RF-SW) to
AG
Digital Unit (Tuner)/(Jack)
QCNW-C972WJQZ J 14pins L=1000mm, AY
AV to Digital Unit (DS)
QCNW-D095WJQZ J 12pins L=1000mm, AX
Digital to AV Unit (DA)
QCNW-D938WJQZ J 60pins FFC L=1000mm, AV
AV to Main Unit (FC)
QCNW-D939WJQZ J 12pins L=1000mm, AX
AV to Main Unit (FD)
QCNW-D940WJQZ J 20pins L=1000mm, BA
Power to Main Unit (PE)
QCNW-D941WJQZ J
10pins L=1000mm,
AW
Power to Inverter Unit (PG1), (PG2)
QCNW-D942WJQZ J
30pins L=1000mm,
BG
LCD Controller to Main Unit (LV)
QCNW-D943WJQZ J
7pins L=1000mm,
AT
LCD Controller to Main Unit (SH)
QCNW-D944WJQZ J 12pins L=1000mm, AX
AV to Power Unit (PA)
QCNW-E067WJQZ J 6pins L=1000mm, AS
Digital to Power Unit (DP)
QCNW-E068WJQZ J 6pins L=1000mm, AS
Main to Inverter Unit (MI)
å X1 QACCDA039WJPZ X Ac Cord AR
X2 RRMCGA416WJSA X Remote Control Unit BA
X3 LHLDW0110CESD X Cable Clamp AF
X4 LHLDWA083WJ00 X Cable Band AE
X5 TiNS-B946WJZZ X Operation Manual AZ
X6 TCADEA126WJZZ X Questionnaire Card AC
X7 SSAKA0101GJZZ X Wrapping Sack AB
X4 Cable Band

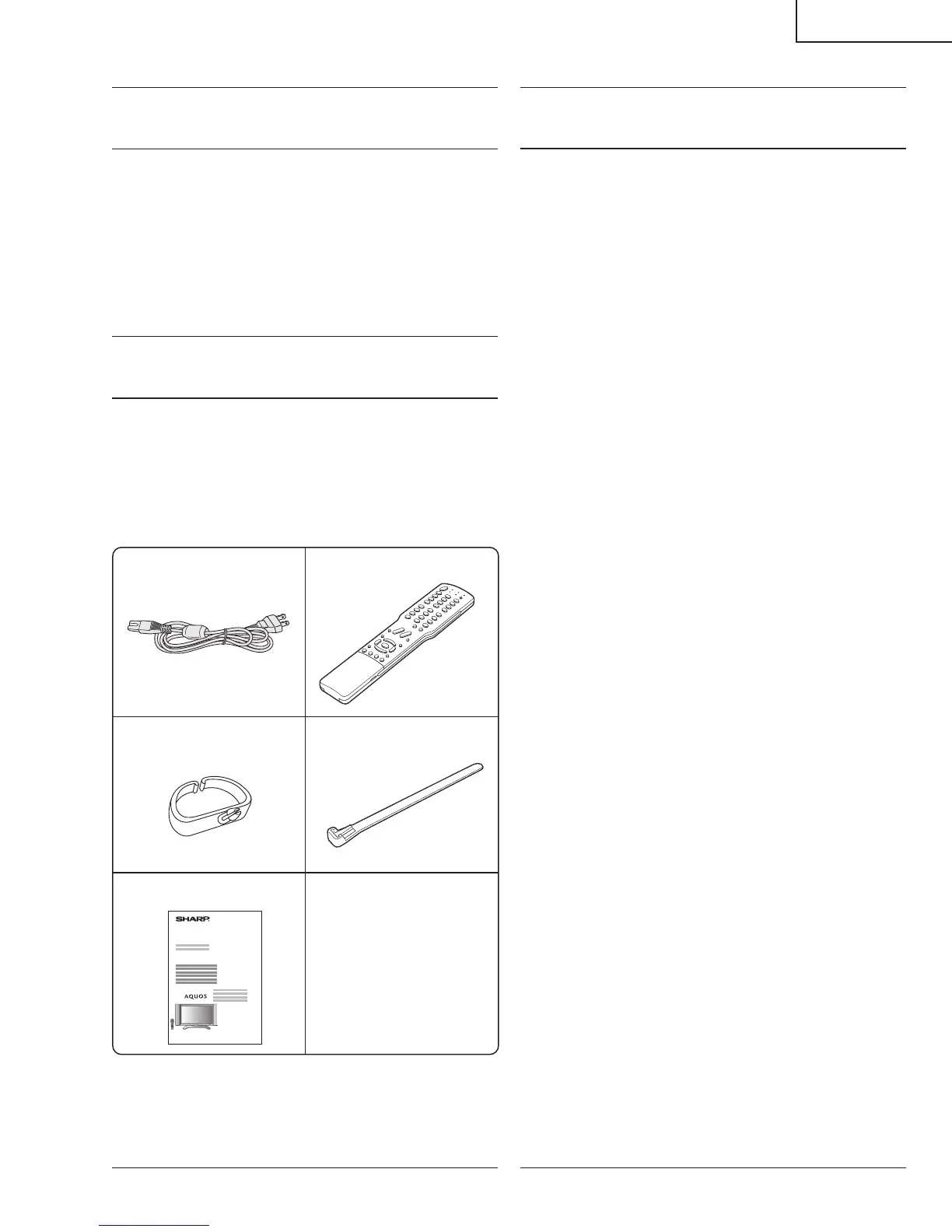

X2 Remote Control UnitX1 AC Cord
X3 Cable Clamp
X5 Operation Manual
To Next Page
