Sharp LC-37X20E Service Manual

LC-32X20E/S/RU, LC-37X20E/S/RU
2 – 2

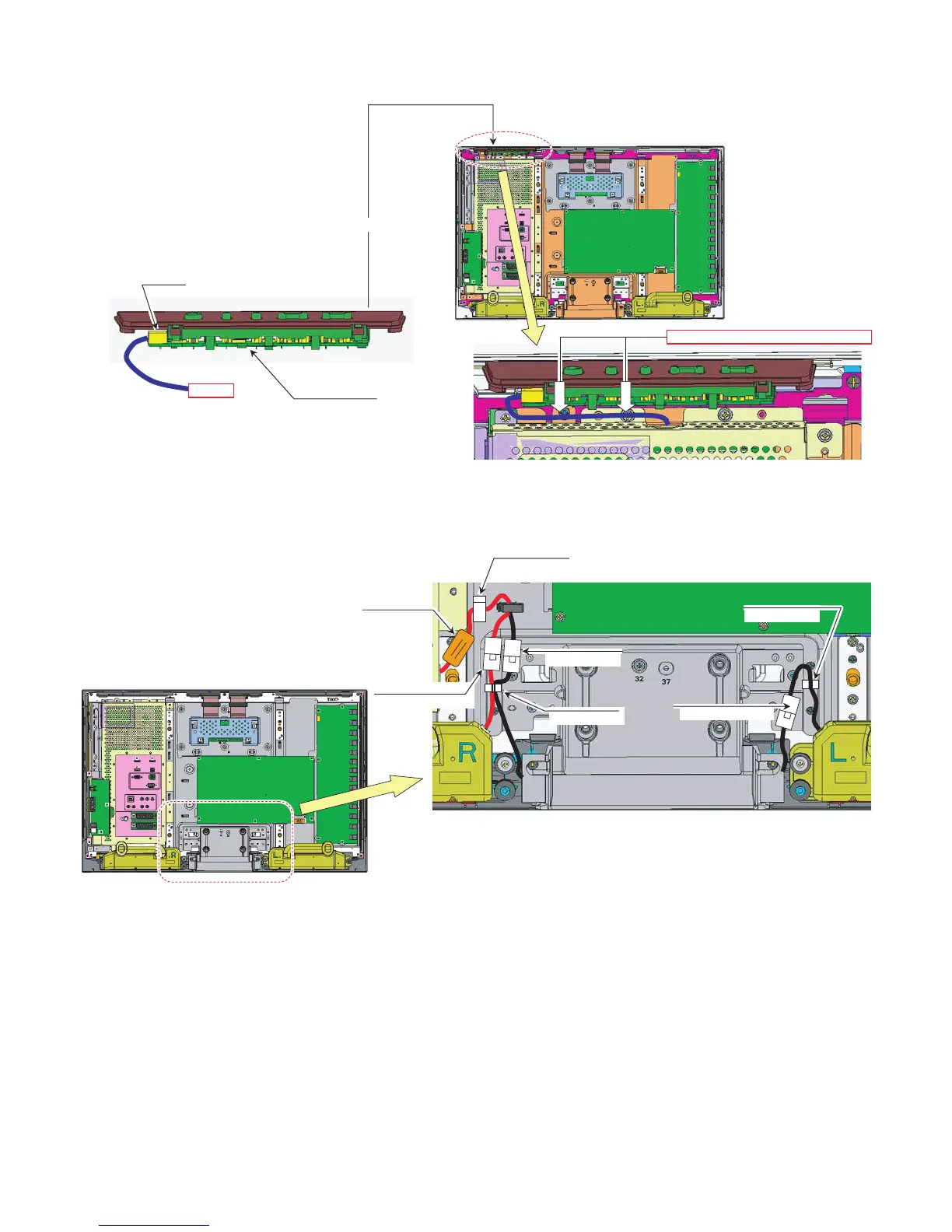

2. Remove all the connectors from PWBs.
Detach the KEY COVER Unit.
KEY COVER Unit
Wire "KM"
Wire "KM"
KEY COVER
#Place Wire "KM" between SHEILED and Key PWB
#Caution
Don't make mistake wire "SP-L" and "SP-R".
SP-L:BLACK/WHITE wire
SP-R:RED/WHITE wire
Wire SPE to SP-L lead
SP-L lead to WH
FOR Wire "SP"
Wire SP-L to SPE
Wire SP-R to SP-R lead
Wire "SP" to WH
SP-RleadtoWH
