Sharp LC-37X20E Service Manual

LC-32X20E/S/RU, LC-37X20E/S/RU
2 – 3

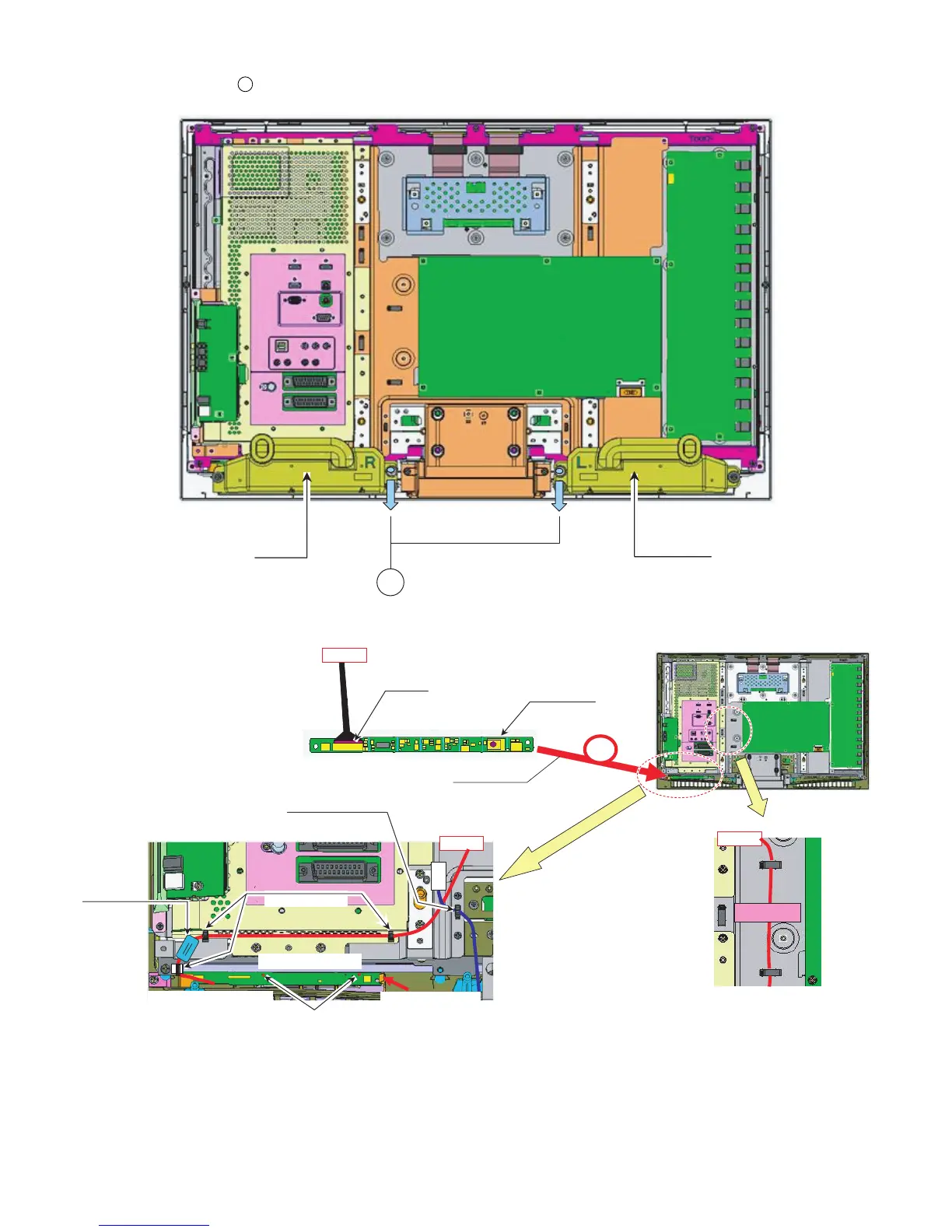

3. Remove the 2 lock screws and detach the Speaker L/R.
4. Remove all the connectors from PWBs.
5. Remove the R/C, LED Unit.
5
SP-R
SP-L
5
R/C, LED PWB
Wire "RA"
R/C, LED PWB
(with wire)
#Set PWB to guide lib surely
Pull out Wire "RA" from bottom
R/C, LED PWB Front
Wire "RA"
Wire "RA"
Next,Push PWB hooked
Wire "SPE" to WH
Wire "RA"
FORWire"RA"
Wire "RA" to WH x3
R/C,LED PWB Back side
