LC-32X20E/S/RU, LC-37X20E/S/RU
2 – 4

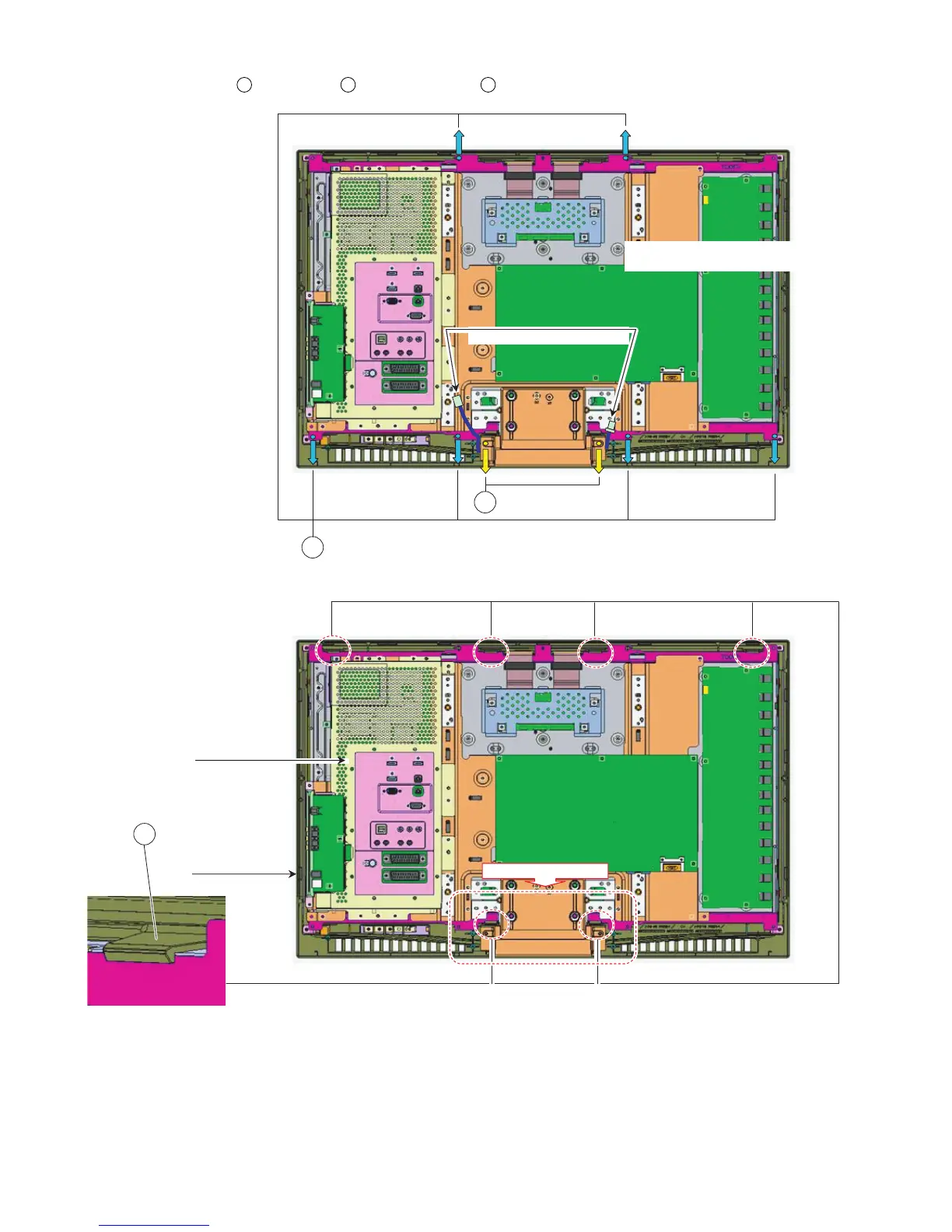

6. Remove the 2 lock screws , 6 lock screws and the 6 lock hooks . Detach the LCD Panel Module.
6 7 8
#Unshape W ire "SPE" TEMPORARY shaping
when insutalling CAB-A, and Shape to WH on OBON
Wire "SPE" TEMPORARY shaping
6
7
FUSION SUB ASSY
Prepared CAB-A
Don't sandwich Wire "SPE"
8
