LC-32X20E/S/RU, LC-37X20E/S/RU
2 – 12

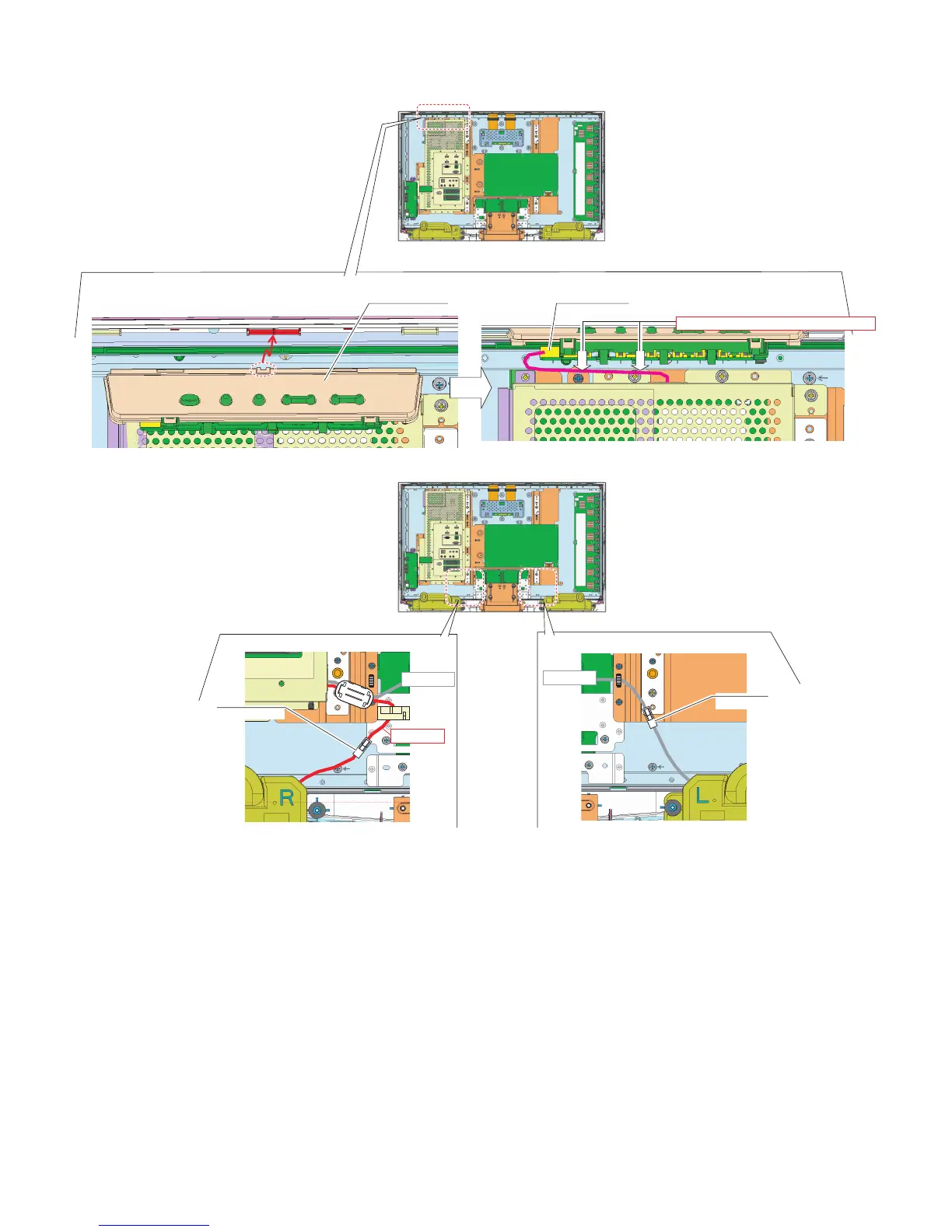

2. Detach the KEY COVER Unit.
Remove all the connectors from PWBs.
Wire "KM"
KEY COVER Unit
#Place Wire "KM" between SHEILED and Key PWB
Wire "SP-L"
Wire "SP-L"
Wire "SP-R"
Wire "SP-L"
Wire "SP-R"
