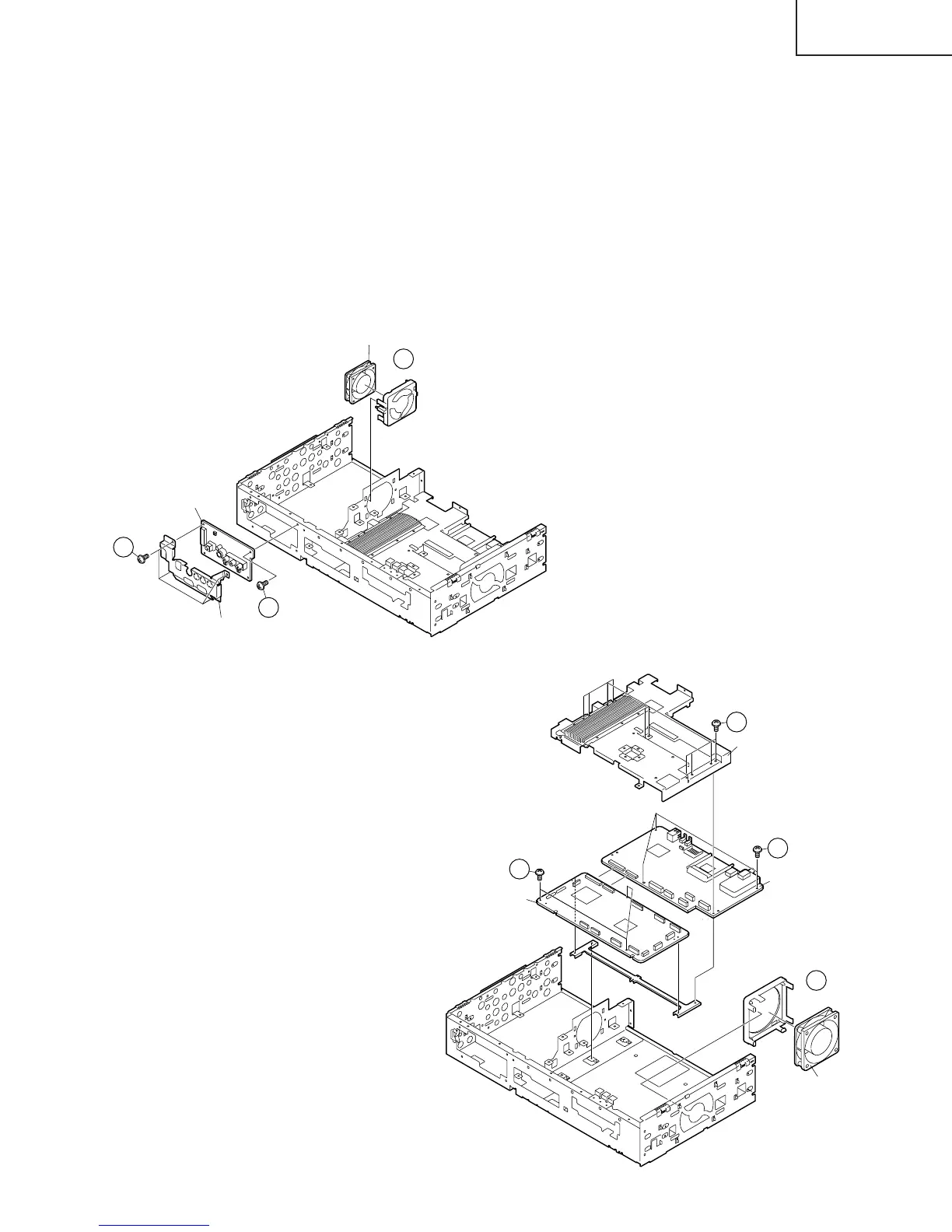

11. Remove the Cooling Fan (small) and Front PWB.
11-1. Detach the Cooling Fan (small).
11-2. Remove the four lock screws from the Front Shield.
11-3. Remove the one lock screw from the Front PWB.
12. Remove the Cooling Fan (large), Shield Ass'y, MAIN PWB and DIGITAL PWB.
12-1. Detach the Cooling Fan (large).
12-2. Remove the ten lock screws from the Shield Ass'y.
12-3. Remove the six lock screws from the MAIN PWB and DIGITAL PWB.
11-1
11-2
11-3
Cooling Fan (Small)
Front PWB
Front Shield
12-2
12-3
12-1
12-3
Shield Ass’y
DIGITAL PWB
MAIN PWB
Cooling Fan (Large)
