REMOVING OF MAJOR PARTS
TU-GD10U-T, TU-45GAD/T

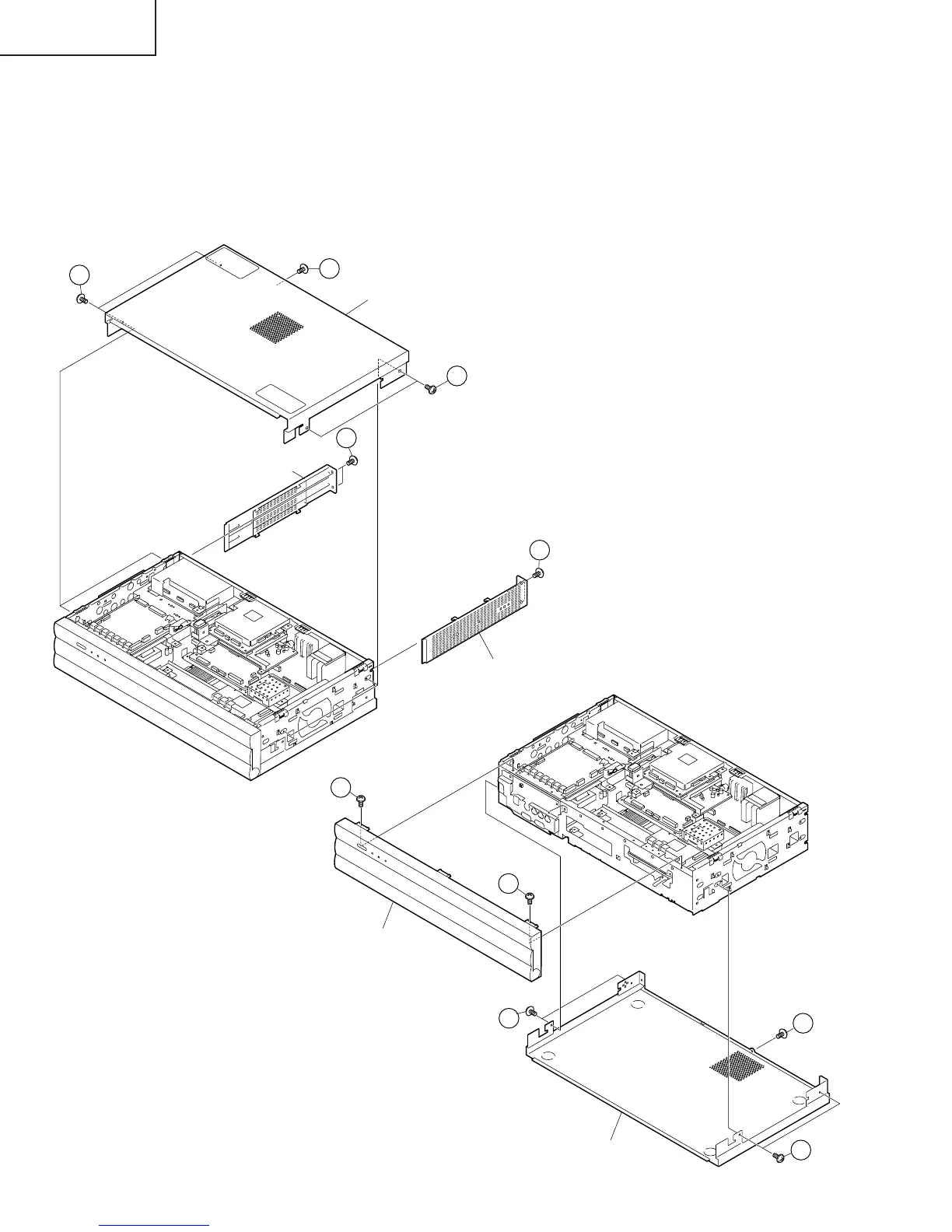

1. Remove the two lock screws from each of the right and left Side Shield, and detach the Side Shield by sliding
them backward.
2. Remove the five lock screws from the Top Cabinet, and detach the cabinet by sliding it backward.
3. Remove the five lock screws from the Bottom Cabinet, and detach the cabinet by sliding it backward.
4. Remove the two lock screws from the Front Panel, and detach the panel.
1
1
2
2
2
Top Cabinet
Side Shield (Left)
Side Shield (Right)
3
3
3
4
4
Front Panel
Bottom Cabinet
