Sharp LC-46DH65E - Maintenance and Repair Procedures; Removing Major TV Parts

LC-46DH65E/S, LC-46DH66E
2 – 1
LC46DH65E
Service Manual
CHAPTER 2. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS
1. Removing of Stand Unit and Rear Cabinet

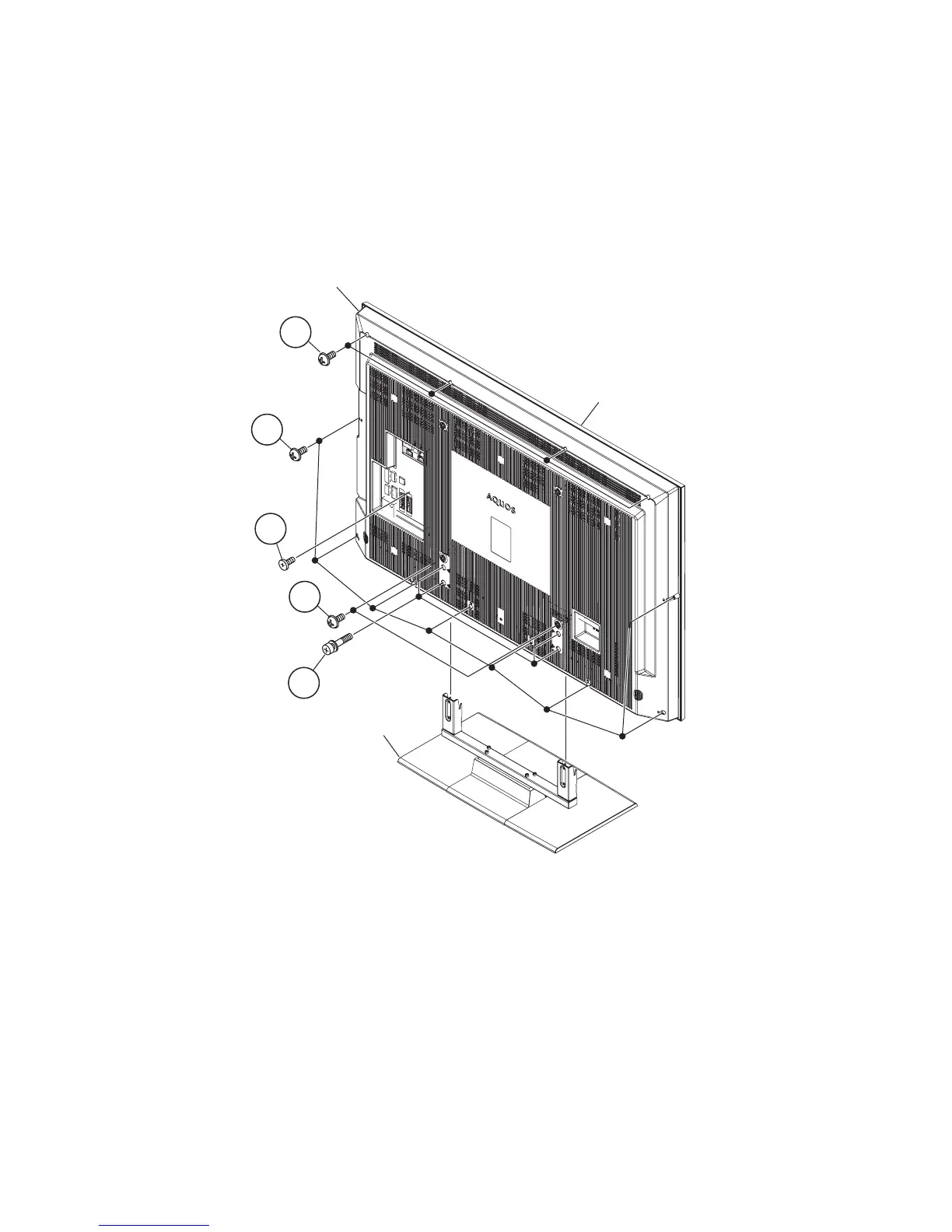

1. Remove the 4 lock screws and detach the Stand Unit.
2. Remove the 2 lock screws.
3. Remove the 1 lock screw.
4. Remove the 4 lock screws, 8 lock screws and detach the Rear Cabinet.
Front Cabinet
Rear Cabinet
Stand Unit
4
4
2
3
1
