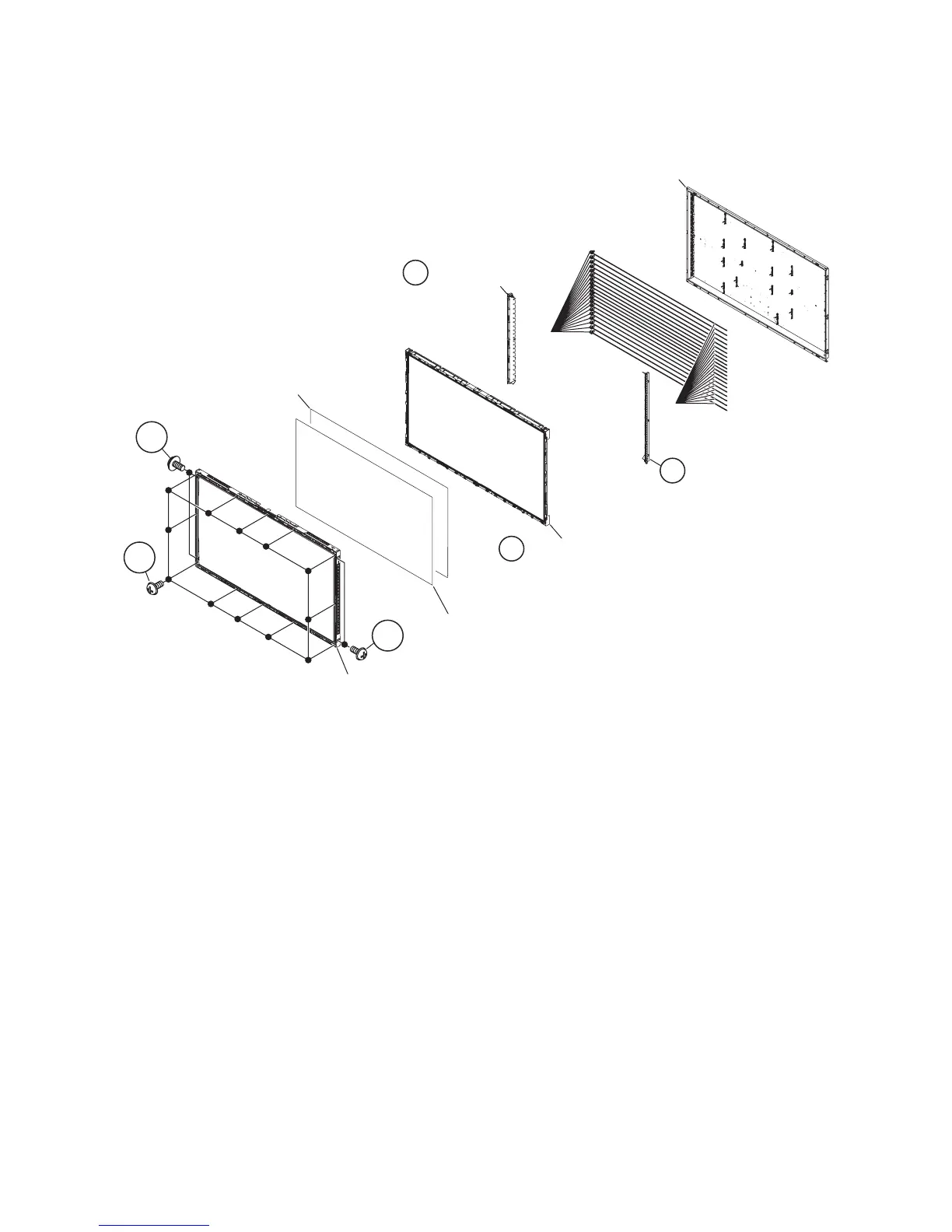

7. Removing of the Lamp
1. Remove the 16 lock screws. Detach the Diffusion Sheet and Diffusion Panel.
2. Detach the 4 Sheet Holders.
3. Remove the 2 Lamp Holders. Detach the Lamp Sockets and Lamps.
1
1
1
2
3
Diffusion Sheet
Bezel Ass'Y
Diffusion Plate
Sheet Holder
Lamp Holder
Lamp
Socket
Lamp
BL Chassis Ass'y
3
Lamp Holder
