LC-32LE63x
LC-40LE63x
LC-46LE63x
4.2 Service Positions
For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.
1. Remove all screws of the rear cover.
2. Lift the rear cover from the TV. Make sure that wires and
flat coils are not damaged while lifting the rear cover from
the set.
4.3.1 Rear Cover
Warning: Disconnect the mains power cord before you remove
the rear cover.
Note: it is not necessary to remove the stand while removing
the rear cover.
Refer to Figure 4-4
and Figure 4-5 for details.

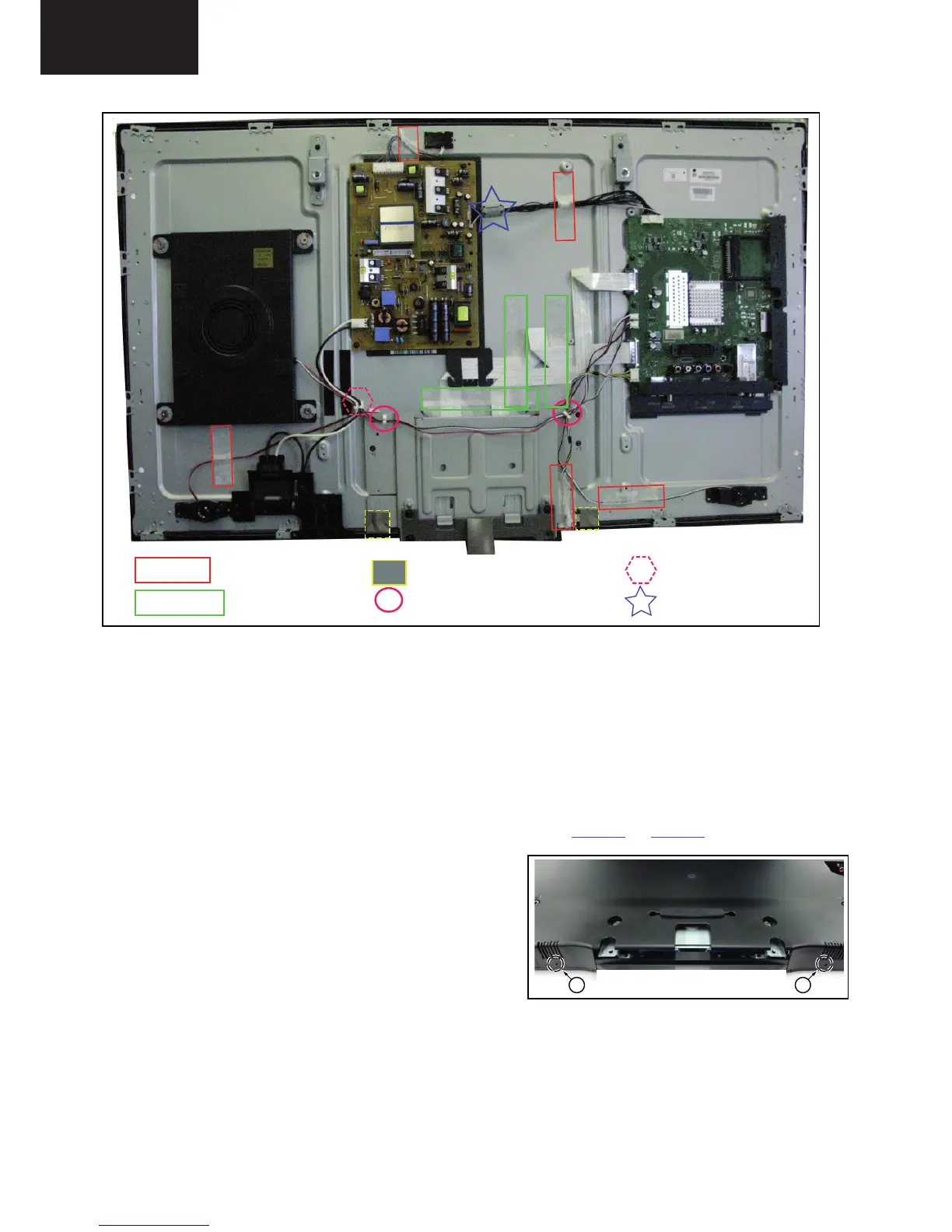

Figure 4-4 Bottom catches 40” and 46” sets -1-
2 conductive tapes (40 mm)
2 x 11 mm clamp
1 x 17 mm clamp
5 tapes (80 mm)
3 tapes (150 mm)
1 ferrite core
Figure 4-2 Cable dressing LC-40/46LE63x series
4.3 Assy/Panel Removal Sundance Styling
(LC-xxLE63xE/RU series)
The instructions in this section also apply to the LC-
xxLE63xE/RU series.
For the 40” and 46” sets, additional instructions (rear cover
removal) apply. Refer to subsection Additional instructions
for 40/46LE63xE/RU and Removing of Major Parts.
The instructions apply to the 32LE63xE/RU.
19100_04 8_110216.ep s
110315
1 1
Additional instructions for 40/46LE63xE/RU sets have a
dedicated method to open the bottom catches when re-
moving the rear cover.
Mechanical Instructions (continued)
