LC-60/70LE650U/C6500U/LE657U,LC-60/70LE755U/LE757U/LE857U/C7500U

4 – 25

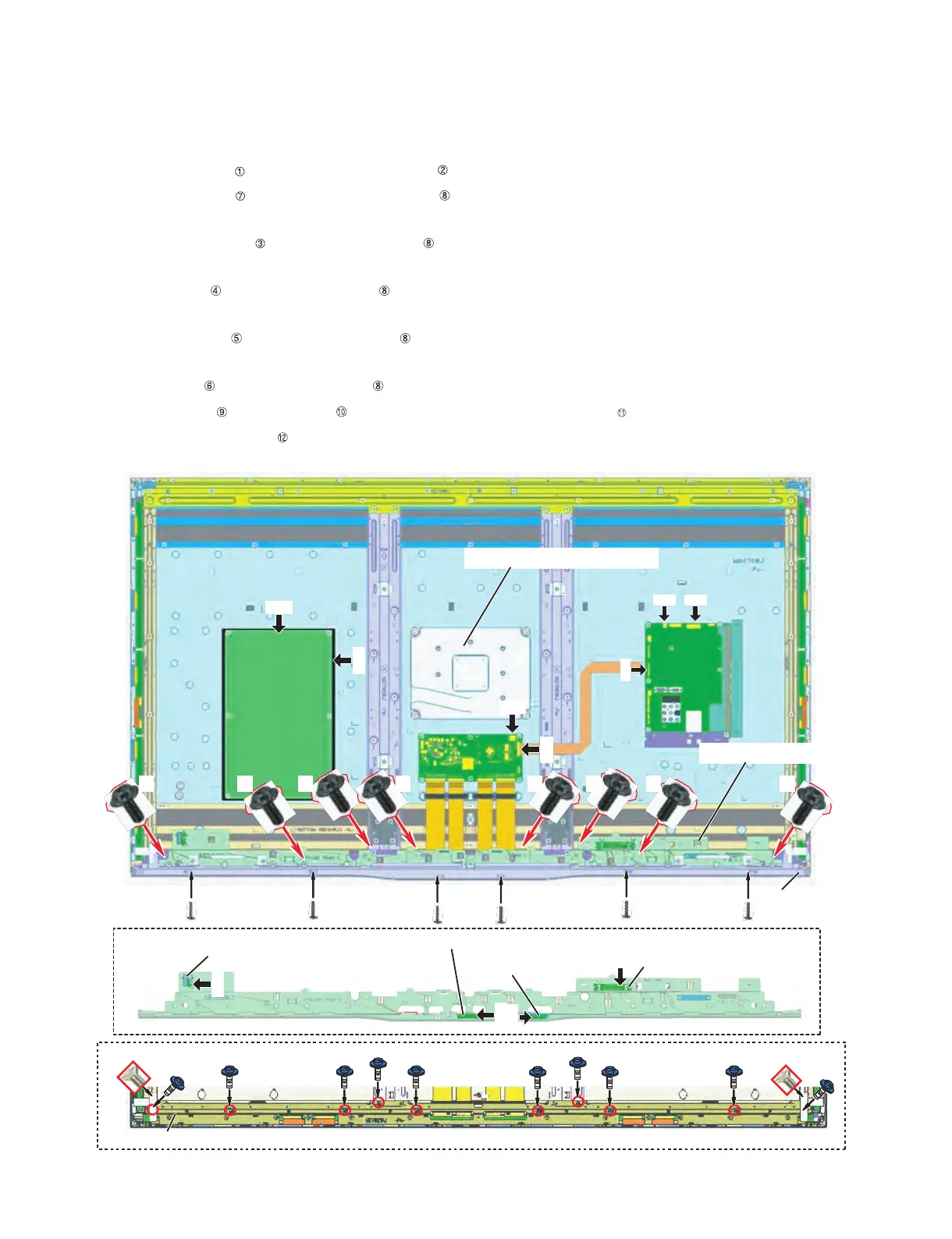

3. Removeing of Connectors and Decoration Cover, Front Cover Ass'y and Back Light Support Angle Bottom

Ass'y.

1. Disconnect the following connectors from MAIN Unit. (SB,PD,LV)

2. Disconnect the following connectors from POWER/DRIVE Unit. (L1,PD)

3. Disconnect the following connectors from LCD CONTROL Unit. (PL,LV)

4. Remove the 6 lock screws and detach the Decoration Cover .

5. Remove the 8 lock screws and detach the Front Cover Ass'y .

6. Disconnect the following connector from BLUETOOTH Unit. (BT)

7. Detach the BLUETOOTH Unit from the Front Cover Ass'y .

8. Disconnect the following connector from ICON Unit. (CI)

9. Detach the ICON Unit from the Front Cover Ass'y .

10.Disconnect the following connector from R/C OPC Unit. (RA)

11.Detach the R/C OPC Unit from the Front Cover Ass'y .

12.Disconnect the following connector from WiFi Unit. (UB)

13.Detach the WiFi Unit from the Front Cover Ass'y .

14.Remove the 10 screws and 2 lock screws and detach the BL Support Angle Bottom Ass'y .

15.Detach the Speaker Unit (Woofer) .

٨Front Cover Ass'y

ԚBLUETOOTH UNIT

ԛICON UNIT

ԜR/C OPC UNIT

ԝWiFi UNIT

Ԙ Ԙ Ԙ Ԙ Ԙ Ԙ

Ԟ Ԟ Ԟ Ԟ Ԟ Ԟ Ԟ

ԙDecoration

˴Cover

Ԣ$.5WRRQTV#PING$QVVQO#UU[

ԟFront Cover Ass'y

ԣSpeaker Unit (Woofer)

Ԡ Ԡ Ԡ Ԡ Ԡ Ԡ Ԡ

PDSB
