Sharp LC-60LE857U Service Manual

LC-60/70LE650U/C6500U/LE657U,LC-60/70LE755U/LE757U/LE857U/C7500U
4 – 28
[8] Precautions for assembly (LC-60/70LE755U/757U/LE857U/C7500U)
1. Points to be checked and precautions when servicing the unit
Mount the main PWB Ass’y on the backlight chassis and check that the EMI-prevention parts are not peeled and twisted from the access holes. (The
EMI-prevention parts, conductive nonwoven fabric gaskets, must be seen from the access holes.)
[Countermeasure]

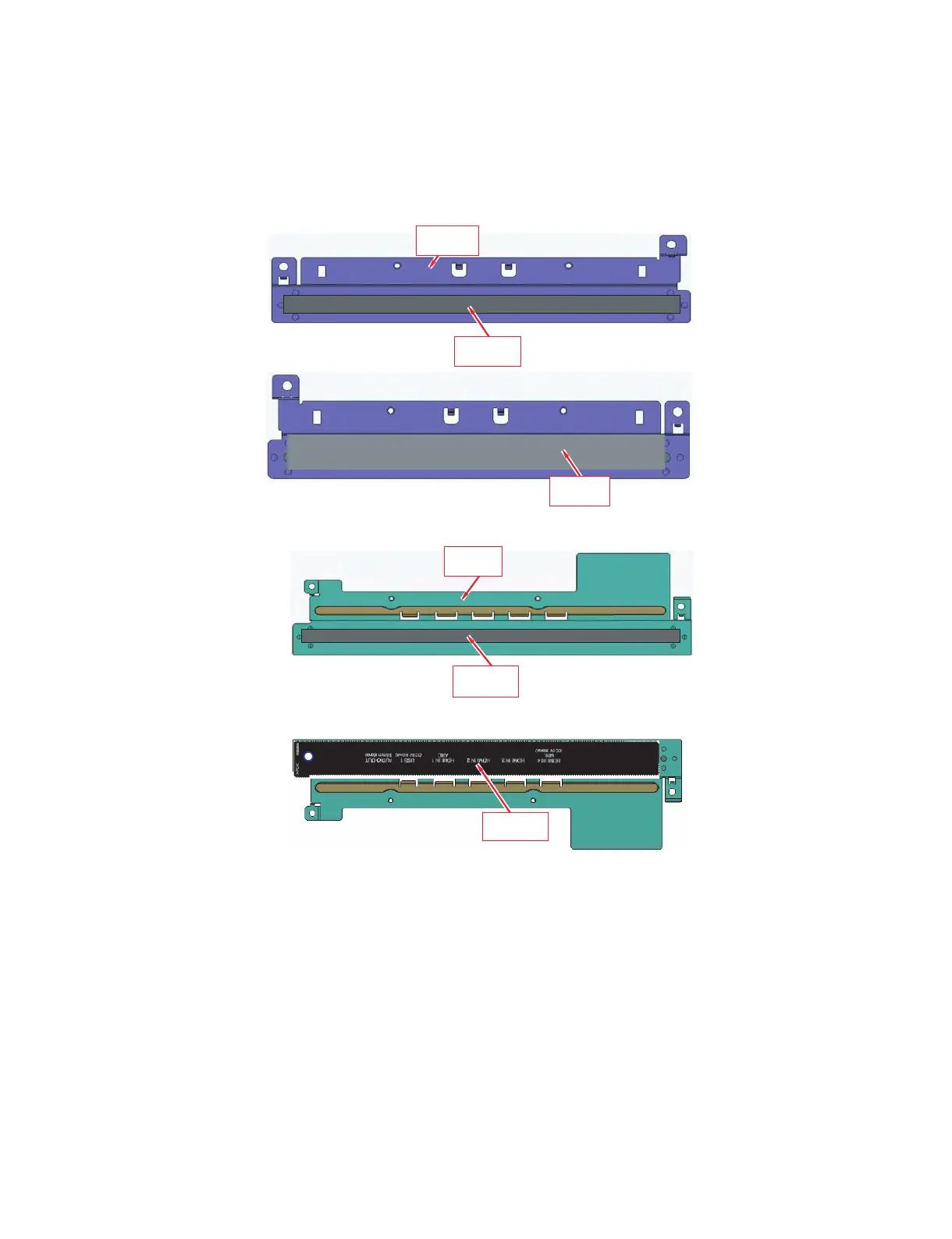

Attach the conductive nonwoven fabric gaskets on the shielded case on the main PWB.
• LC-60LE755U/LE757U/LE857U/C7500U
(2) Stick***
PSPA ZC 691WJZZ
CONDUCTR: 8x 18 0
(3) Stick***
HDECP A 091WJZ Z
DEC SHEET BTM
(1) Prepare ***
LAN GKD146W JFW
TER M ANG BOTTOM
(1) Prepare ***
LAN GKD145W JFW
TER M ANG SIDE
(2) Stick ***
PSPA Z C6 90 WJZ Z
CONDUCTR: 8x 25 5
(3) Stick *****
HINDPE8 39 WJ SA
T-LA BEL SIDE

Sharp LC-60LE857U Specifications

General

Display diagonal	60 \
LED backlighting type	Edge-Lit LED
Supported video modes	1080p
Contrast ratio (dynamic)	12000000:1
Screen format adjustments	16:9
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	Yes
3D type	Active
Built-in camera	No
Bundled software	Smart Apps, Web Browser, Web+TV Split Screen, Skype, Remote Control Apps (iOS/Android)
3D glasses quantity	2
Placement supported	Horizontal
Tuner type	Analog & digital
Number of tuners	2 tuner(s)
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
DVI port	-
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Wi-Fi standards	802.11a, 802.11b, 802.11g
Lifestyle apps	Skype
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Silver
Panel mounting interface	400 x 200 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Power consumption (typical)	187 W
Sustainability certificates	ENERGY STAR
Certification	Think Green
Package depth	203 mm
Package width	1727 mm
Package height	915 mm
Package weight	49000 g

Weight and Dimensions

Depth (with stand)	360 mm
Height (with stand)	837 mm
Weight (with stand)	40000 g
Depth (without stand)	58 mm
Width (without stand)	1378 mm
Height (without stand)	810 mm
Weight (without stand)	33000 g
