6. Special features
* STANDBY CAUSE (Page 1/29)
Display of a cause (code) of the last standby
The cause of the last standby is recorded in EEPROM whenever possible.
Checking this code will be useful in finding a problem when you repair the troubled set.
* EEP SAVE (Page 29/29)
Storage of EEP adjustment value
* EEP RECOVER (Page 29/29)
Retrieval of EEP adjustment value from storage area
7. Writing the microprocessor software
7.1. Writing the main microprocessor software and monitor microprocessor software
(Main PWB: QPWBXF953WJN1)
8. Signal adjustment
8.1. LCD section adjustment [LCD module adjustment]
Adjustment item Adjustment conditions Adjustment procedure
1 Writing the main micropro-
cessor software and moni-
tor microprocessor software
<Main PWB>
Checker process
Checking the file version
Checking the USB memory
1) Using the checker, connect the specified writing tool to the SC3101 (TL3114 -
TL3128).
2) Using the checker, connect the USB memory to the J9502 (TL9524 - 9527).
3) Apply the specified voltage to the PWB and boot it up with the tool connected.
4) Send the software writing start command via RS232C.
5) Send the writing status check command and confirm the response of OK. Then
turn off the power.
CAUTION: When the USB memory is not inserted or reading error occurs, nothing
is written.
Adjustment item Adjustment conditions Adjustment procedure
1 Opposite bias adjustment
(LCD module adjustment
item)
Adjustment in the center
position of the panel
1) Enter the process mode using the process adjustment remote control.
2) Select [VCOM ADJ] using the Channel / keys on the remote control.
3) Press the Enter key to check that the pattern for adjustment is displayed.
4) Make adjustment so that the flicker located in the center of the screen is mini-
mized using the Volume +/- keys on the remote control.
5) If the optimum condition is obtained in step 4, press the Enter key to turn off the
pattern.
CAUTION: * Make adjustment with no ANT signal (since the brightness is changed
by the active backlight).

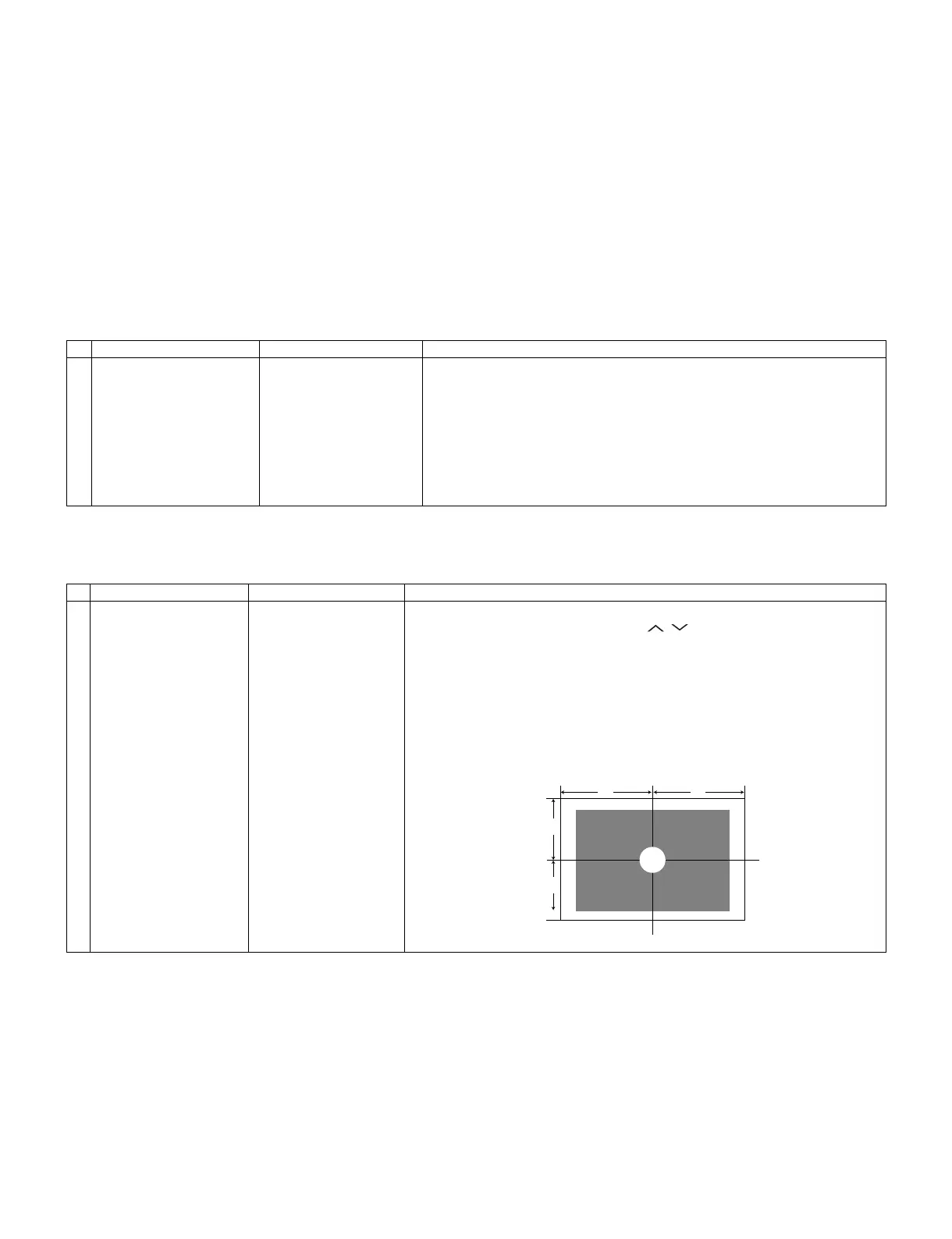

[Adjustment position]
1/2 1/2
1/2
1/2

Sharp LC-60LE857U Specifications

General

Display diagonal	60 \
LED backlighting type	Edge-Lit LED
Supported video modes	1080p
Contrast ratio (dynamic)	12000000:1
Screen format adjustments	16:9
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	Yes
3D type	Active
Built-in camera	No
Bundled software	Smart Apps, Web Browser, Web+TV Split Screen, Skype, Remote Control Apps (iOS/Android)
3D glasses quantity	2
Placement supported	Horizontal
Tuner type	Analog & digital
Number of tuners	2 tuner(s)
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
DVI port	-
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Wi-Fi standards	802.11a, 802.11b, 802.11g
Lifestyle apps	Skype
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Silver
Panel mounting interface	400 x 200 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Power consumption (typical)	187 W
Sustainability certificates	ENERGY STAR
Certification	Think Green
Package depth	203 mm
Package width	1727 mm
Package height	915 mm
Package weight	49000 g

Weight and Dimensions

Depth (with stand)	360 mm
Height (with stand)	837 mm
Weight (with stand)	40000 g
Depth (without stand)	58 mm
Width (without stand)	1378 mm
Height (without stand)	810 mm
Weight (without stand)	33000 g
