Sharp LC-60LE857U Service Manual

LC-60/70LE650U/C6500U/LE657U,LC-60/70LE755U/LE757U/LE857U/C7500U
6 – 2
3. New method

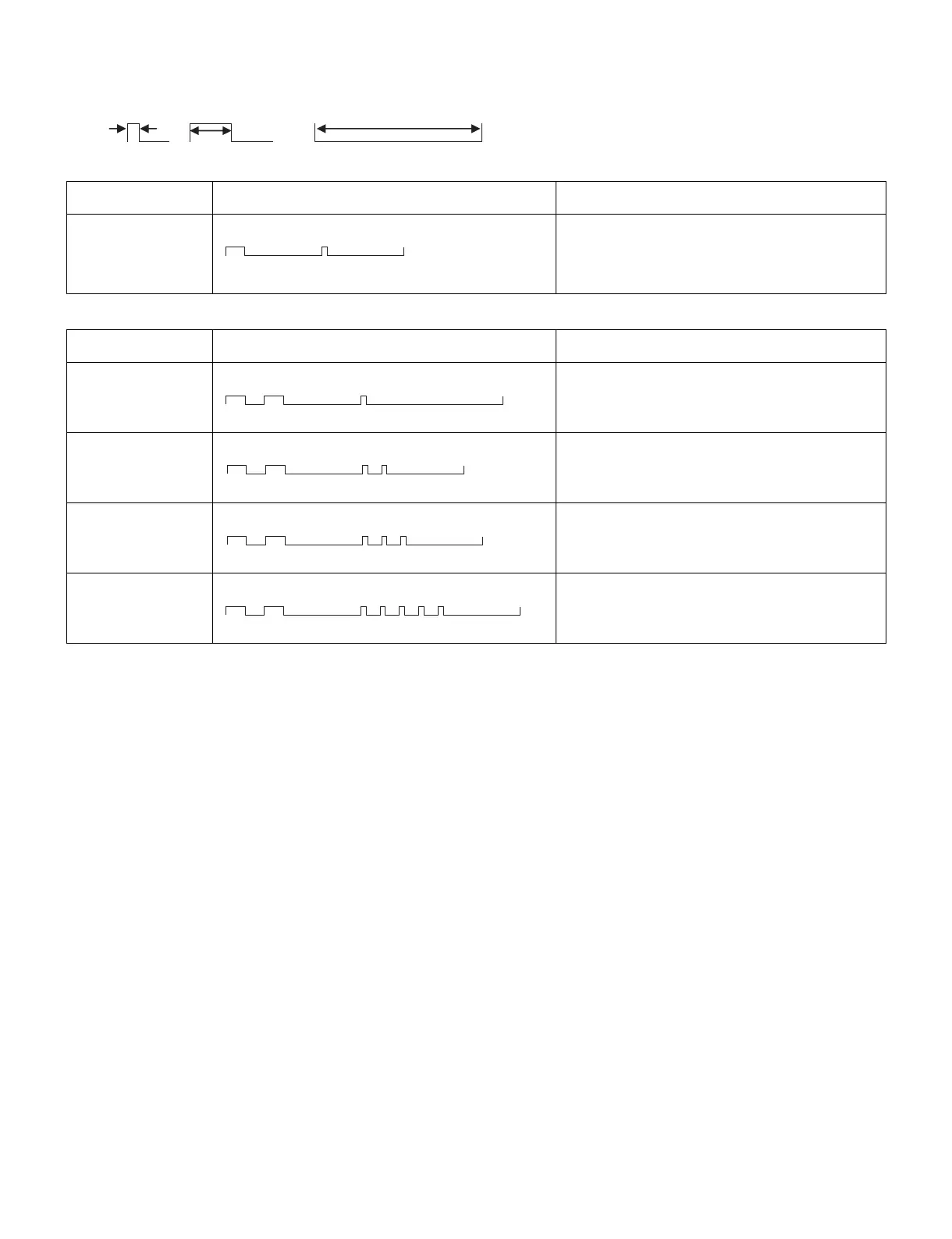

LED flashing timing chart at the time of an error
1) Inverter/Lamp failure details (Flashes slowly once and flashes fast) Note
2) Power failure details (Flashes slowly twice and flashes fast) Note
Error type Center icon LED operation
Pins are monitor microcomputer pins unless other-
wise specified.
Lamp failure
Flashes fast once
H: On
L: Off
ERR_PNL: failure(H). Inverter/Lamp error is detected.
Note that after five detection counts, the lamp cannot be
activated except in the adjustment process mode.
Accumulated counts are cleared to 0 by the setting in the
LAMP ERROR RESET on the adjustment process mode.
Error type Center icon LED operation
Pins are monitor microcomputer pins unless other-
wise specified.
PS_ON
AC_DET failure
Flashes fast once
H: On
L: Off
AC_DET failure (L).
SM_POW
Main 13V failure
Flashes fast twice
H: On
L: Off
DET_13V failure (L). Main 13V is not applied.
D_POW
Digital 3.3V failure
Flashes fast 3 times
H: On
L: Off
DET_D3V3 failure (L). Digital 3.3V is not applied.
PANEL_POW
Panel 12V failure
Flashes fast 5 times
H: On
L: Off
DET_PNL12V failure (L). Panel power is not applied.
100ms 400ms 1.6sec

Sharp LC-60LE857U Specifications

General

Display diagonal	60 \
LED backlighting type	Edge-Lit LED
Supported video modes	1080p
Contrast ratio (dynamic)	12000000:1
Screen format adjustments	16:9
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	Yes
3D type	Active
Built-in camera	No
Bundled software	Smart Apps, Web Browser, Web+TV Split Screen, Skype, Remote Control Apps (iOS/Android)
3D glasses quantity	2
Placement supported	Horizontal
Tuner type	Analog & digital
Number of tuners	2 tuner(s)
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
DVI port	-
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Wi-Fi standards	802.11a, 802.11b, 802.11g
Lifestyle apps	Skype
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Silver
Panel mounting interface	400 x 200 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Power consumption (typical)	187 W
Sustainability certificates	ENERGY STAR
Certification	Think Green
Package depth	203 mm
Package width	1727 mm
Package height	915 mm
Package weight	49000 g

Weight and Dimensions

Depth (with stand)	360 mm
Height (with stand)	837 mm
Weight (with stand)	40000 g
Depth (without stand)	58 mm
Width (without stand)	1378 mm
Height (without stand)	810 mm
Weight (without stand)	33000 g
