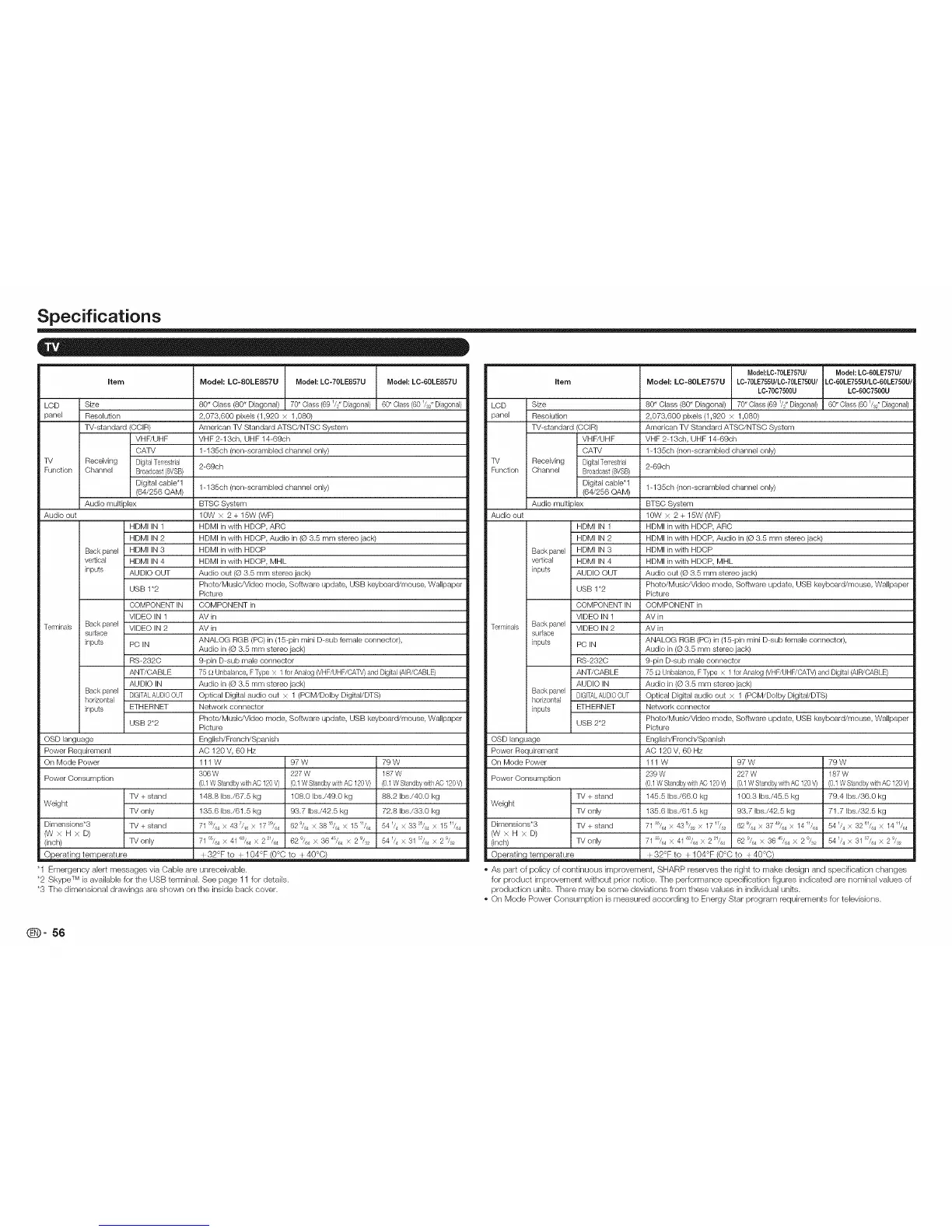

Specifications
item Model: LC-80LE857U Model: LC-70LE857U Model: LC-60LE857U
LCD Size 80" Class (80" Diagonal) 70" Class (691//, Diagoeal) 60"Class (B01/32"Diagonal)
panel Resolution 2,073,600 pixels (1,920 x 1,080)
T%standard (CCIR) American TV Standard ATSC/NTSC System
VHF/UHF VHF 2-13ch, UHF 14-69ch
OATV 1-136ch (non-scrambbd channel only)
TV Receiving DigitalTerrestrial 2-69ch
Function Channel Broadcast(SVSB)
Digital cable*l 1-135ch (non-scrambbd channel only)
(64/266 CAM)
Audio mult[pbx BTSC System
Audio out 10W × 2 + 15W ONF)
HDMI IN 1 HDMI in with HDCP, ARC
HDMI IN 2 HDMI in with HDCP, Audio in (@3.6 mm stereo jack)
Back panel HDMI IN 3 HDMI in with HDCP
vertical HDMI IN 4 HDMI in with HDCP, MHL
inputs AUDIO OUT Audio out (© 3.6 mm stereo jack)
USB 1"2 Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper
COMPONENT IN COMPONENT in
VIDEO IN 1 AV in
Terminab Back panel VIDEO IN 2 AV in
surface
inputs PC IN ANALOG RGB (PC) in (15-pin mini D-sub female connector),
Audio in (© 3.5 mm stereo jack)
RS=2320 9=pin D=sub male connector
ANT/CABLE 75 _ Unbalance, FType x 1for Analog (VHF/UHF/CATV)and Digital (AIR/SABLE)
AUDIO IN Audio in (© 3.5 mm stereo jack)
Back panel DIGITALAUDIOOUT Optical Digital audio out × 1 (POM/Dolby Dig[tal/DTS)
horizontal
inputs ETHERNET Network connector
USB 2*2 Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper
OSD language English/FrenctVSpanish
Power Requirement AO 120 V, 60 Hz
On Mode Power 111 W 97 W 79 W
306 W 227 W 187 W
PowerOonsumption (0.1WStandbywithAC120V) (0.1WStandbywithAC120V) (0.1WStandbywithAO120V)
148.8 Ibs./67.5 kg 108.0 bs./49.0 kg 88.2 Ibs./40.O kg
Weight
135.6 Ibs./61.5 kg 93.7 bs./42.5 kg 72.8 Ibs./33.0 kg
Dimensions*3 71 55/64x 437/16 x 1729/64 62 % X 3815/64X 1511/64 541/4 X 332% X 15 11/64
(VV× H X D)
(inch) 71 _5/_ x 41%4 X 2 21/_ 62 9/64X 36 45/64x 2 9/52 54 1/4X 31 _7/_ x 2 9/52
TV + stand
TV only
TV + stand
TV only
O)eratin tem)erature 32°Fto I 104°F(0°Oto I 40°_
"1 Emergency alert messages via Cable are unreceivable.
TM
*2 Skype is available for the USB terminal. See page 11 for details.
*3 The dimensional drawings are shown on the inside back cover.
ModeI:LC-70LE757U/ Model: LC-60LE757U/
item Model: LC-80LE757U LC-70LE755U/LC-70LE750U/LC-60LE755U/LC-60LE750U/
LC-70C7500U LC-60C7500U
LCD Size 80" Class (80" Diagonal) 70" Class (691/2" Diagonal) 60" Class (601/52"Diagonal)
panel Resolution 2,073,600 pixels (1,920 x 1,080)
T%standard (CCIR) American TV Standard ATSC/NTSC System
VHF/UHF VHF 2-13ch, UHF 14-69ch
OATV 1=135ch (non=scrambled channel only)
TV Receiving DigitalTerrestrial 2-69ch
Function Channel Broadcast(SVSB)
Digital cable* 1 1-135ch (non=scrambled channel only)
(64/256 CAM)
Audio multiplex BTSC System
Audio out 10W x 2 + 15W ONF)
HDMI IN 1 HDMI in with HDCP, ARC
HDMI IN 2 HDMI in with HDCP, Audio in (© 3.5 mm stereo jack)
Back panel HDMI IN 3 HDMI in with HDCP
vertical HDMI IN 4 HDMI in with HDCP, MHL
inputs AUDIO OUT Audio out (© 3.5 mm stereo jack)
USB 1"2 Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper
COMPONENT IN COMPONENT in
VIDEO IN 1 AV in
Terminals Back panel VIDEO IN 2 AV in
surface
inputs PC IN ANALOG RGB (PC) in (15@in mini D-sub female connector),
Audio in (© 3.5 mm stereo jack)
RS-2320 9-pin D-sub male connector
ANT/CABLE 75 £2Unbalance, F Type x 1for Analog (VHF/UHF/CATV)and Digital (AIR/CABLE)
AUDIO IN Audio in (© 3.5 mm stereo jack)
Back panel
horizontal DIGITALAUDIOOUT Optical Digital audio out x 1 (POM/DoIby Digital/DTS)
inputs ETHERNET Network connector
USB 2*2 Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper
OSD language English/French/Spanish
Power Requirement AC 120 V, 60 Hz
On Mode Power 111 W 97 W 79 W
239 W 227 W 187 W
PowerOonsumption (0.1WStandbywithAO120V) (0.1WStandbywithAC120V) (0.1WStandbywithAC120V)
TV + stand 145.5 Ibs./66.0 kg 100.3 Ibs./45.5 kg 79.4 Ibs./36.0 kg
Weight
TV only 135.6 Ibs./61.5 kg 93.7 Ibs./42.5 kg 71.7 Ibs./32.5 kg
Dimensions*3 TV + stand 71 55/64X 43 5/52X 17 17/32 62 9/64X 37 49/64X 14 11/64 54 1/4 X 32 %4 X 14 11/64
ONxH xD)
(inch) TV only 71 55/64 X 41 5/64 X 2 21/64 62 9/64 X 36 45/64 X 2 9/32 54 1/4 x 31 57/64 X 2 9/32
O' eratinc terw _rature I 32_ to I 10_F/O°O to I 40°_
As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes
for product improvement wkhout prior notice. The performance specification figures indicated are nominal values of
production units. There may be some deviations from these values in individual unks.
On Mode Power Consumption is measured according to Energy Star program requirements for televisions.
(D" 56

Sharp LC-60LE857U Specifications

General

Display diagonal	60 \
LED backlighting type	Edge-Lit LED
Supported video modes	1080p
Contrast ratio (dynamic)	12000000:1
Screen format adjustments	16:9
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	Yes
3D type	Active
Built-in camera	No
Bundled software	Smart Apps, Web Browser, Web+TV Split Screen, Skype, Remote Control Apps (iOS/Android)
3D glasses quantity	2
Placement supported	Horizontal
Tuner type	Analog & digital
Number of tuners	2 tuner(s)
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
DVI port	-
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Wi-Fi standards	802.11a, 802.11b, 802.11g
Lifestyle apps	Skype
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Silver
Panel mounting interface	400 x 200 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Power consumption (typical)	187 W
Sustainability certificates	ENERGY STAR
Certification	Think Green
Package depth	203 mm
Package width	1727 mm
Package height	915 mm
Package weight	49000 g

Weight and Dimensions

Depth (with stand)	360 mm
Height (with stand)	837 mm
Weight (with stand)	40000 g
Depth (without stand)	58 mm
Width (without stand)	1378 mm
Height (without stand)	810 mm
Weight (without stand)	33000 g
