LC-70LE632U/633U
4 – 20

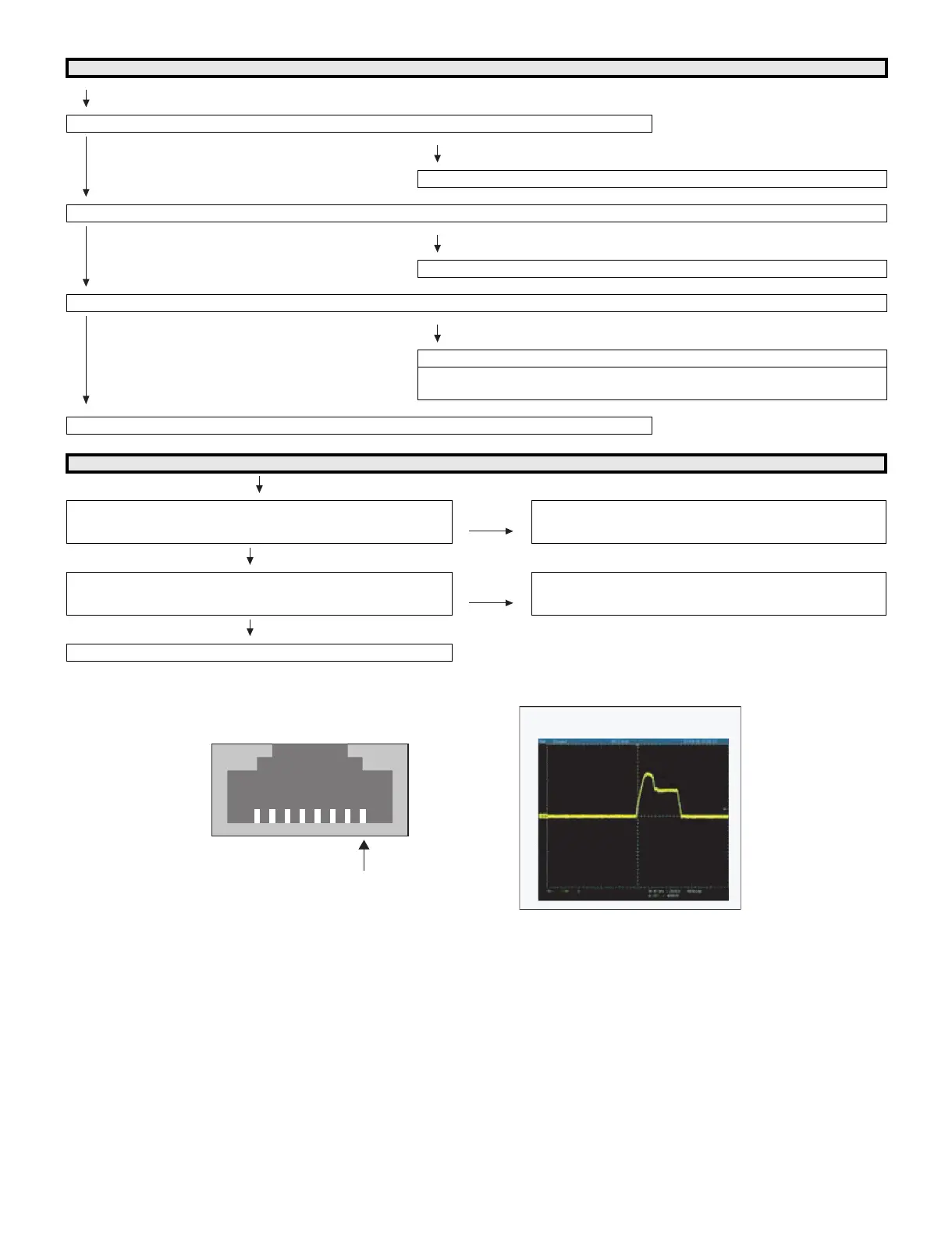

No monitor audio output
Is the audio output from the monitor set at “VARIABLE” or “FIXED” on the menu screen?
YES
NO
Check IC3303 (CPU) and its peripheral circuits.
Are there the audio signal outputs at pins (AJ31) (HP_MON_L) and (AJ32) (HP_MON_R) of IC3303 (CPU)?
YES
NO
Check IC3303 (CPU) and its peripheral circuits.
Does the audio signal come from pins (2) (MONI_HP_L) and (11) (MONI_HP_R) of IC2704 (Line-out Amplifier) to pins (3) (L) and (2) (R) of J504?
YES
NO
Check the line between IC2704 and J504 and their peripheral circuits.
Check the AUDIO_MUTE and HP_MUTE lines and its peripheral circuits (Q506,
Q510, D2711, etc.).
Check the connector (J504) and their peripheral circuits, and speakers and the Cable.
No connect network
Does the signal come to 1pin of LAN-jack J9501?
(see fig-1, fig-2)
YES Check the interface device and peripheral circuits.
(power-LED of hub, LINK-LED of hub)
NO
Does the signal come to AD32 pin of IC3303?
(see fig-2)
YES Check the line between J9501 and IC3303.
Check the LAN-jack J9501.
NO
Check IC3303 and its peripheral circuits.
LAN-jack J9501fig-1
1pin
fig-2
