[2] Precautions for assembly
1. Points to be checked and precautions when servicing the unit

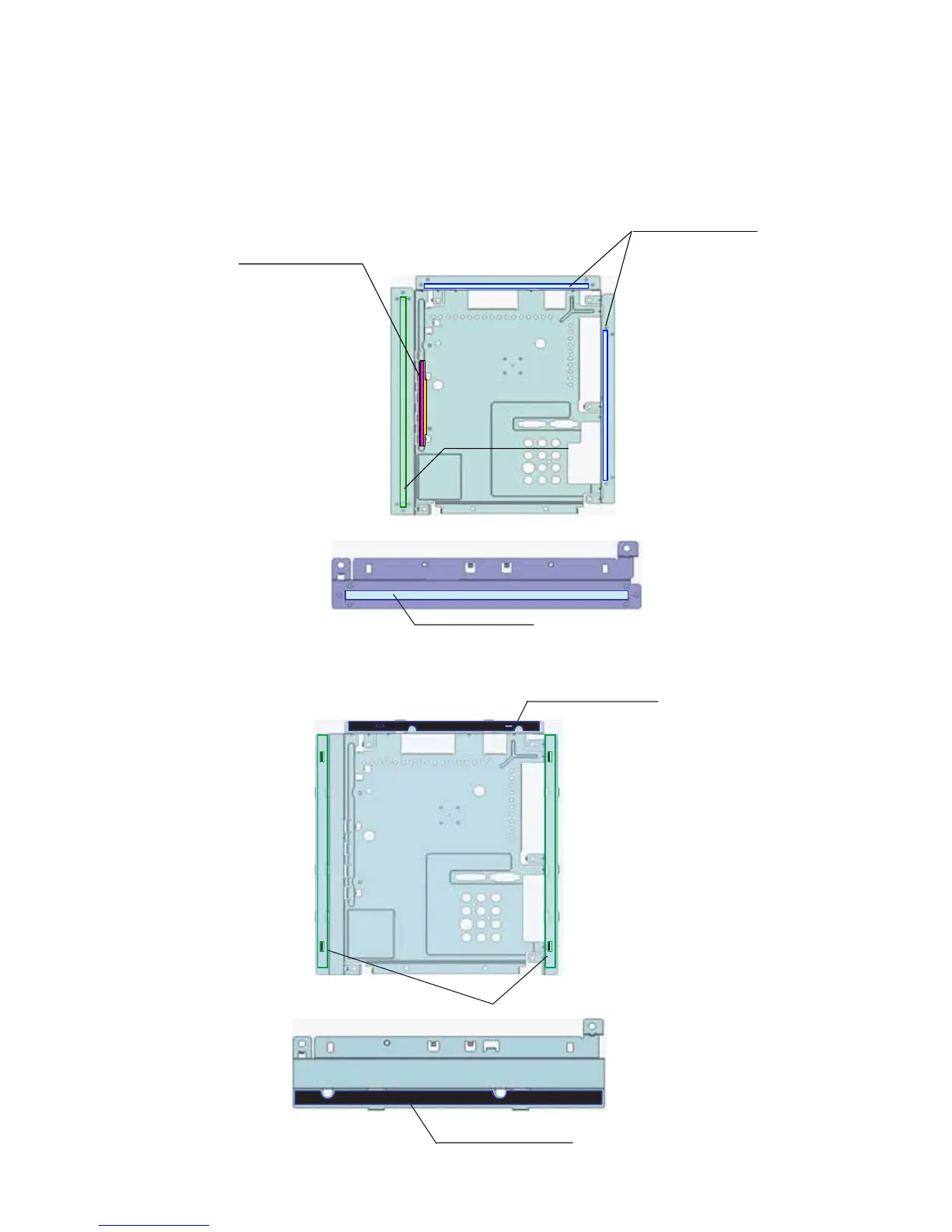

Mount the main PWB Ass’y on the backlight chassis and check that the EMI-prevention parts are not peeled and twisted from the access holes. (The
EMI-prevention parts, conductive nonwoven fabric gaskets, must be seen from the access holes.)
[Countermeasure]
Attach the conductive nonwoven fabric gaskets on the shielded case on the main PWB.
• LC-60LE740E/RU,741E/S,743E,LC-60LE840E/RU,841E/S,843E
• LC-70LE740E/RU,741E/S,743E
PSPAZC691WJZZ
PSPAZC690W JZZ
PMLT-A676W JZZ
PSPAZC691W JZZ
PMLT-A690WJQZ
PMLT-A691WJQZ
PMLT-A691WJQZ
