[3] Precautions for assembly
1. Points to be checked and precautions when servicing the unit

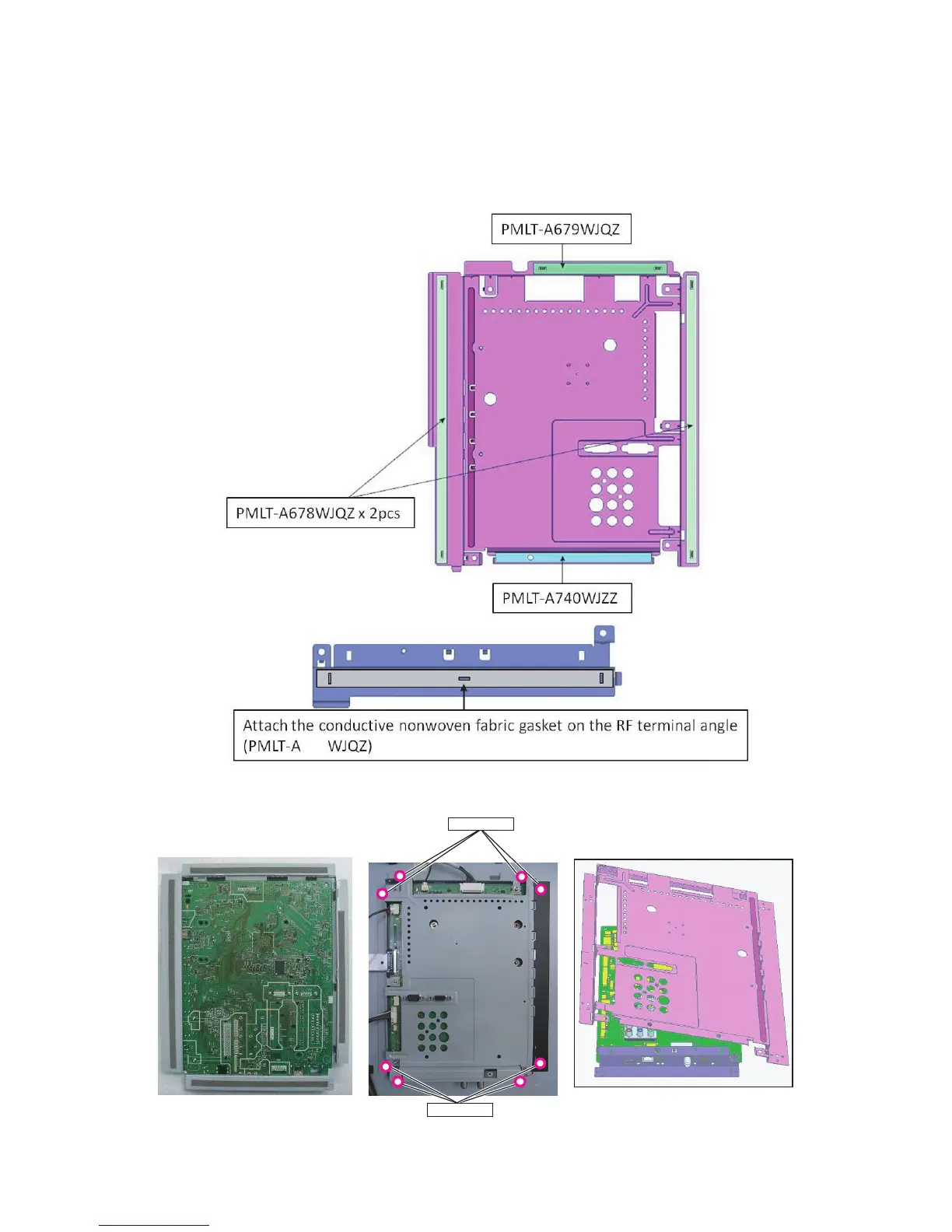

Mount the main PWB Ass’y on the backlight chassis and check that the EMI-prevention parts are not peeled and twisted from the access holes. (The
EMI-prevention parts, conductive nonwoven fabric gaskets, must be seen from the access holes.)
[Countermeasure]
Attach the conductive nonwoven fabric gaskets on the shielded case on the main PWB.
State where the main PWB and shielded case are assembled
687
Access hole
Access hole
