Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS
1. Removing of Stand Unit and Rear Cabinet Ass’y.

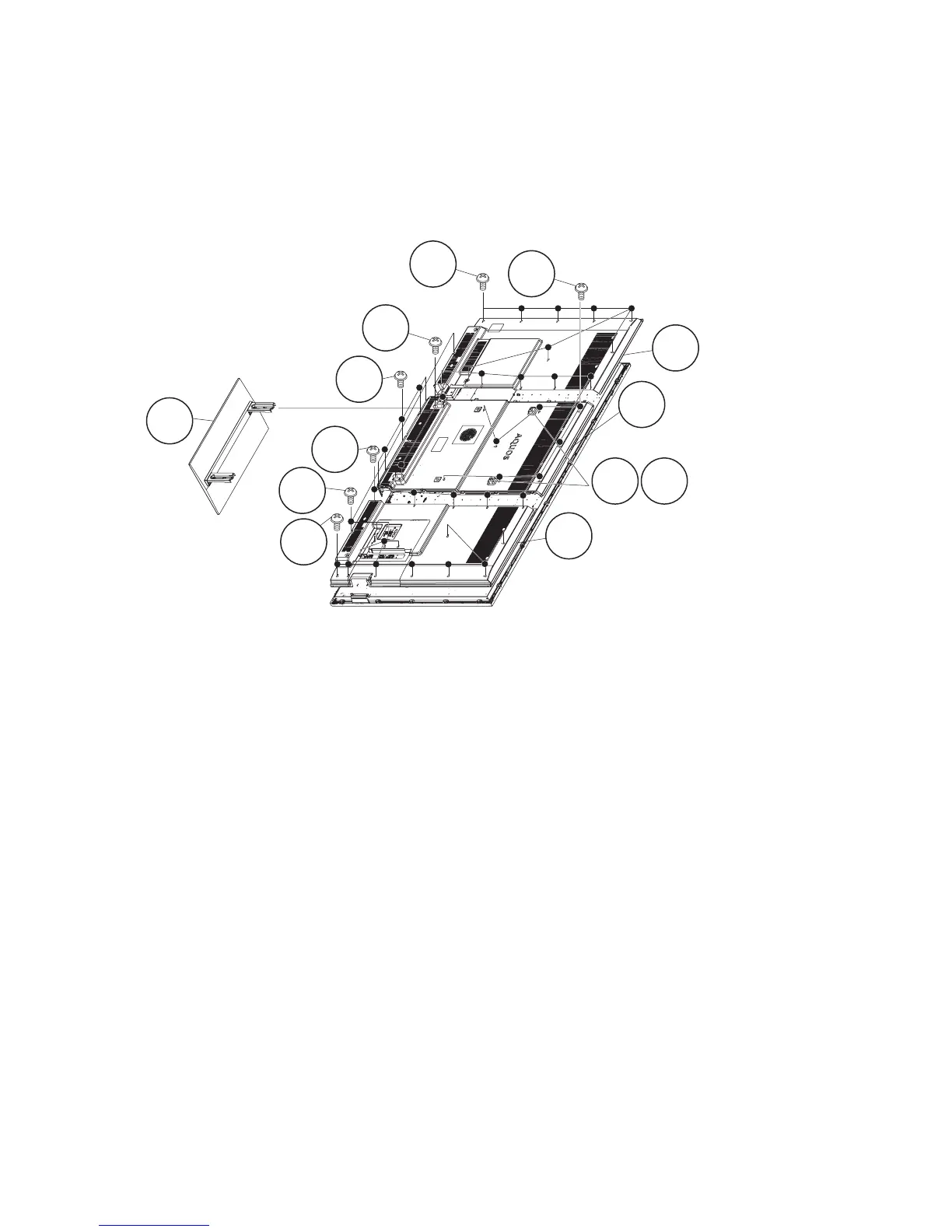

1. Remove the 4 lock screws (1) and detach the Stand Unit (2).
2. Remove the 3 lock screws (3), 20 lock screws (4), 10 lock screws (5) and detach the Rear Cabinet (L) Ass’y (6), Rear Cabinet (R) Ass’y (7).
3. Remove the 5 lock screws (8), 8 lock screws (9), 2 lock screws (10), 2 angles (11) and detach the Rear Cabinet (C) Ass’y (12).
4
3
4
5
1
2
Stand
Unit
6
Rear Cabinet (L)
Ass'y
7
Rear Cabinet (R)
Ass'y
12
10 11
Rear Cabinet (C)
Ass'y
9
8
