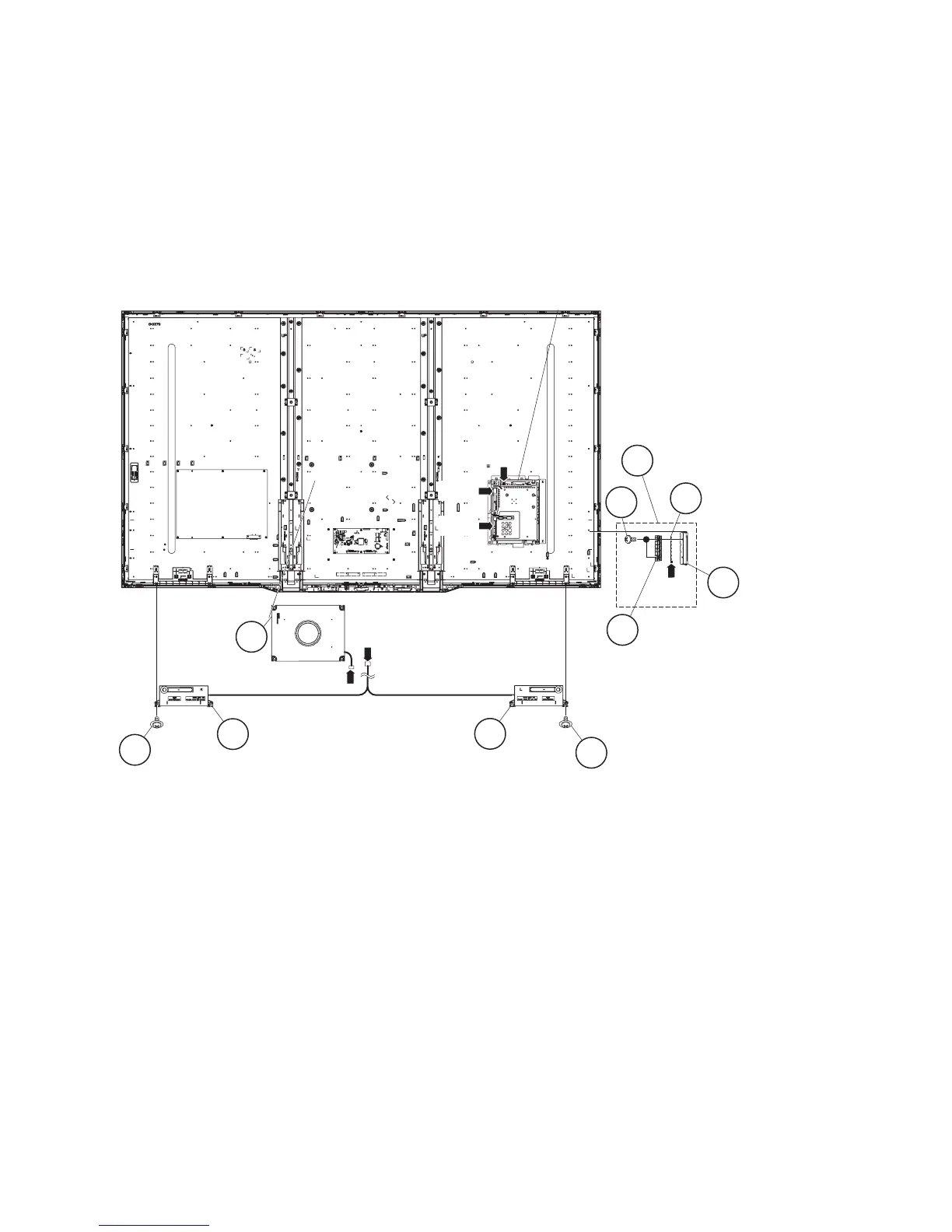

2. Removing of Speaker (L/R), Speaker (Woofer) and KEY Unit.
1. Disconnect the SP wire.
2. Remove the 2 lock screws (1) and detach the Speaker (L) (2), Speaker (R) (3).
3. Disconnect the RC wire.
4. Detach the KEY Unit Ass’y (4).
5. Disconnect the KM wire.
6. Remove the 2 lock screws (5) and detach the Key Button (6) from Key Cover (8).
7. Detach the KEY Unit (7) from Key Button (6).
8. Disconnect the SB wire.
9. Detach the Speaker (Woofer) (9).
7
5
4
8
6
Key Button
KEY Unit
KEY Unit Ass'y
Key Cover
[SP]
[KM]
[SP]
[RC]
MAIN Unit
3
1
Speaker (R)
2
1
Speaker (L)
9
Speaker
(Woofer)
[SB]
[SB]
