Sharp LC-90LE740X User Manual

LC-90LE740X
5 – 11

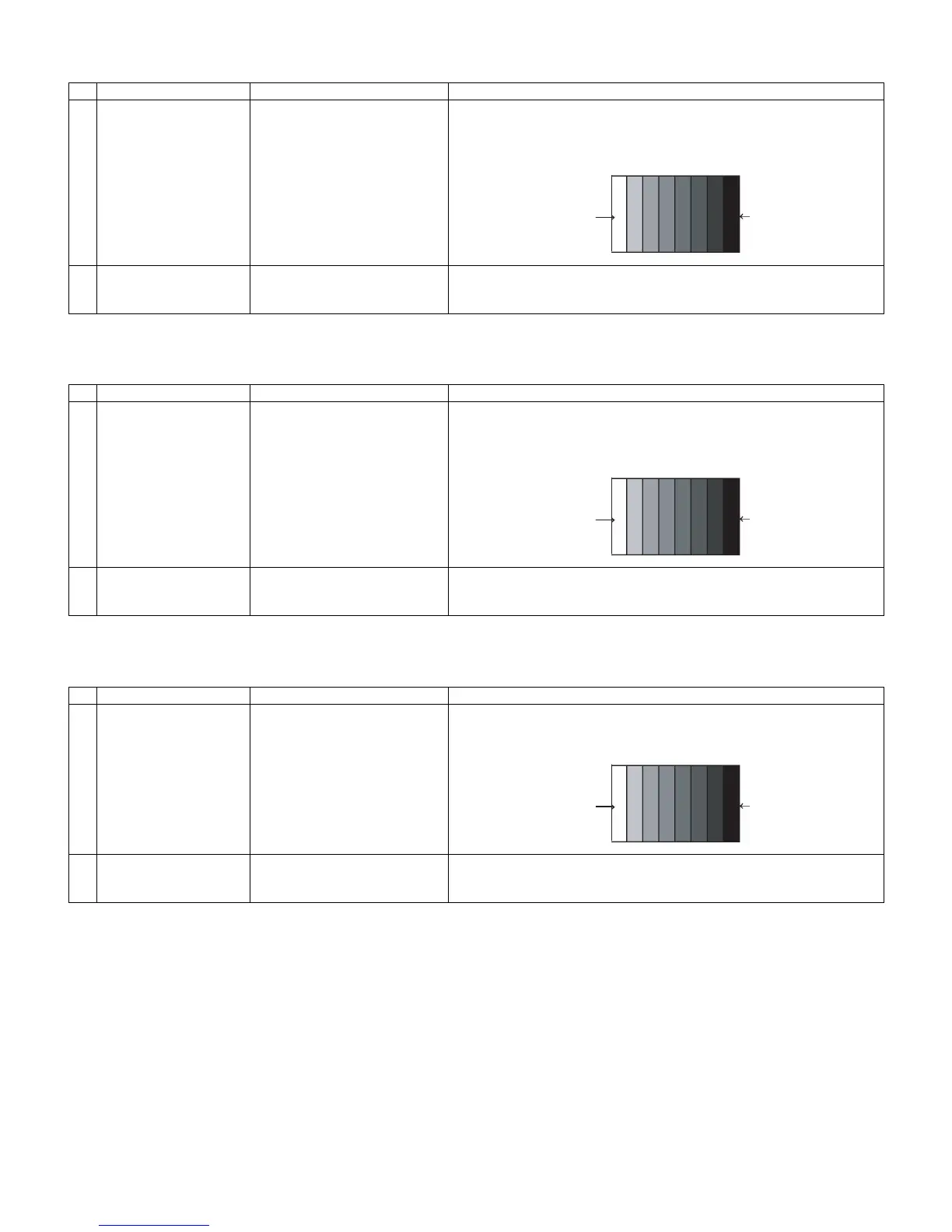

10.4. NTSC signal adjustment
10.5. SECAM adjustment
10.6. ADC adjustment (Component 15K)
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
N358
Full field colour Bar Signal
[Terminal]
INPUT6 video input
• Feed the NTSC full field colour bar signal (75% colour saturation) to
INPUT6 video input.
[VIDEO input signal]
2 Auto adjustment
performance
Adjustment process
[N358 ADJ]
page 4/20
Bring the cursor on [N358 ADJ] and press [ENTER].
[N358 ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
SECAM
Full field colour Bar Signal
[Terminal]
INPUT6 video input
• Feed the SECAM full field colour bar signal (75% colour saturation) to
INPUT6 video input.
[VIDEO input signal]
2 Auto adjustment
performance
Adjustment process
[SECAM ADJ]
page 4/20
Bring the cursor on [SECAM ADJ] and press [ENTER].
[SECAM ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
COMP15K, 50Hz (576i)
100% Full field colour bar Signal
[Terminal]
INPUT5 COMPONENT IN
• Feed the COMPONENT 15K 100% full field colour bar signal (100%
colour saturation) to INPUT5 COMPONENT IN.
2 Auto adjustment
performance
Adjustment process
[COMP15k ALL ADJ]
page 6/20
Bring the cursor on [COMP15k ALL ADJ] and press [ENTER] [COMP15k ALL
ADJ] [OK] appears when finished.
100% white B lack
100% white B lack
100% white B lack
