MX-5001N ADJUSTMENTS 5 – 70
2) Set REALTIME, STOP or PRE-SCAN to adjustment item AE
STOP COPY. For contents of each setting item, refer to below.
Change the setting value of "AE WIDTH" item to "FULL" or
"PART", in some cases.
NOTE: MODE1:
High gamma (Improves the image contrast)
MODE2:
Normal gamma
STOP:
Reads the density of 3 - 7 mm area from leading edge of
document, decides the output image density according to
the density of that part. (The output image density is con-
stant at whole area.)
REALTIME:
Reads the density of width of the document one by one,
decides the output image density according to the density
of each part of the document. (The output image density
may be not constant at whole area.)
PRESCAN:
The densities of the all surface of document are once
scanned, and the output image density is determined
according to the average of the scanned densities. (The
output image density is even for all the surface.)
AE WIDTH FULL:
Document density reading area in monochrome auto mode
is 3 - 7 mm (leading edge of document) x Document width.
No relationship to PRESCAN MODE
AE WIDTH PART:
Document density reading area in monochrome auto mode
is 3 - 7 mm (leading edge of document) x 100 mm (width).
No relationship to PRESCAN MODE
Operation in monochrome auto copy mode:
When the density of the document of the read area is light,
output image density is increased by control. When the
density of the document of the read area is dark, output
image density is decreased by control.
Display/Item Content Set value Default
AE_MODE Auto exposure
mode
MODE1,
MODE2
MODE1
AE_STOP_COPY Auto B/W exposure
Stop (for copy)
REALTIME/
STOP/
PRESCAN
STOP
AE_STOP_FAX Auto B/W exposure
Stop (for FAX)
ON/OFF
ON
AE_STOP_SCAN Auto B/W exposure
Stop (for scanner)
REALTIME/
STOP/
PRESCAN
STOP
AE_FILTER Auto exposure filter
setting
SOFT NORMAL
NORMAL
SHARP
AE_WIDTH AE exposure width FULL FULL
PART
3to7mm
3to7mm
100mm
100mm
3to7mm
Document table/DSPF mode
Document table mode
DSPF mode
AE WIDTH = FULL
AE WIDTH = PART
AE WIDTH = PART

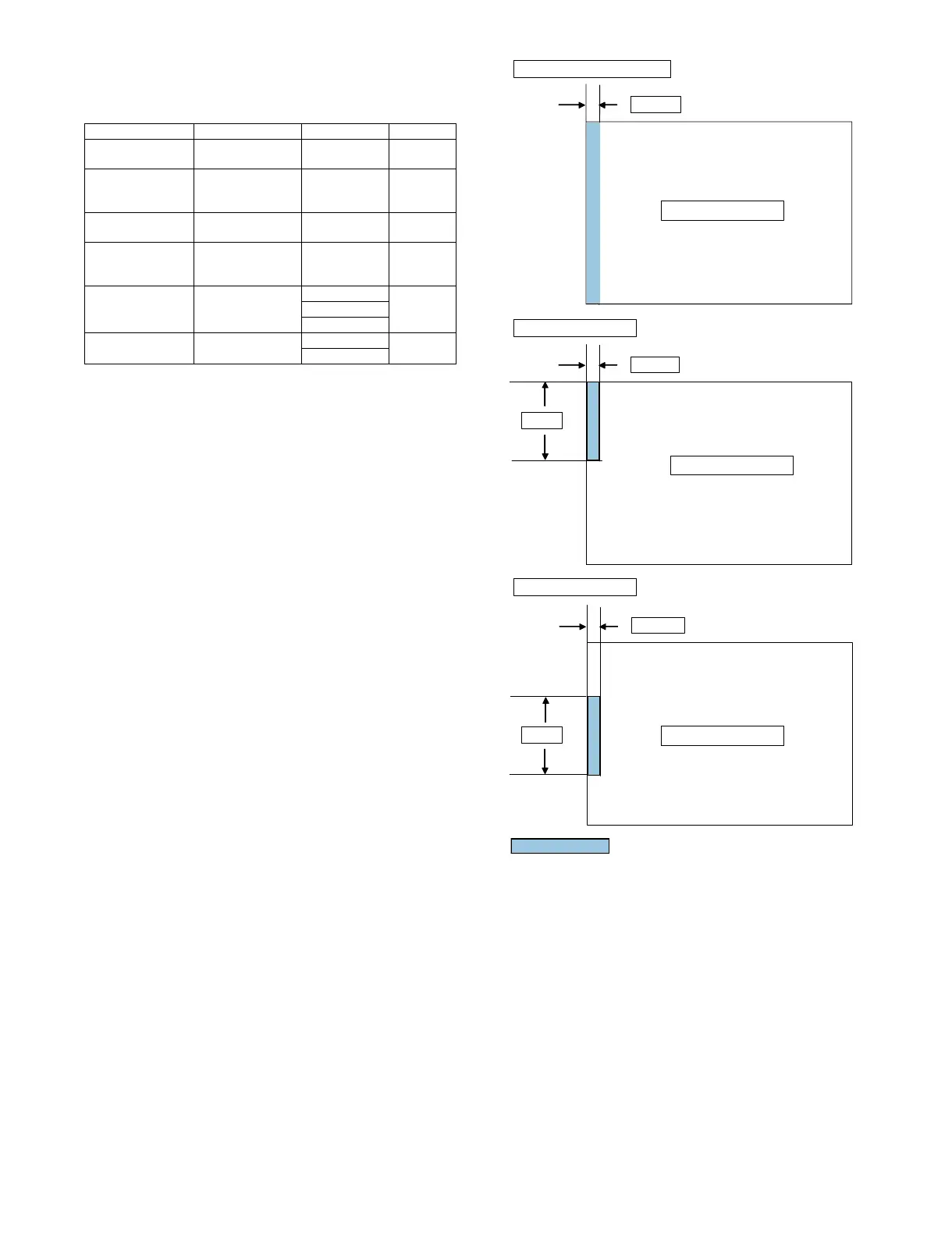

Document density detection area
