Sharp MX-4100N Service Manual

MX-5001N DSPF SECTION C – 7

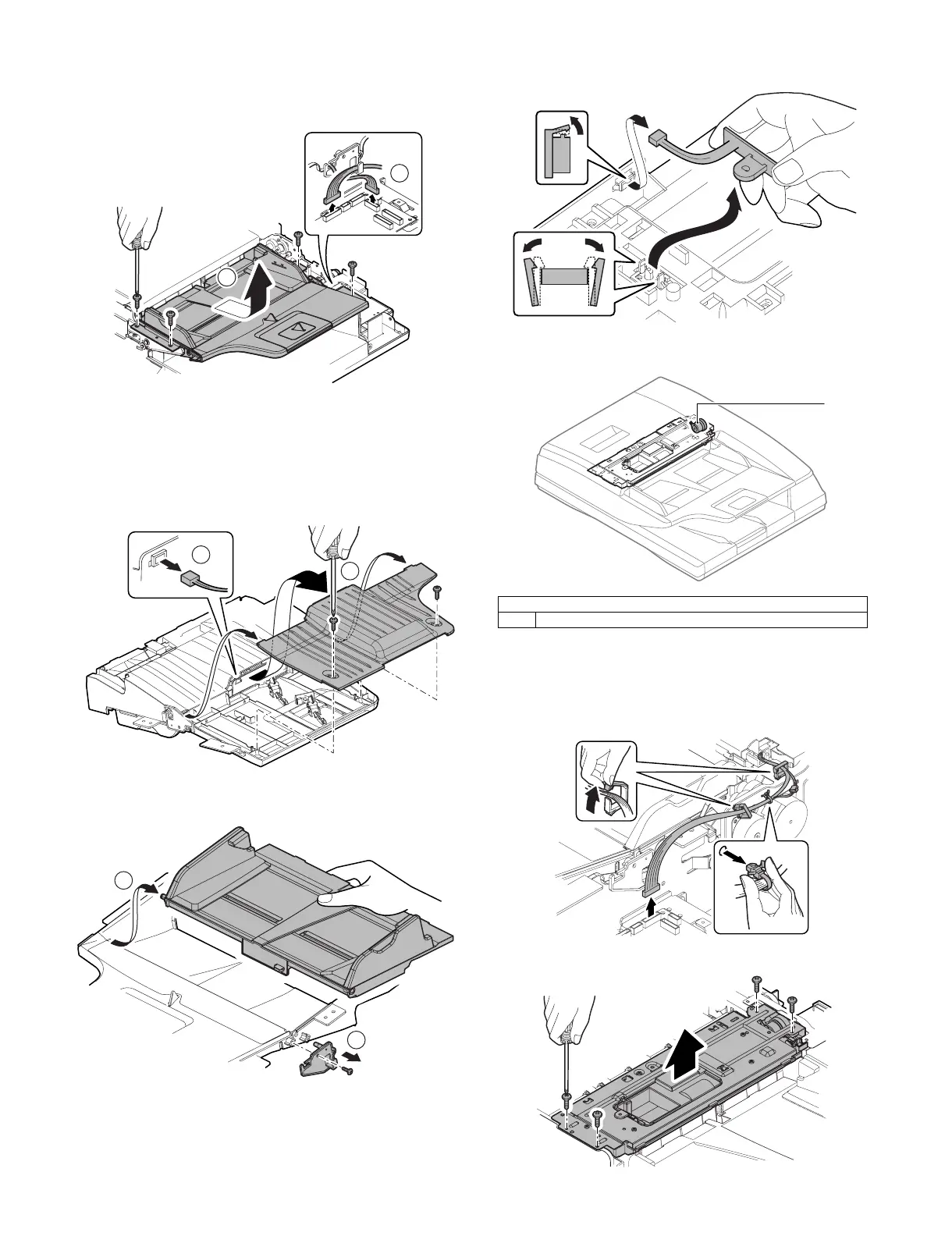

1) Remove the front cabinet.
2) Remove the rear cabinet.
3) Disconnect the connector. Remove the screw, and remove the
paper feed tray unit.
(1) DSPF document width sensor
1) Remove the front cabinet.
2) Remove the rear cabinet.
3) Remove the paper feed tray unit.
4) Remove the screw, and remove the paper feed tray lower. Dis-
connect the connector.
5) Remove the screw, and remove the rotation tray shaft.
Remove the paper feed rotation tray.
6) Disconnect the connector. Remove the pawl, and remove the
DSPF document width sensor.
C. Paper feed unit
1) Remove the front cabinet.
2) Remove the rear cabinet.
3) Remove the paper feed cover.
4) Disconnect the connector. Open the wire saddle. Remove the
snap band.
5) Remove the screw, and remove the paper feed unit.
2
1
1
2
1
2
Parts
a DSPF paper feed clutch
a
