MX3500N LSU SECTION H – 5

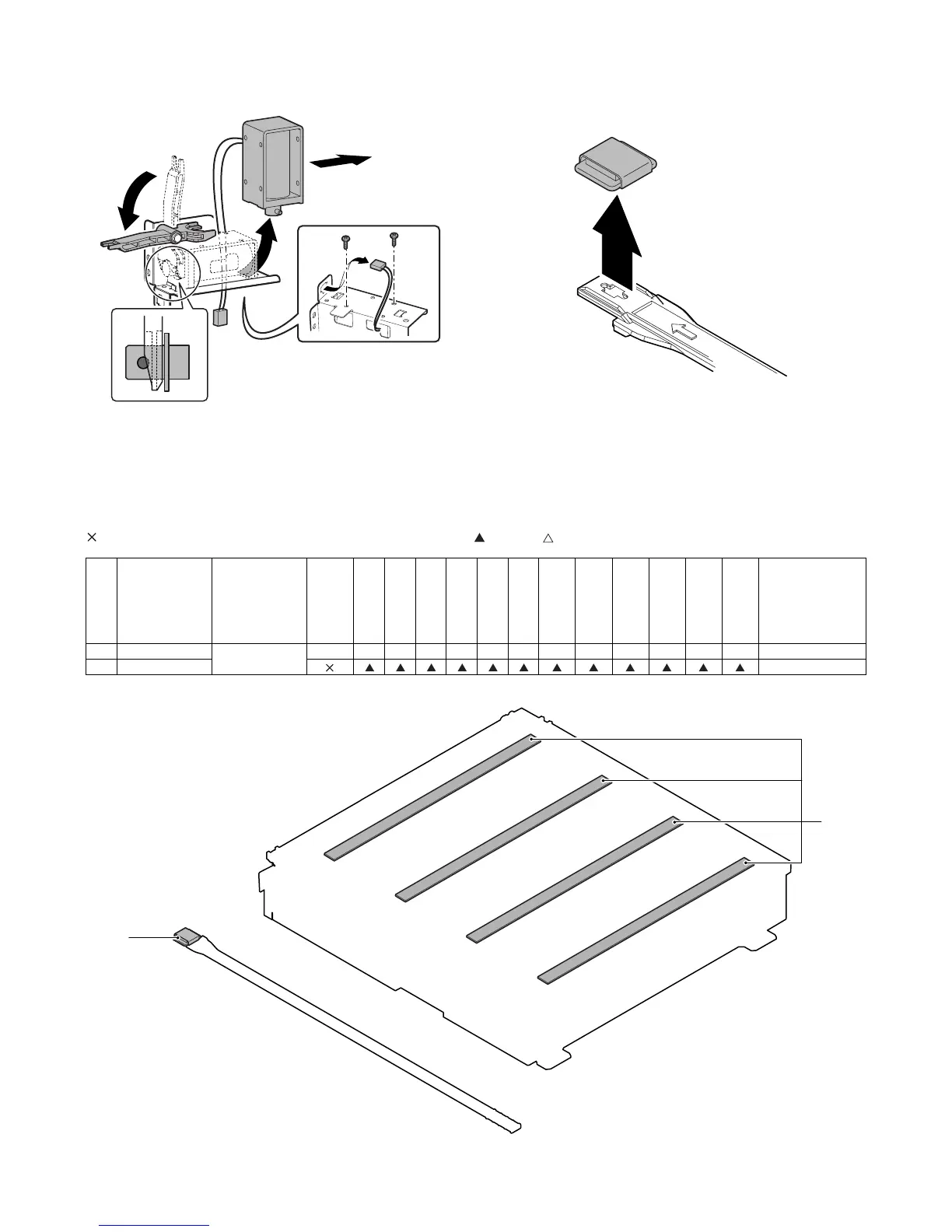

3) Remove the screws, and remove the LSU shutter solenoid 1.
* When installing, engage the solenoid pin with the shutter
lever arm.
b. Cleaning base
1) Remove the waste toner box.
2) Remove the LSU cleaning stick from the front cover.
3) Remove the cleaning base from the LSU cleaning rod.
4. Maintenance
A. LSU section
: Check (Clean, replace, or adjust according to necessity.) {: Clean : Replace : Adjust ✩: Lubricate : Shift the position.
No. Part name
Monochrome
supply/
Mechanical
parts
When
calling
150
K
300
K
450
K
600
K
750
K
900
K
1050
K
1200
K
1350
K
1500
K
1650
K
1800
K
Remark/Refer to
the Parts Guide.
Block/Item No.
(Only the
replacement parts
are described.)
1 Dust proof glass Mechanical parts { {{{{{{ { { { { { {
2 Cleaning base (P/G No.: [2]-35)
1
2
