MX3500N PHOTOCONDUCTOR SECTION i – 6

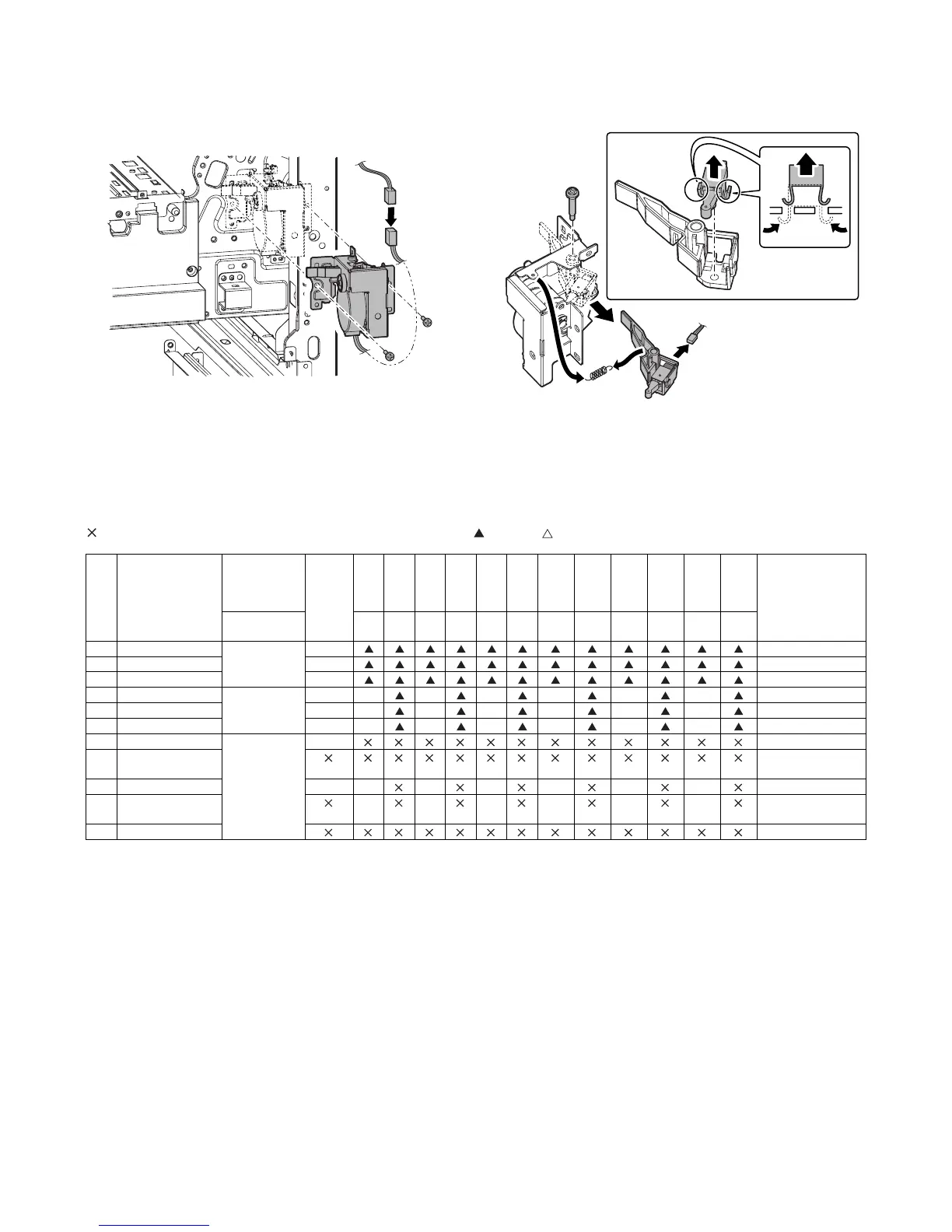

b. Waste toner full detection switch
1) Remove the frame cover. (Refer to Frame Cover in External
Outfit Section.)
2) Remove the connector and the screws, then remove the waste
toner drive unit.
3) Remove the screw and the spring, and remove the waste toner
box empty lever.
Disengage the connector and the pawl, and remove the waste
toner full detection switch.
4. Maintenance
: Check (Clean, replace, or adjust according to necessity.) {: Clean : Replace : Adjust ✩: Lubricate : Shift the position.
No. Part name
Monochrome
supply/
Mechanical
parts
When
calling
150
K
300
K
450
K
600
K
750
K
900
K
1050
K
1200
K
1350
K
1500
K
1650
K
1800
K
Remark/Refer to
the Parts Guide.
Block/Item No.
(Only the
replacement parts
are described.)
Color supply
100
K
200
K
300
K
400
K
500
K
600
K
1 Drum (BK) Monochrome
supply
2 Cleaner blade (BK) (P/G No.: [23]-14)
3 Charging unit (BK) (P/G No.: [23]-2)
4 Drum (C) Color supply
5 Cleaner blade (C) (P/G No.: [23]-14)
6 Charging unit (C) (P/G No.: [23]-2)
7 Side seal F/R (BK) Mechanical
parts
8 Toner reception
seal (BK)
9 Side seal F/R(C)
10 Toner reception
seal (C)
11 Waste toner box
To Next Page
