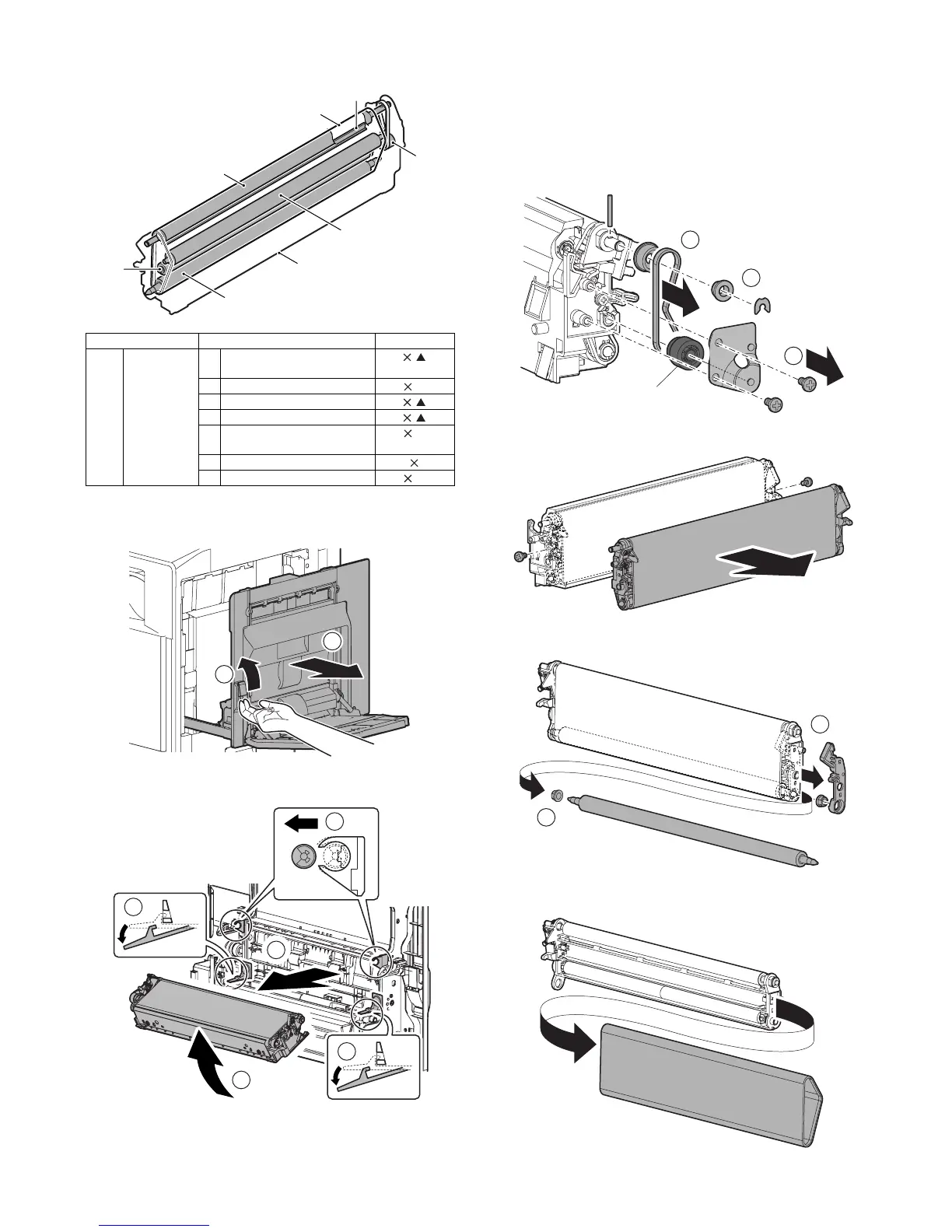

MX3500N TRANSFER SECTION L – 8
B. Secondary transfer
(1) Secondary transfer unit
1) Open the right door unit.
2) Release the pawl, and remove the secondary transfer unit.
a. Secondary trasnfer drive idle gear
b. Secondary belt follower roller
c. Secondary transfer belt
1) Remove the secondary trasnfer unit.
2) Remove each parts, and remove the secondary drive plate.
Remove each parts, and remove the secondary transfer drive
and the idle gear (A).
3) Remove the secondary belt transfer frame.
4) Remove each parts, and remove the secondary follower roller.
5) Remove the secondary transfer belt.
Unit Parts Maintenance
(1) Secondary
transfer unit
a Secondary transfer drive idle
gear
b Secondary belt follower roller {
c Secondary transfer belt
d Secondary transfer roller
e Secondary trasnfer belt drive
roller
{
f Belt CL brush
g Secondary belt tension roller {
(1)-a
(1)-g
(1)-f
(1)-b
(1)-d
(1)-e
(1)-c
(1)
1
2
1
1
2
3
3
1
2
3
A
1
2
