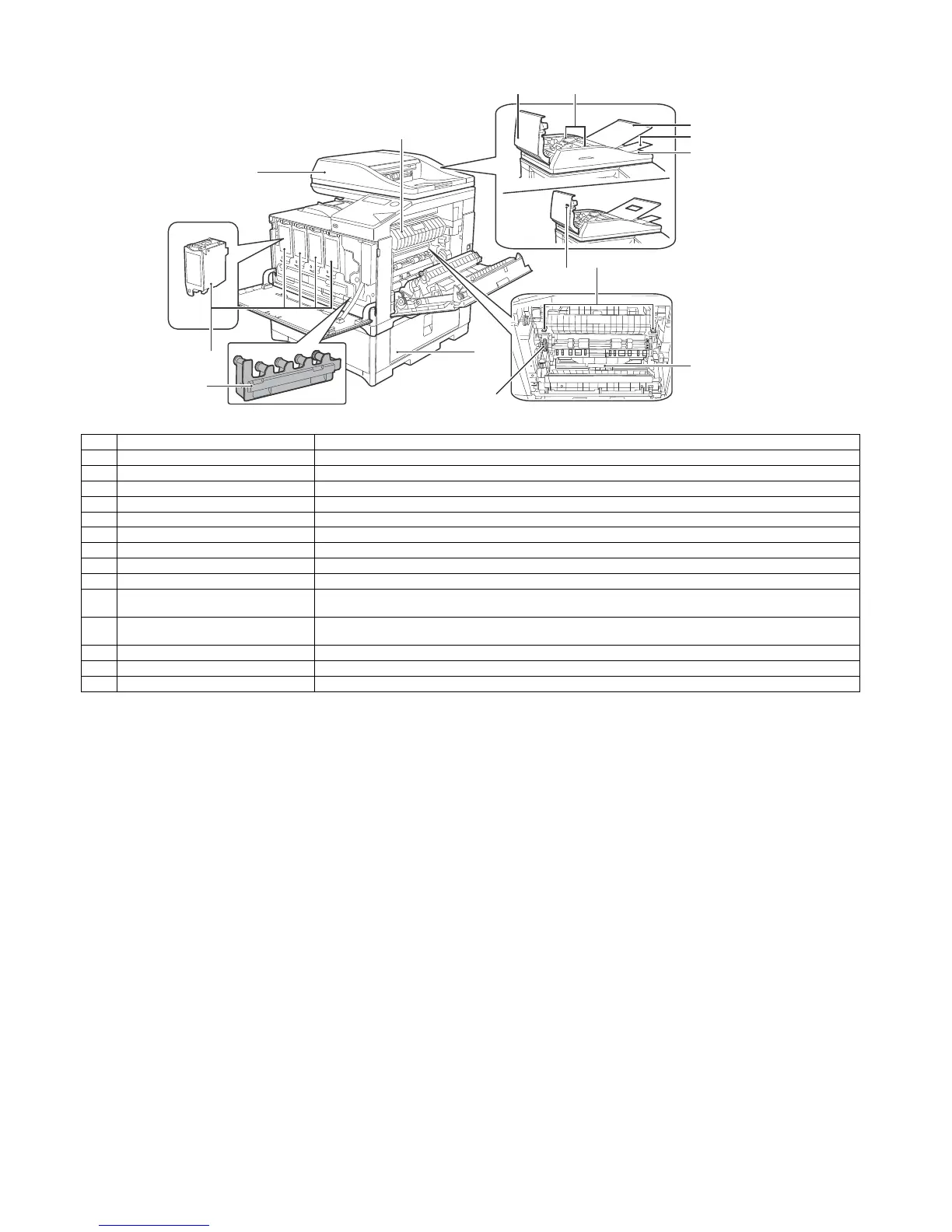

MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 2
B.Document feeder and document glass
No. Name function/Operation
1 Toner cartridge (Y/M/C/Bk) Contains toner. When the toner runs out in a cartridge, the cartridge of the colour that ran out must be replaced.
2 Document feeder Place the original(s) that you wish to scan face up here. Up to 50 sheets can be placed.
3 Toner collection container This collects excess toner that remains after printing.
4 Feeding roller cover Open to remove misfed originals.
5 Original guides Adjust to the size of the originals.
6 Original feed tray Place original documents for scanning on the original feed tray.
7 Tray extension Open this when you scan a long original.
8 Exit area Exit Tray which stacks original scanned documents.
9 Fusing unit paper guide Open to remove misfed paper.
10 Viewing hole Use the viewing hole (see the illustration at right) to check the position of the original. (Models with the one-
sided scanning function only)
11 Fusing unit release levers Push down these levers to release the pressure when removing misfed paper from inside the
fusing area or when feeding an envelope from the bypass tray.
12 Roller rotating knob Rotate to remove misfed paper.
13 Paper tray right side cover Open this to remove a paper misfeed in trays.
14 Duplex conveyor cover Open this cover to remove a misfeed.
