MX-C250 OPERATIONAL DESCRIPTIONS 11 – 1
MX-C250
Service Manual
[11] OPERATIONAL DESCRIPTIONS
1.Operation panel

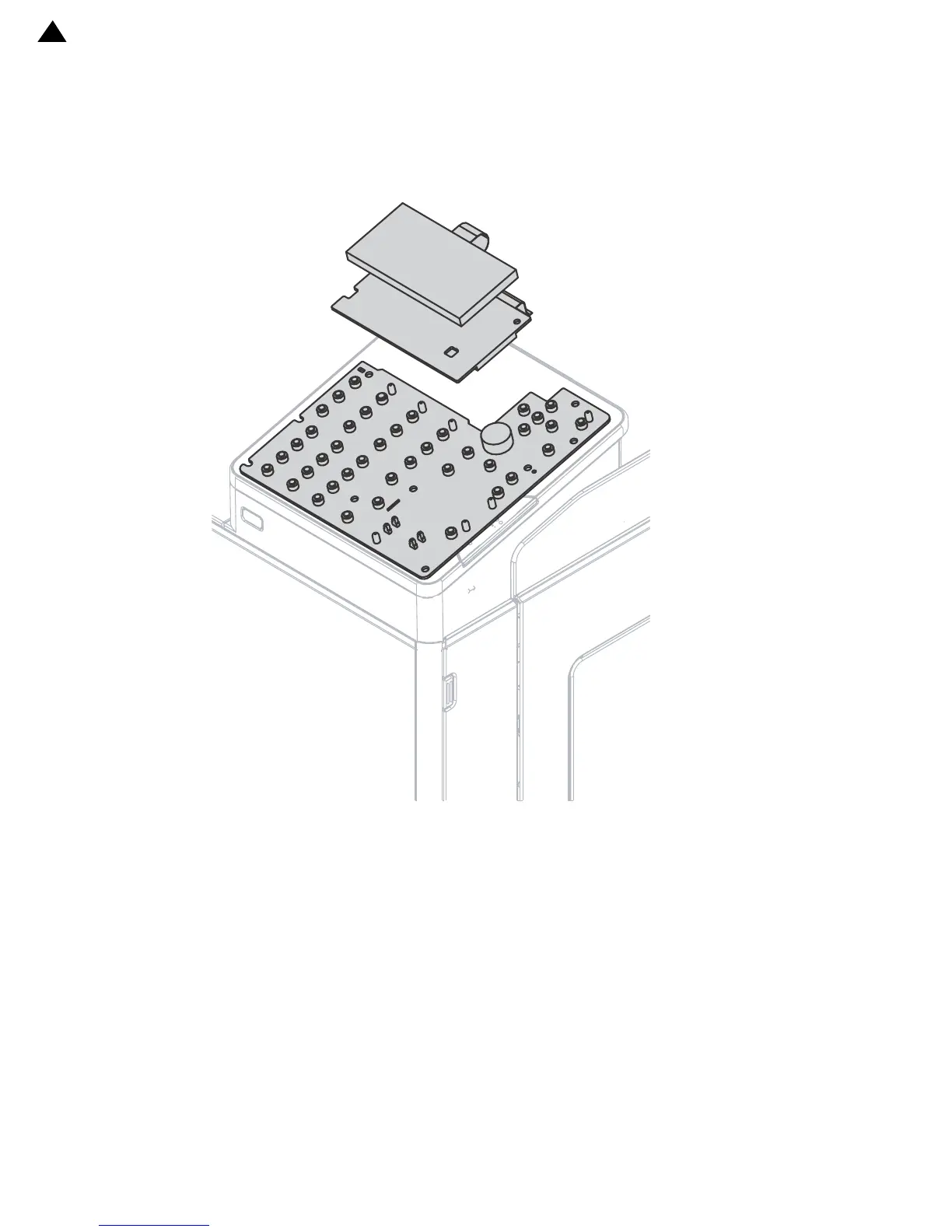

A.Electrical and mechanism relation diagram
B.Operational descriptions
The operation panel of this model is structured LCD with Back-light,
LCD-PWB, KEY-LED PWB and operation keys. Because of the
touch panel function is not equipped; the operation is executed by
key on the operation panel.
And also, the adjustment of LCD brightness by hardware (volume
and so on) is not equipped.
LCD
LCD PWB
KEY PWB
2
‘13/Oct
