MX-C250 OPERATIONAL DESCRIPTIONS 11 – 24

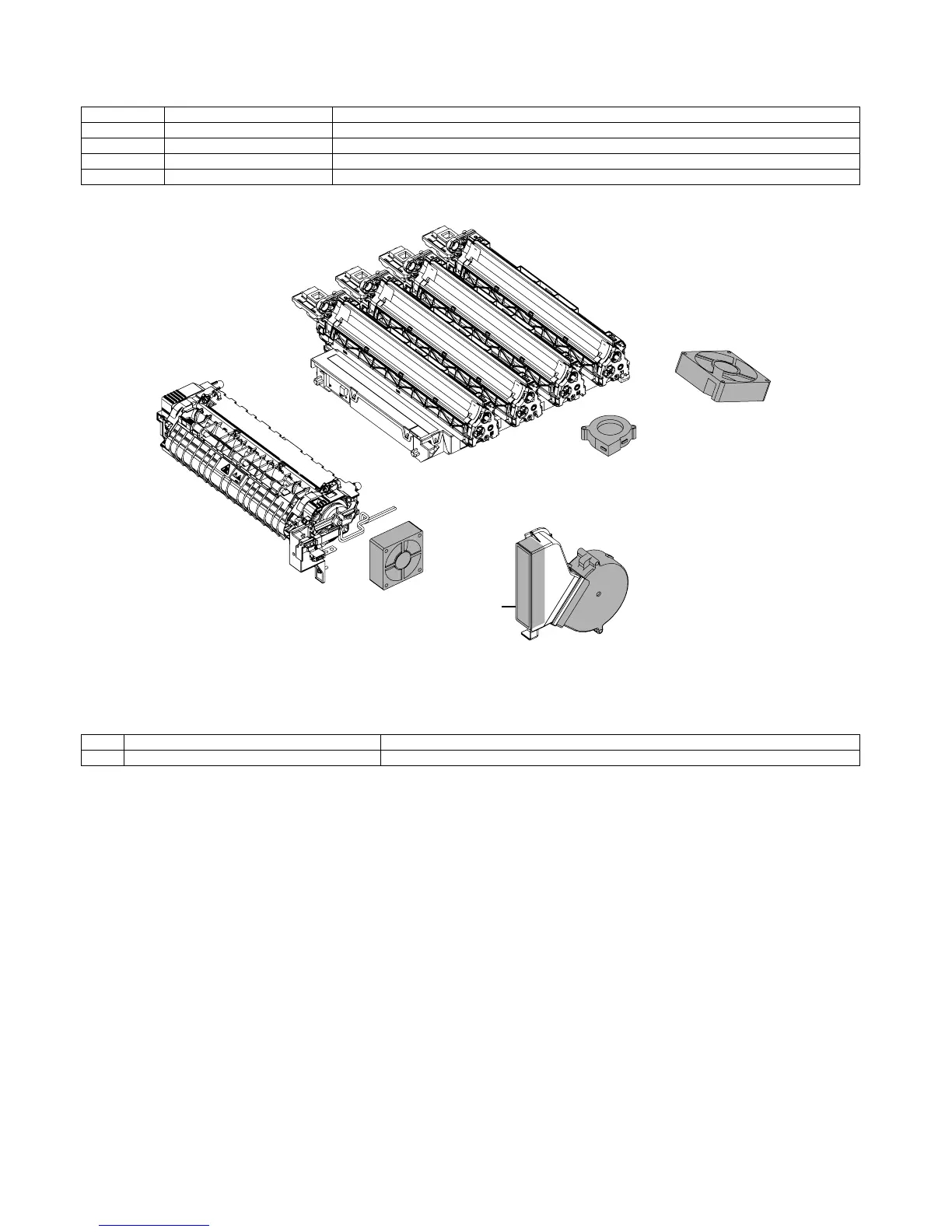

15. Fan and Filter section
The machine is provided with the following fan to discharge air from the process section and cool the fusing section and the power unit.
The machine is provided with the following filter to remove ozone generated in the process section.
Signal name Name Function/Operation
FUFM Fusing cooling fan Cools the fusing section.
OZFM1 Ozone fan 1 Cools the developing unit generates the ozone from the main charger unit.
PSFM Power cooling fan motor Cools the power unit.
LSUFM LSU cooling fan Cools the LSU.
No. Name Function/Operation
1 Ozone filter Absorbs ozone generated in the image process section.
To Next Page
