ROUTINE MAINTENANCE

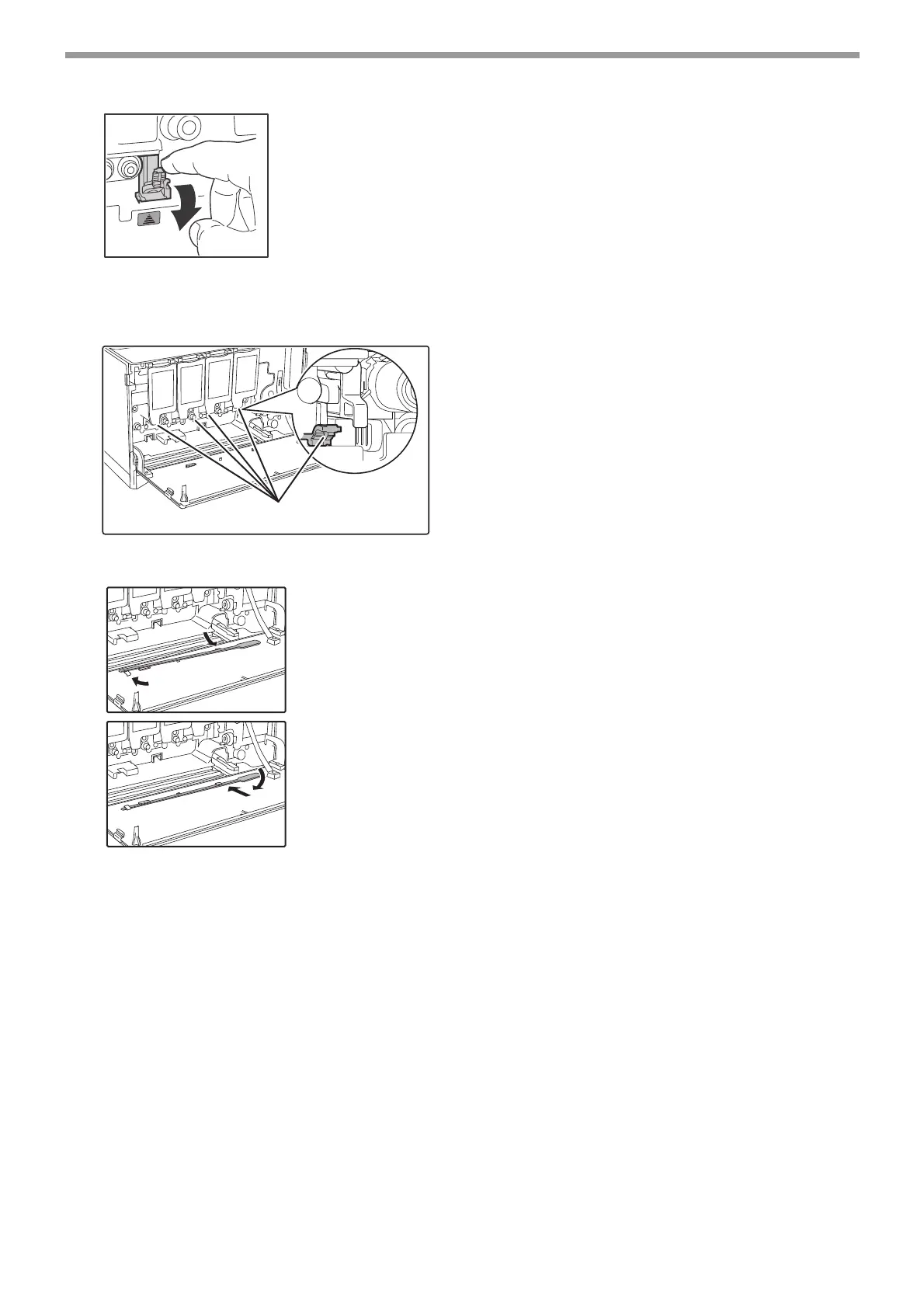

(4) Push down and close the laser unit cover.
5
Repeat step 4 to clean all holes in the laser unit (4 holes).
There are a total of 4 places to be cleaned in the laser unit, including the hole cleaned in step 4. Clean all holes.
6
Replace the cleaning tool.
(1) Rotate the cleaning tool after putting it on the boss and hook its
edge (the side that does not have a handle) to the claw on the left
side. Hook the cleaning tool with the clean side face up.
(2) Place the right-hand side of the cleaning tool on the inner side,
spread across the top of the claw.
(3) Hook the cleaning tool to the claw.
7
Procedure of "REPLACING THE TONER COLLECTION CONTAINER" (p.76), push the
toner collection container into the machine.
