TROUBLESHOOTING AND MAINTENANCE
2

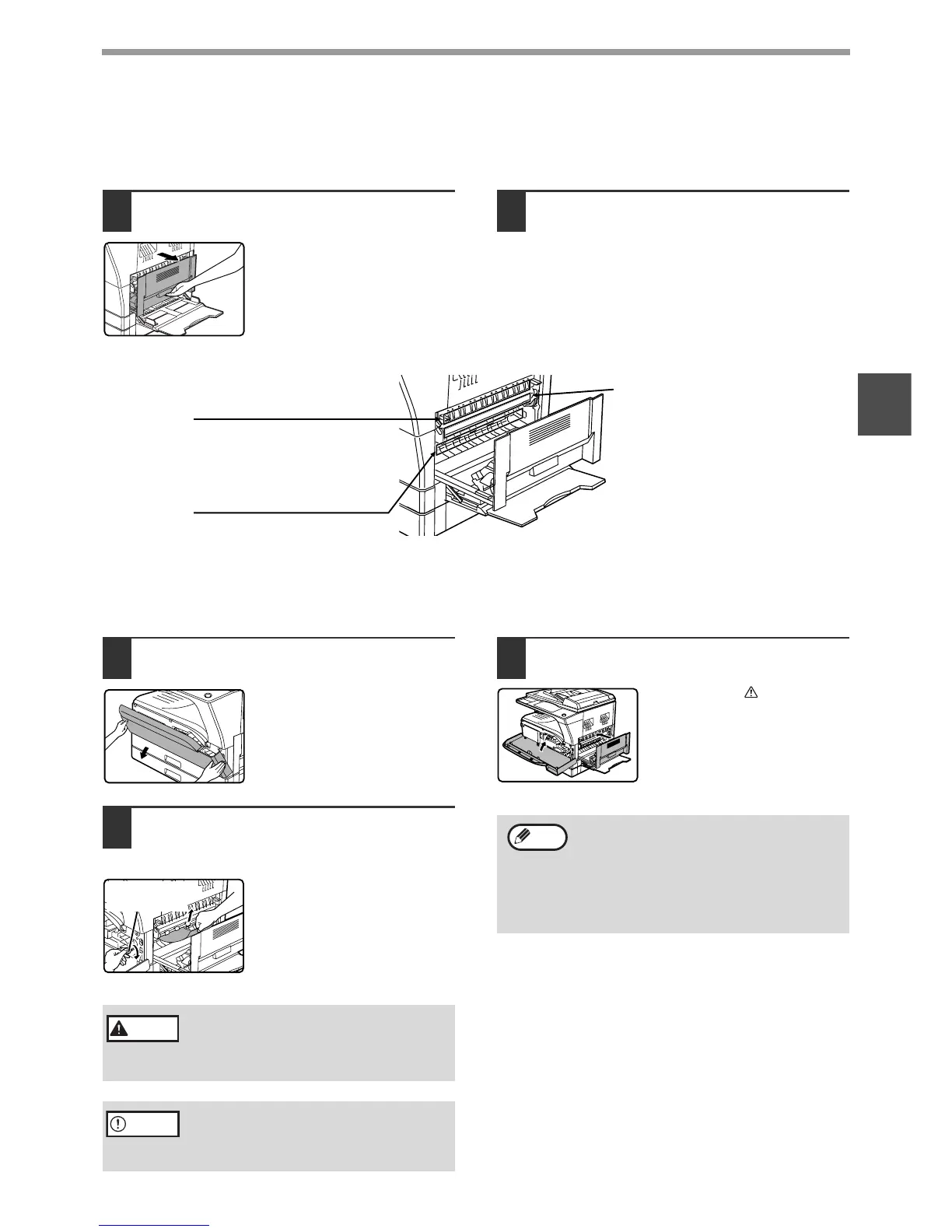

MISFEED IN THE MACHINE
To remove a paper misfeed from the machine, the bypass tray and then the side cover must be opened. Check
whether the misfeed occurred in A, B, or C below and then follow the misfeed removal procedure for that location.
1
Open the bypass tray and then the
side cover.
2
Determine where the misfeed
occurred.
Misfeed in A
1
Open the front cover.
Push gently on both ends of the
front cover to open it.
2
Turn the roller rotating knob in the
direction of the arrow to remove the
misfed paper.
Be careful not to tear the misfed
paper during removal.
3
Close the front cover and the side
cover.
The message " Clear paper
path." will be cleared and
copying will be possible.
Location B
If paper is misfed here, go to
"Misfeed in B" (page 32).
Location C
If paper is misfed here, go to "Misfeed in C"
(page 33).
Location A
If paper is misfed here, go to "Misfeed in A"
(below).
The fusing unit is hot. Do not touch
the fusing unit when removing
misfed paper. Doing so may cause a
burn or injury.
Do not touch the photoconductive drum
(green portion) when removing the misfed
paper. Doing so may damage the drum and
cause smudges on copies.
Roller rotating
knob
Warning
Caution
• When closing the front cover, gently hold
both ends.
• When closing the side cover, hold the
handle.
• If the message does not clear, check
again to make sure that no pieces of
paper remain.
Note
