1-6
BEFORE USING THE MACHINE
Contents

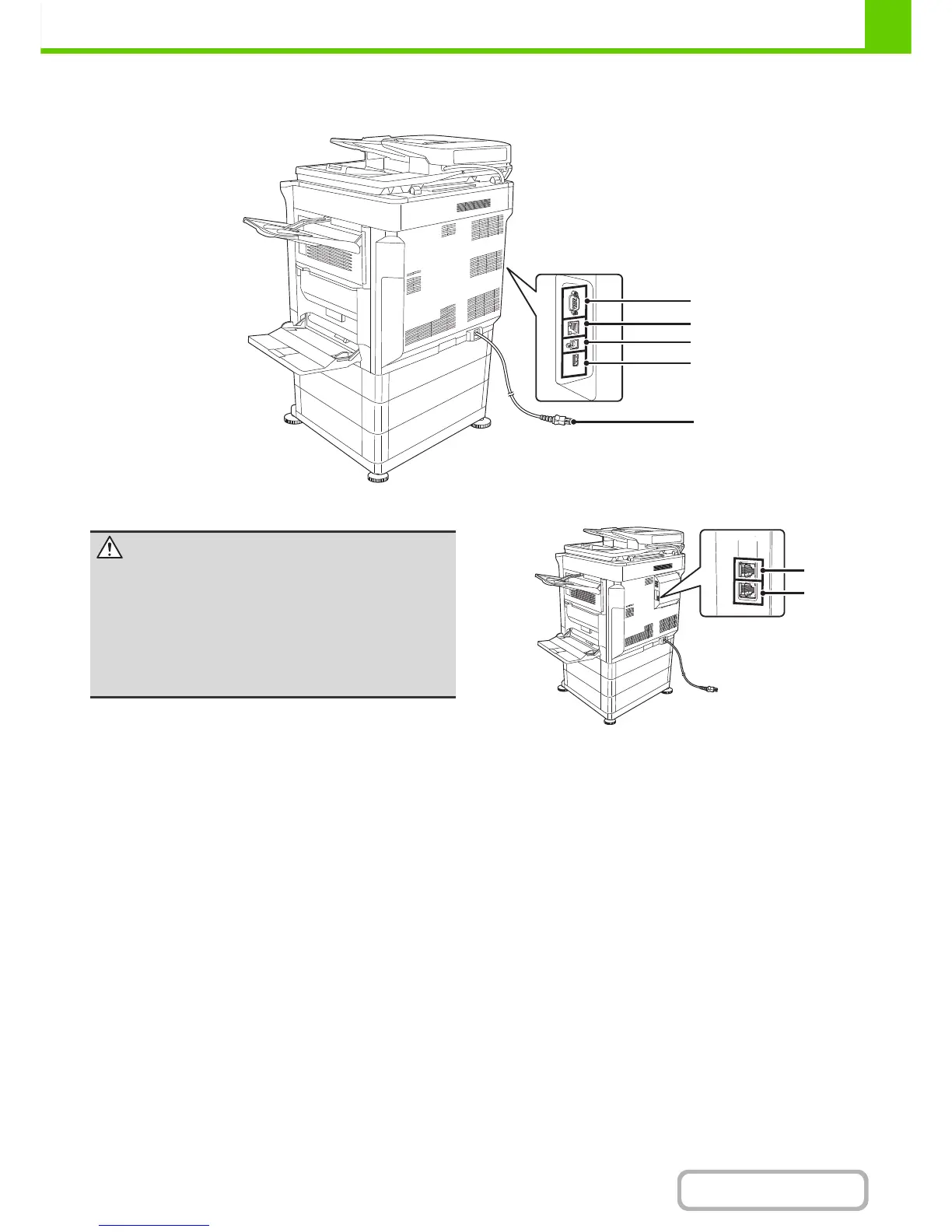

SIDE AND BACK
(1) Service-only connector
(2) LAN connector
Connect the LAN cable to this connector when the
machine is used on a network.
For the LAN cable, use a shielded type cable.
(3) USB connector (B type )
Supports USB 2.0 (Hi-Speed).
A computer can be connected to this connector to use
the machine as a printer.
For the USB cable, use a shielded cable.
(4) USB connector (A type)
Supports USB 2.0 (Hi-Speed).
This is used to connect a USB device such as USB
memory to the machine.
(5) Power plug
(6) Extension phone jack
When the fax function of the machine is used, an
extension phone can be connected to this jack.
(7) Telephone line jack
When the fax function of the machine is used, the
telephone line is connected to this jack.
When the fax expansion kit is installed
(1)
(2)
(3)
(4)
(5)
Caution
This connector is for use only by service technicians.
Connecting a cable to this connector may cause the
machine to malfunction.
Important note for service technicians:
The cable connected to the service connector must be
less than 118" (3 m) in length.
(6)
(7)
