Part Names and Functions (Continued)
Numbers in Z refer to the main pages in this operation manual where the
topic is explained.
2
3
4
8
10
11
6
7
9
12
13
14
16
18
20
21
22
19
17
5
15

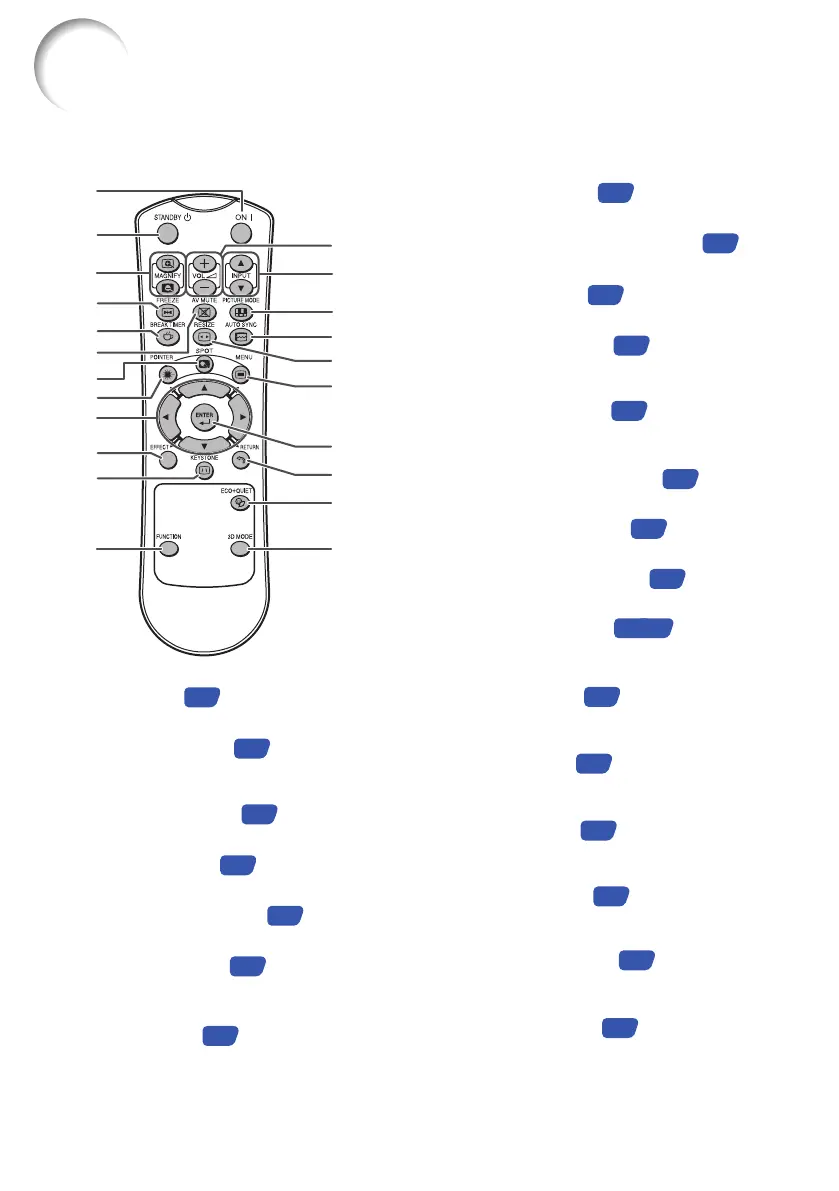

Adjustment buttons (P/R/O/Q)
39
For selecting and adjusting menu items.
9
ON button
25
For turning the power on.
1
STANDBY button
25
For putting the projector into the Standby
mode.
2
BREAK TIMER button
34
For displaying the break time.
5
MAGNIFY buttons
35
For enlarging/reducing part of the image.
3
POINTER button
34
For displaying the pointer.
8
INPUT buttons (P/R)
29
For switching Input mode.
14
EFFECT button
34
For changing the pointer or spot area.
10
KEYSTONE button
28
For entering the Keystone Correction
mode.
11
AUTO SYNC button
35, 50
For automatically adjusting images when
connected to a computer.
16
FUNCTION button
53
For operating and executing a function
assigned to “FUNCTION Button”.
12
ECO+QUIET button
34
For lowering the noise of the cooling fan
and extending the lamp life.
21
FREEZE button
35
For freezing images.
4
AV MUTE button
29
For temporarily displaying a black screen
and turning off the sound.
6
VOL +/– (Volume) buttons
29
For adjusting the speaker sound level.
13
SPOT button
34
For displaying the spotlight.
7
ENTER button
39
For setting items selected or adjusted on
the menu.
19
RETURN button
39
For returning to the previous menu screen
during menu operations.
20
MENU button
39
For displaying adjustment and setting
screens.
18
RESIZE button
30
For switching the picture size (NORMAL,
16:9, etc.).
17
3D MODE button
59
For displaying the 3D MODE menu screen.
22
PICTURE MODE button
35
For selecting the appropriate picture.
15
