Sharp PN-80TH5 Setup Manual

ENGLISH
5
E

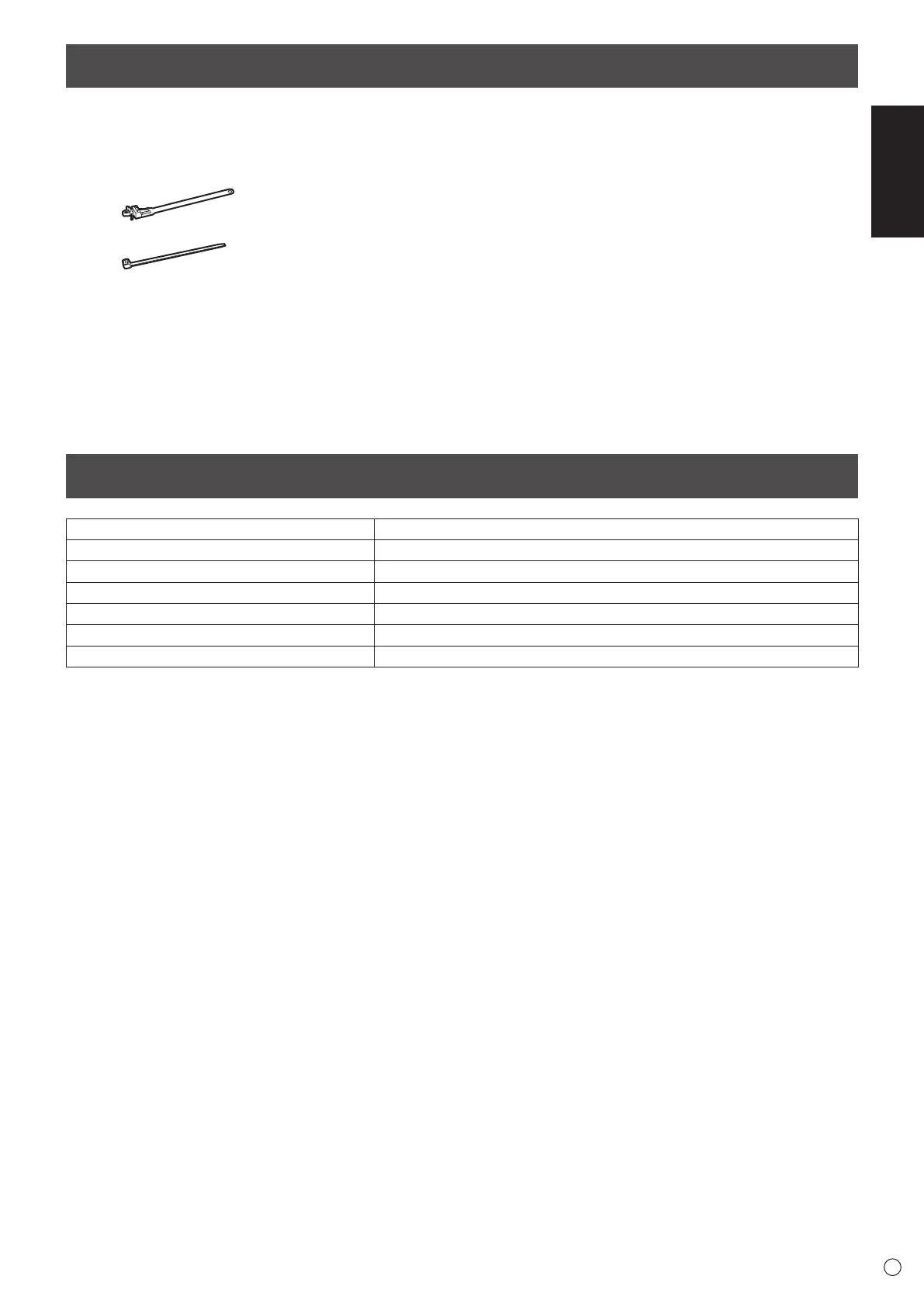

Supplied Components
If any components are missing, please contact your dealer.

Liquid Crystal Display Monitor: 1

Remote control unit: 1

Cable clamp (insertion type): 4

Cable clamp: 3

Power cord

Remote control unit battery
(LR03 (“AAA” size)): 2

CD-ROM (Utility Disk): 1

SHARP Display Connect License: 1

Setup Manual (this manual): 1

Touch pen (for capacitive touch panel)
(PN-ZL06): 2

Touch pen adapter (PN-ZL05): 1

Pen tip for touch pen
(for capacitive touch panel): 4

Touch pen battery
(LR03 (“AAA” size)): 2

Tray: 1

Speaker cover: 2

USB cable: 1

RS-232C conversion cable
(3.5mm mini stereo jack): 1

Eraser (for capacitive touch panel): 1

Camera mount: 1

Camera screw (inch thread): 1

Speaker cover attachment screws (M3)/
Camera mount screws (M3): 6

Touch pen adapter screw (Step screw, M3): 1

Vertical sticker (Logo): 1

Cover SHARP logo: 1
Place this sticker onto the SHARP logo to cover
the logo.
* SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.
* For environmental protection!
Do not dispose of batteries in household waste. Follow the disposal instructions for your area.
Specications
Model PN-80TH5
Power requirement AC 100 V - 240 V, 3.7 A, 50/60 Hz
Operating temperature
*
1
41°F to 95°F (5°C to 35°C)
Operating humidity 20% to 80% (no condensation)
Power consumption 325 W
Dimensions (excluding protrusions) inch (mm)
Approx. 73-3/8 (W) x 3-7/8 (D) x 42-15/16 (H) (1863 x 98 x 1090)
Weight lbs. (kg)
Approx. 160.9 (73)
*1 Whenusingthismonitorlayingatonasurface(whenthemonitoristiltedmorethan20degreesupwardfromtheperpendicularinrelationto
a level surface), use this monitor at the ambient temperature between 41°F (5°C) and 86°F (30°C).
Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP.
Insuchcases,pleasecheckthetemperatureconditionspeciedbytheoptionalequipments.
* This monitor should not be mounted flat or used as a touch table type installation. Please consult an authorized SHARP dealer before
considering any type of flat installation (when the monitor is tilted more than 20 degrees upward from the perpendicular in relation to a level
surface), and find out about the mandatory flat mounting instructions.
Asapartofourpolicyofcontinuousimprovement,SHARPreservestherighttomakedesignandspecicationchangesforproductimprovement
withoutpriornotice.Theperformancespecicationguresindicatedarenominalvaluesofproductionunits.Theremaybesomedeviationsfrom
these values in individual units.
